1.358 Mesh High Security Fence Non-climb Fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening:
3" x 0.5" x 8 gauge - approximate to 76.2mm × 12.7mm × 4mm mesh opening.
3" x 0.5" x 10 gauge - approximate to 76.2mm × 12.7mm × 3mm mesh opening.

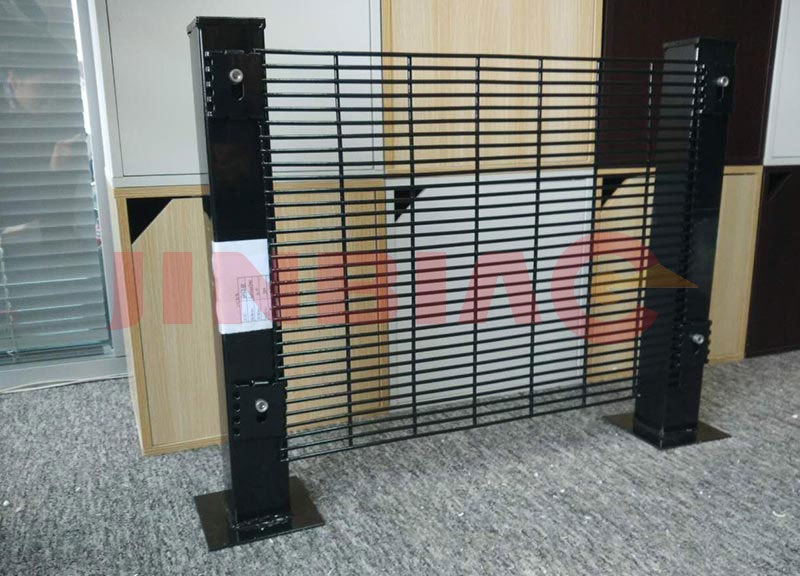

2. 358 Mesh High Security Fence Non-climb Fence - Panel:

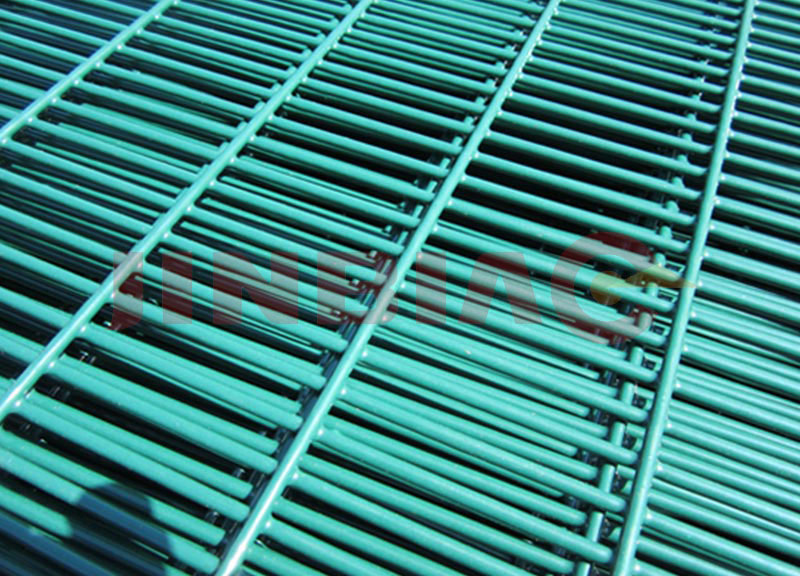

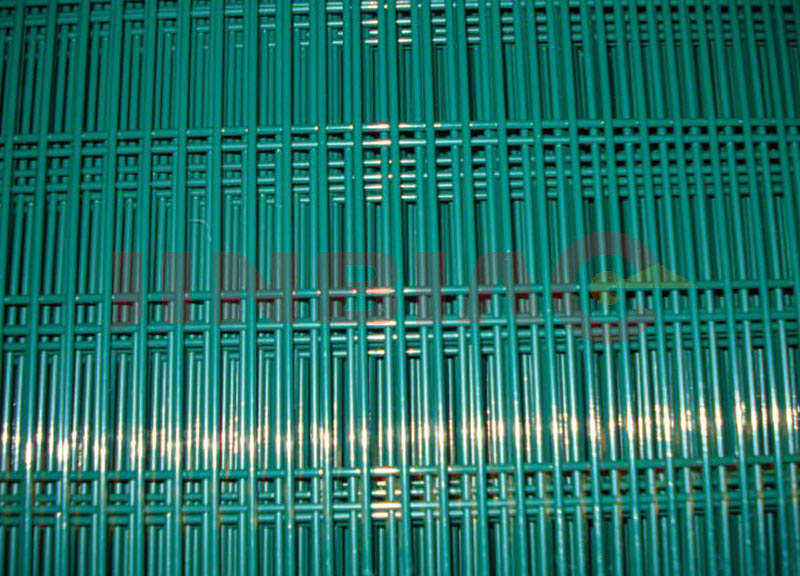

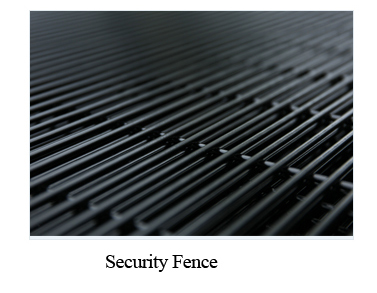

• Mesh pattern: 76.2mm (3") × 12.7mm (0.5") resistance welded well at each intersection
• Wire diameter: 3-6mm
• Weld strength: range 540-690 N/m2
• Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
• Colors: Green RAL 6005, or Black RAL 9005, etc.

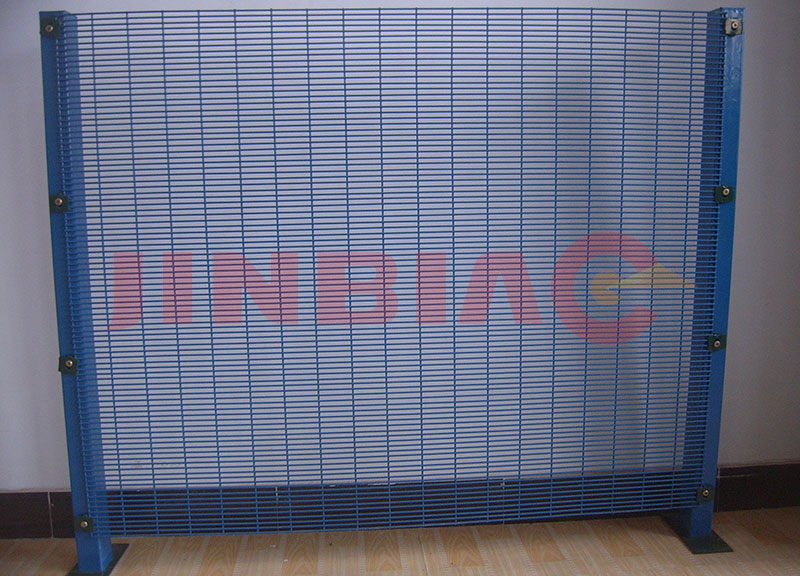

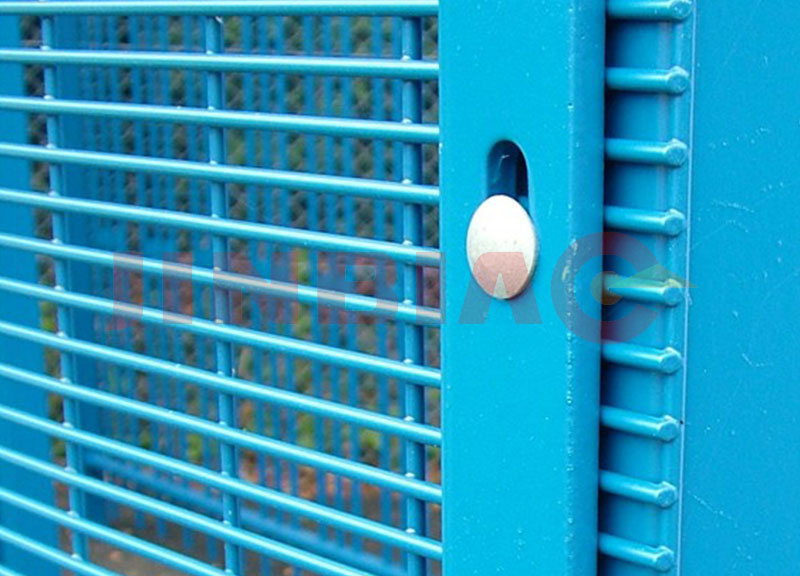

• Installation: Overlapped 75mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.
• The panels are made of heavy mesh with a high level of security in width 2515mm and a height of 2007mm to 3302mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300mm.
3. 358 Mesh High Security Fence Non-climb Fence - Posts and Accessories:
• Material: high grade steel for maximum strength and rigidity.
• Post section: 80×60mm, 80×80mm or 120×60mm.
• Post Plate thickness: 2.5mm or 3.0mm.
• Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
• Colors: Green RAL 6005, or Black RAL 9005.
• Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

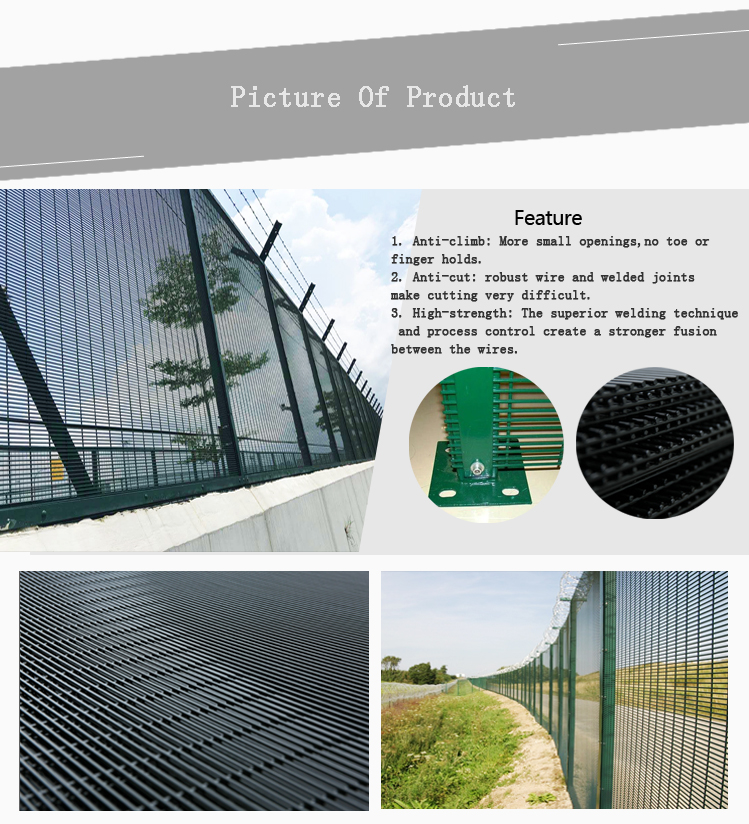

4. 358 Mesh High Security Fence Non-climb Fence - Features:
• Anti-climbing: more small openings, no toe or finger holds.
• Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
• High strength welded at each intersection.
• Durable: covering Galfan and polymer powder coating ensure a long service life.
• Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

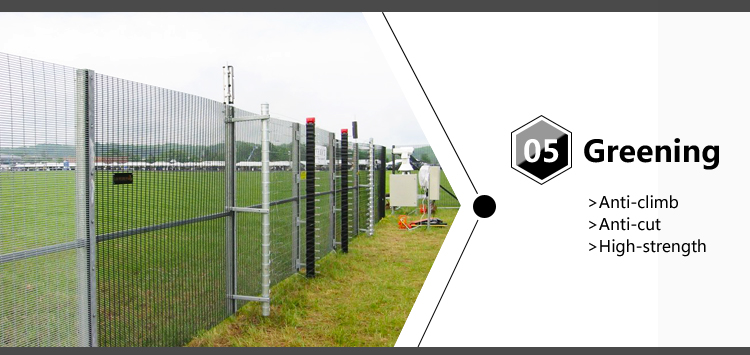

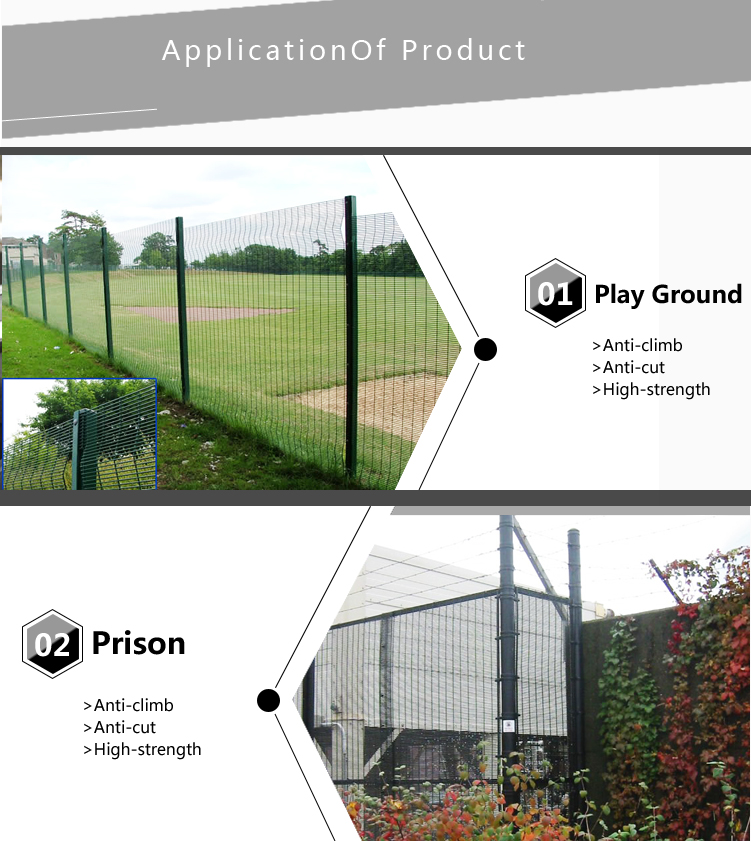

5. 358 Mesh High Security Fence Non-climb Fence - Application:

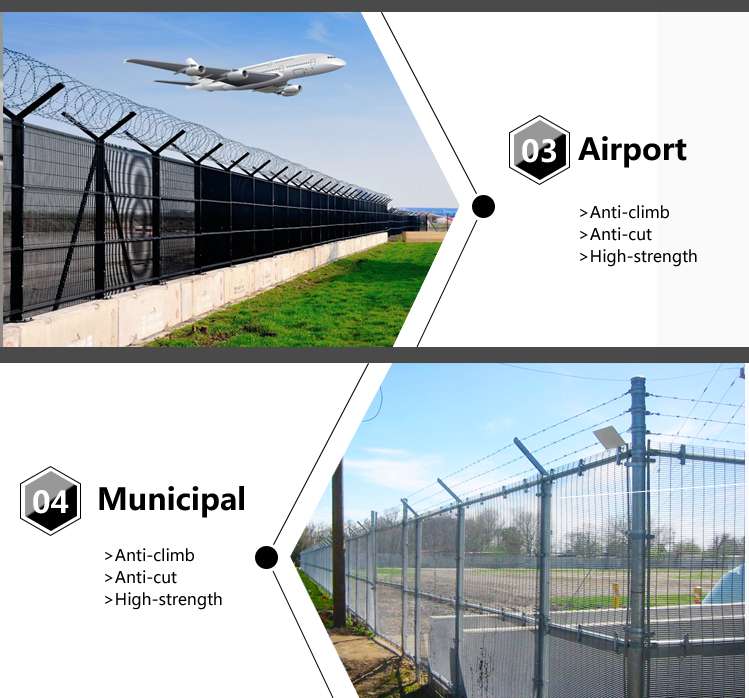

as an anti-climb & anti-cut through barrier, 358 welded wire security fence is designed with maximum security in mind. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, and airports, industrial and commercial properties, warehouses, power plants, laboratories, secure hospitals, schools, parks, leisure and recreational areas. 358 fence will give them a long lasting and secure perimeter protection with attractive appearance. Generally, 3.60m height fence is used in schools, parks, leisure and recreational areas, 5.20m height fence widely used in prison and military establishments.
358 Anti Climb High Security Mesh Fence
1) Security for 358 Hi-Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | |
3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 26 | |
2) Security for 358 Maximum Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
4.2 | 4204 x 2515 | 100x100x4mm | 5200 | 15 | 30 |
4.5 | 4496 x 2515 | 100x100x5mm | 5500 | 16 | 32 |
5.2 | 5207 x 2515 | 120x120x5mm | 6200 | 18 | 36 |
I.Anti climb fence feature:
1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.
2.Razor wire can be add to the installation to increase security furthermore.
3.welded at each intersection, hence an effective deterrent to would be intruders
II. Anti climb fence post specification
1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
2.C type post: 64*83mm
Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
V. Anti climb fence color
Green, blue, black,white,yellow, red
III.Anti climb fence application:
widely used in prison fence, military installations, airport, security fence.....
Related Product
Welcome to Contact Us :
Name: Coral hu
Tel: +86-311-80979540
Mobile: +86-13833129670
Skype: huyafeng125
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
