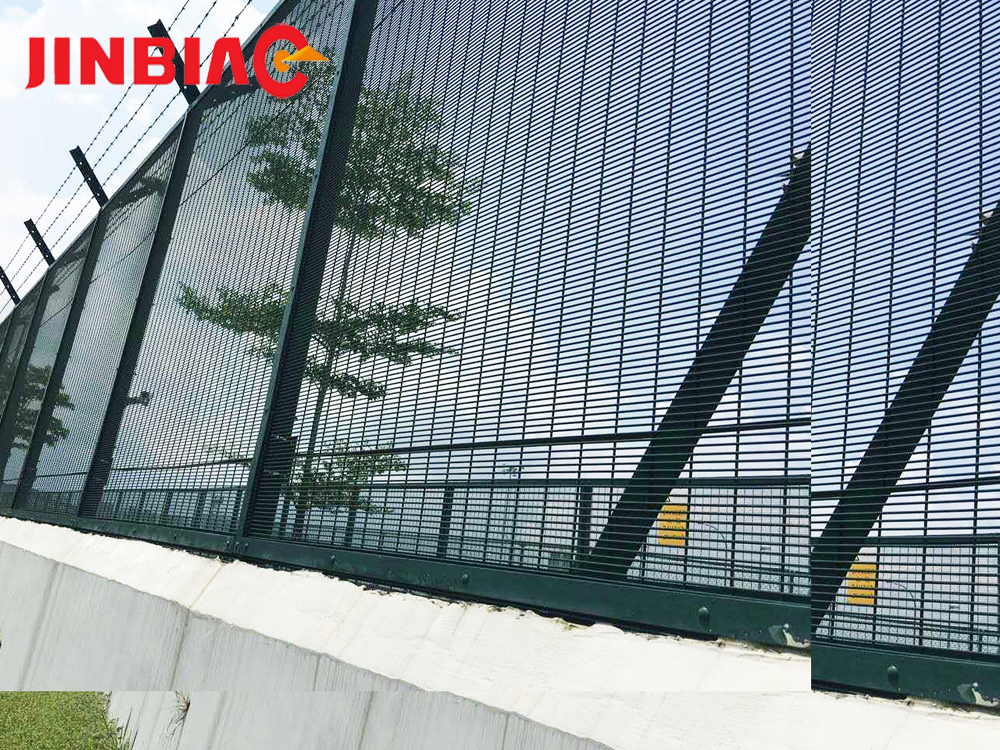

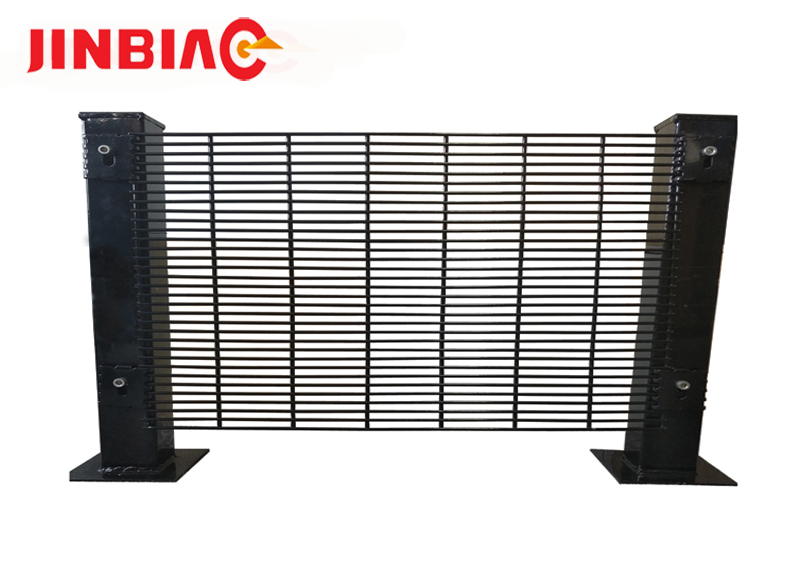

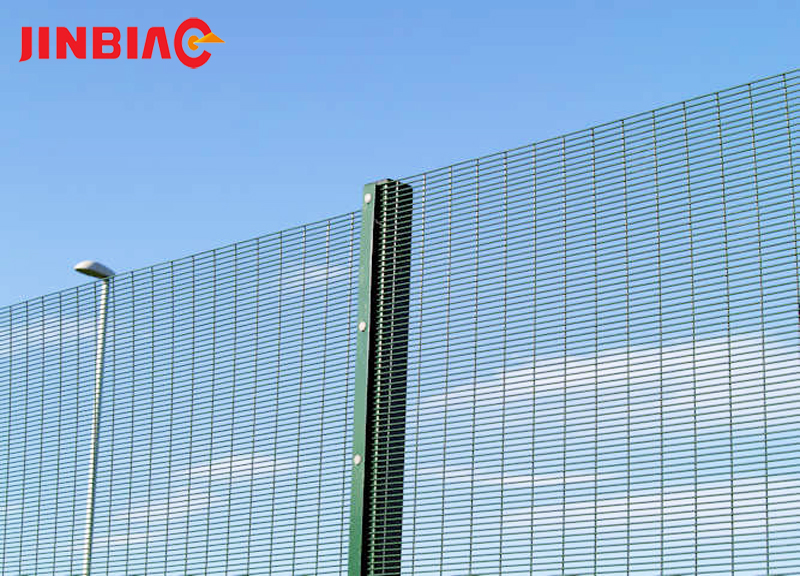

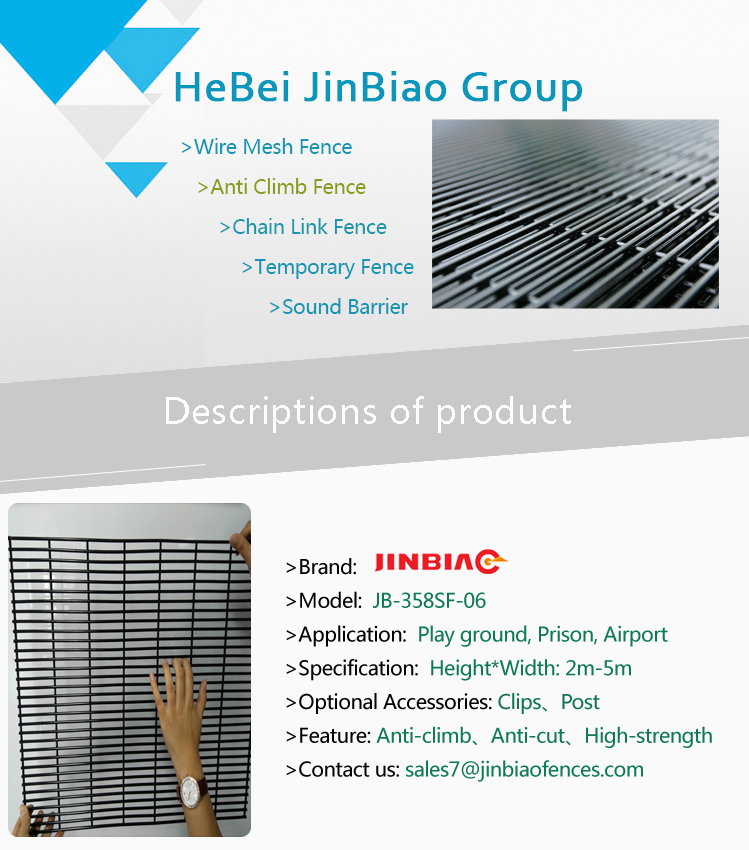

358 Security Fence
358 Security Fence
Anti climb fence

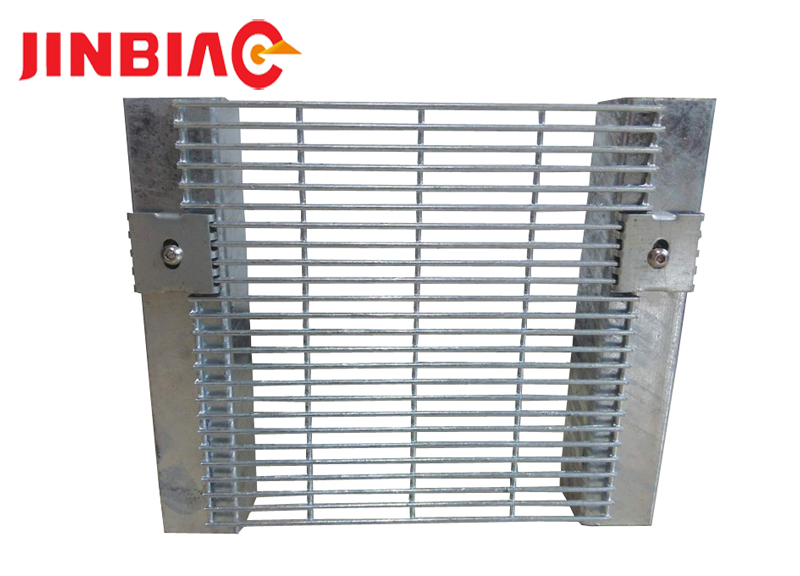

1) Security for 358 Hi-Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | |
3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 26 | |
2) Security for 358 Maximum Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
4.2 | 4204 x 2515 | 100x100x4mm | 5200 | 15 | 30 |
4.5 | 4496 x 2515 | 100x100x5mm | 5500 | 16 | 32 |
5.2 | 5207 x 2515 | 120x120x5mm | 6200 | 18 | 36 |

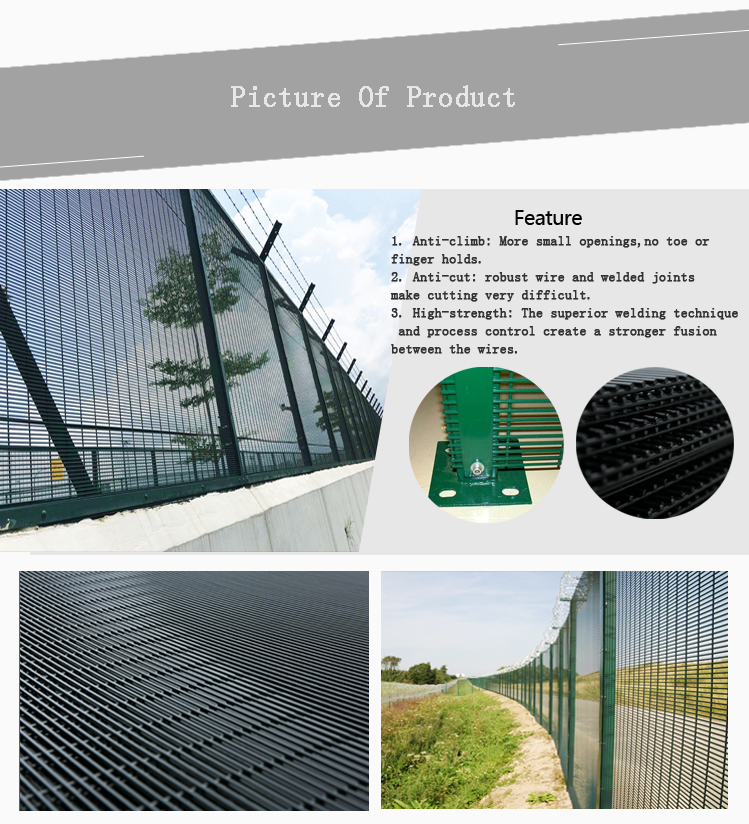

I.Anti climb fence feature:
1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.
2.Razor wire can be add to the installation to increase security furthermore.
3.welded at each intersection, hence an effective deterrent to would be intruders

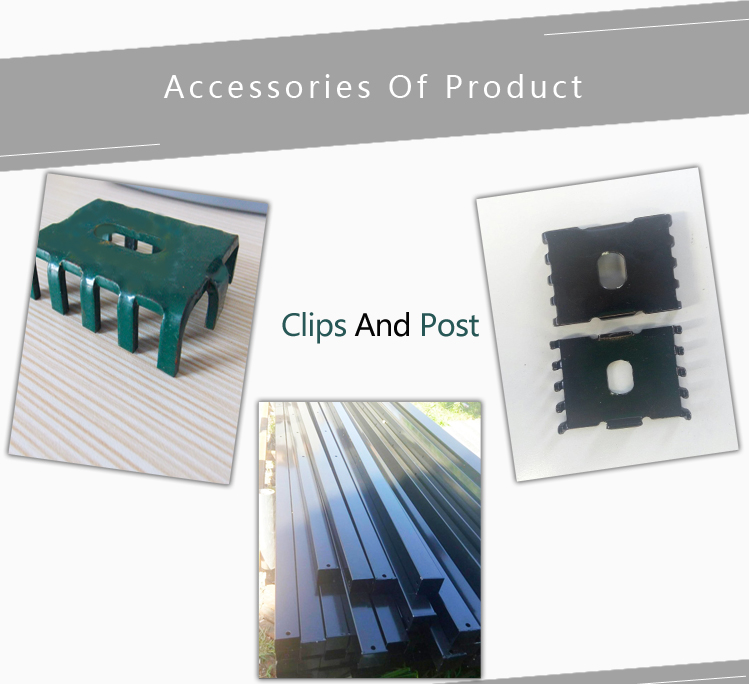

II. Anti climb fence post specification
1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
2.C type post: 64*83mm
Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
V. Anti climb fence color
Green, blue, black,white,yellow, red

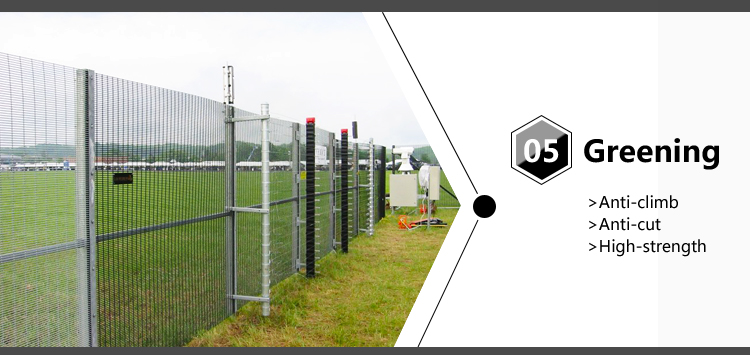

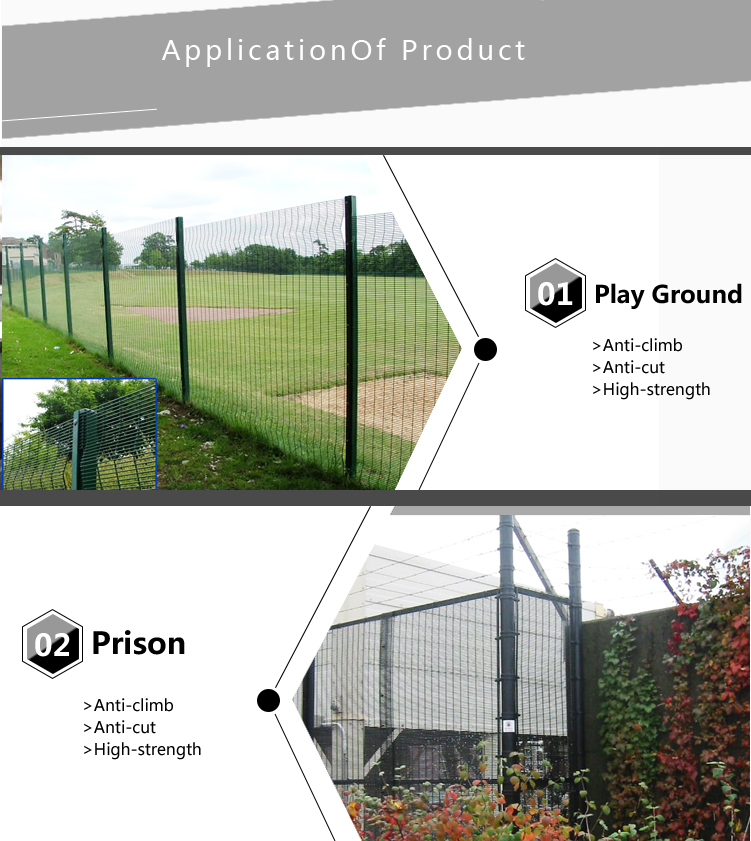

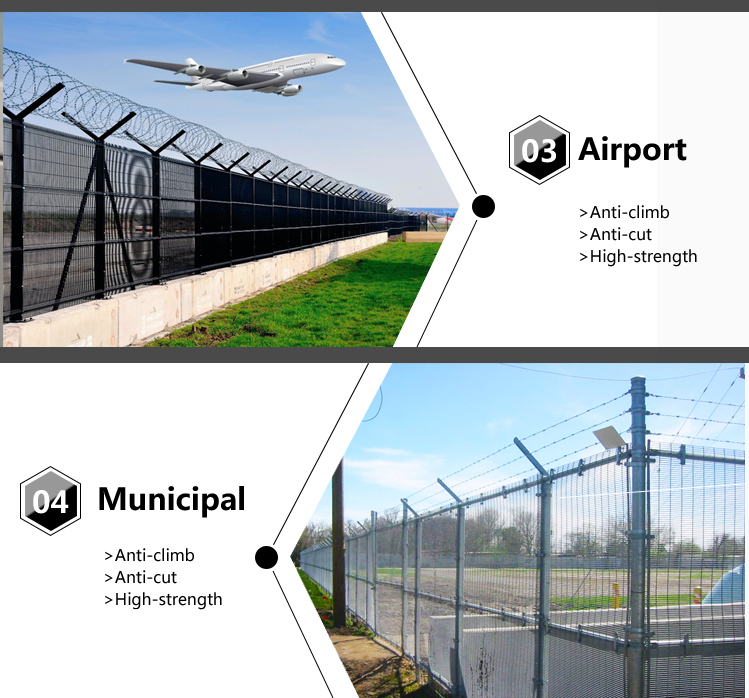

III.Anti climb fence application:
widely used in prison fence, military installations, airport, security fence.....

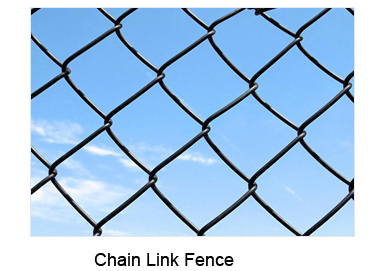

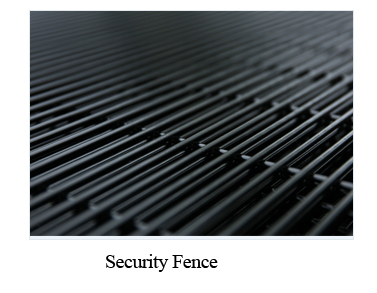

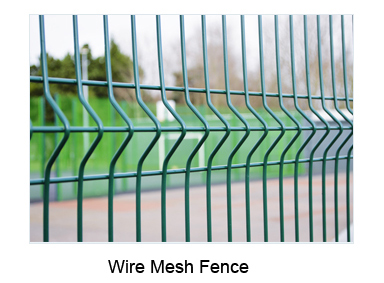

Related Product
Welcome to Contact Us :
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
