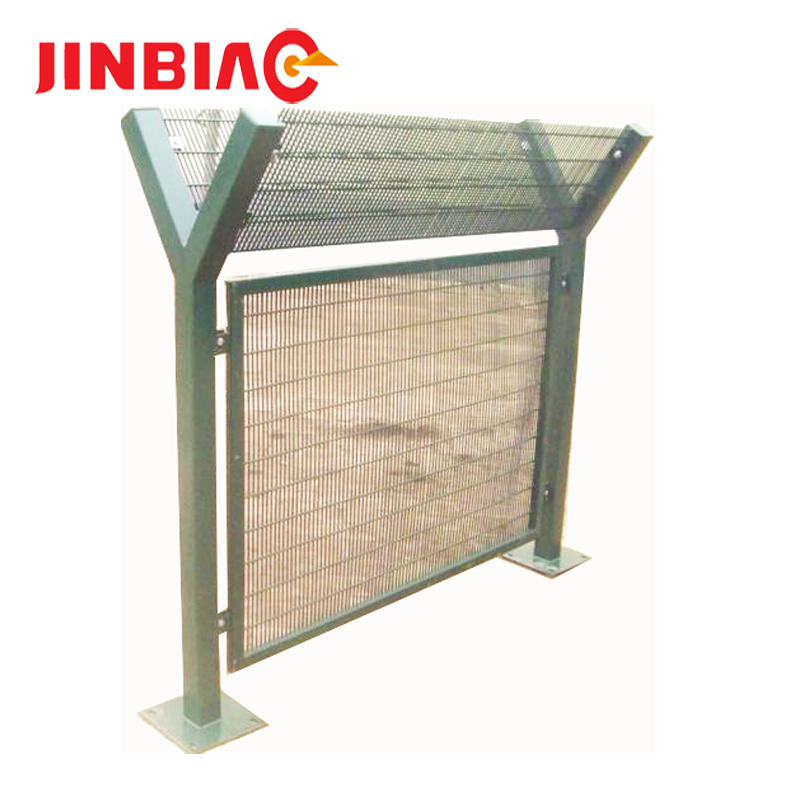

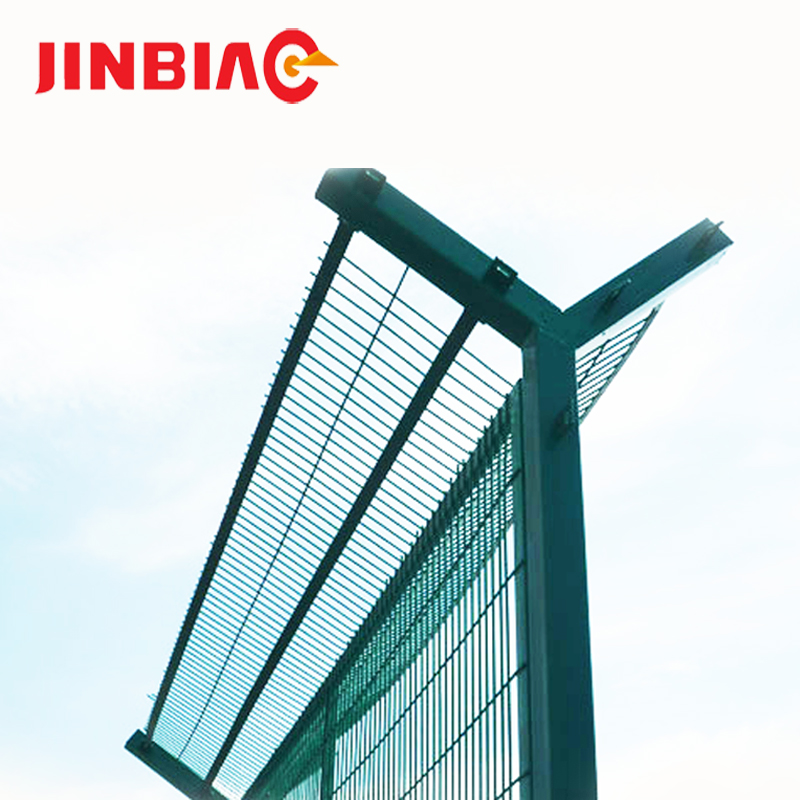

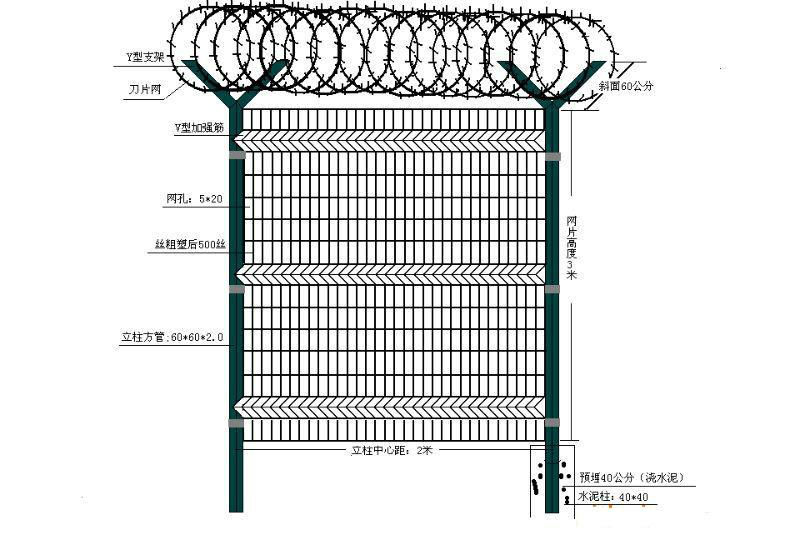

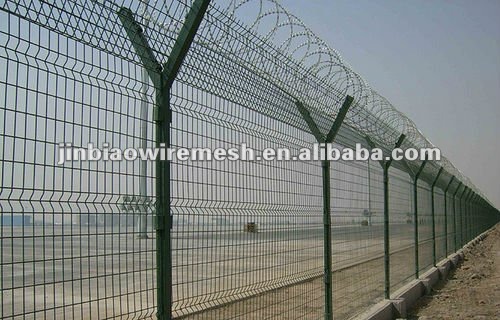

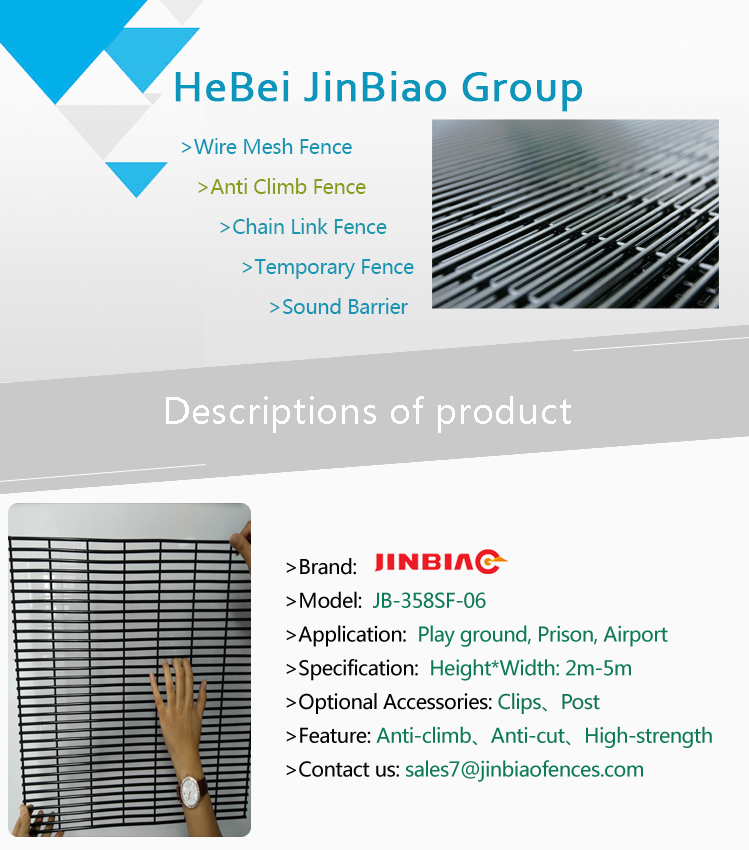

Airport security high quality no climb fence
Razor barbed wire
Ex. Dia. | No. of Turns | Standard Covering Length | Production Model | Remarks |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-12.18.22 | Cross type |
600mm | 86 | 14M | BTO-12.18.22 | Cross type |
700mm | 72 | 12M | BTO-12.18.22 | Cross type |
800mm | 64 | 10M | BTO-12.18.22 | Cross type |
960mm | 52 | 9M | BTO-12.18.22 | Cross type |
Specification List of Welded Wire Mesh | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit(mm) | |
1/4” x 1/4” | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
1) Security for 358 Hi-Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | |
3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 26 | |
2) Security for 358 Maximum Security System
Panels | Posts | ||||
Fence | Panel Size | section | O/A Length | Total number of fixings | |
height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
m | mm | ||||
4.2 | 4204 x 2515 | 100x100x4mm | 5200 | 15 | 30 |
4.5 | 4496 x 2515 | 100x100x5mm | 5500 | 16 | 32 |
5.2 | 5207 x 2515 | 120x120x5mm | 6200 | 18 | 36 |

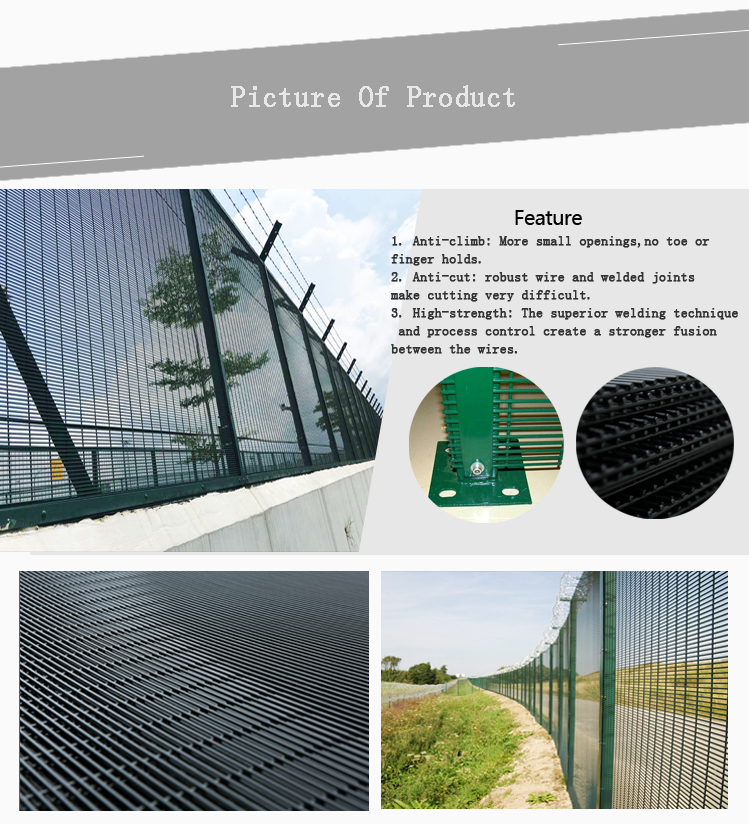

I.Anti climb fence feature:
1.corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.

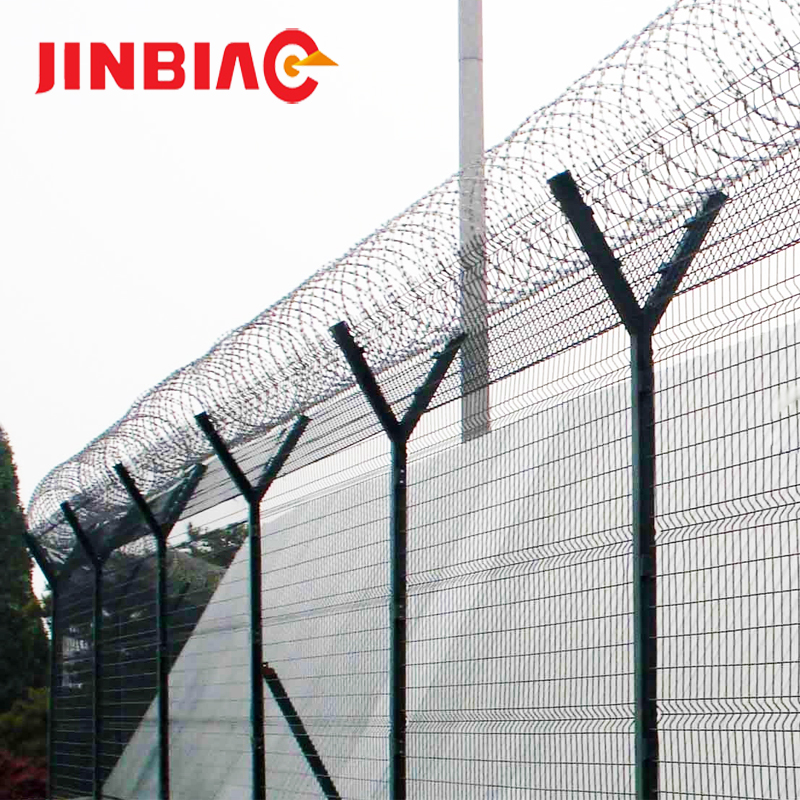

2.Razor wire can be add to the installation to increase security furthermore.
3.welded at each intersection, hence an effective deterrent to would be intruders

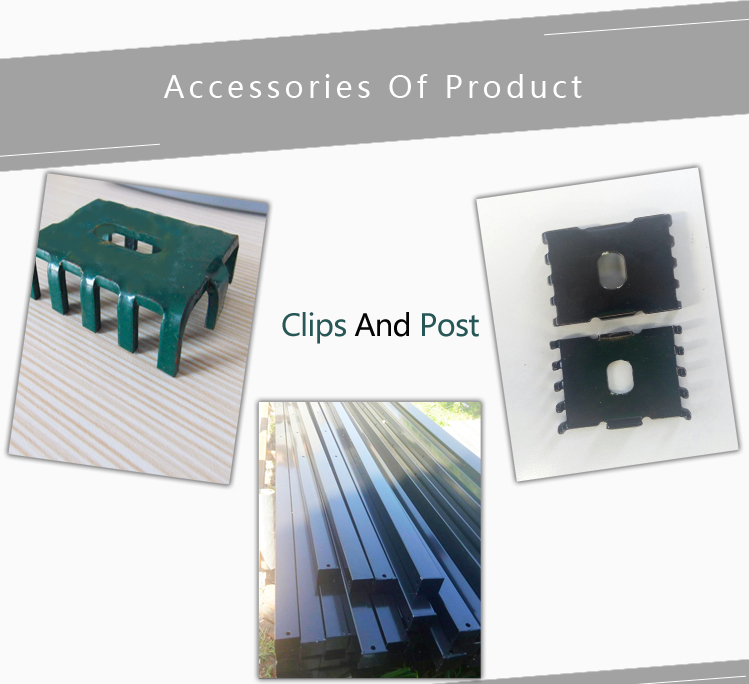

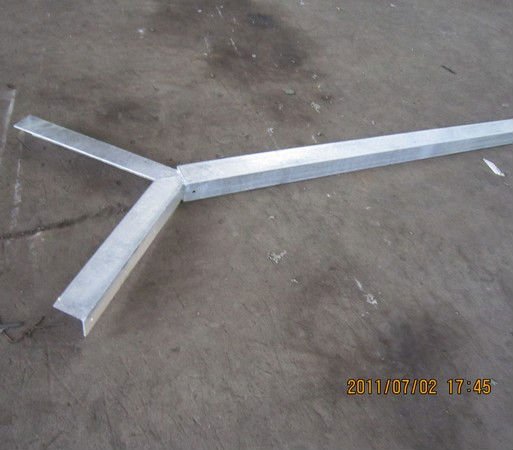

II. Anti climb fence post specification

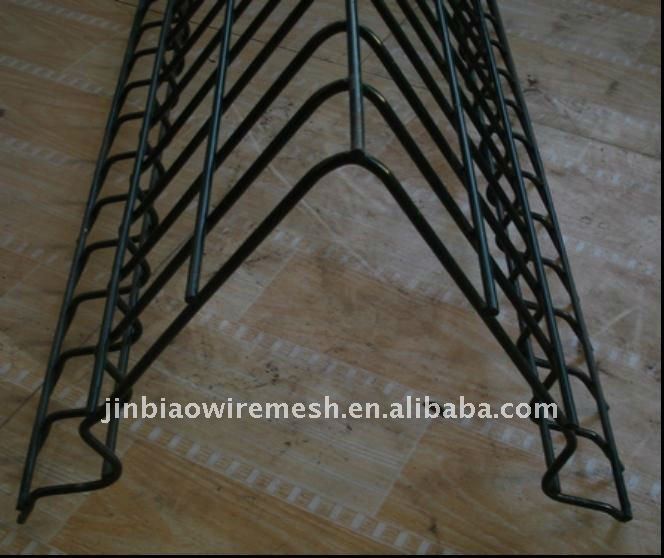

1. square post: 40*60mm;60*60mm;60*80mm,80*100mm80*120mm
2.C type post: 64*83mm
Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
V. Anti climb fence color
Green, blue, black,white,yellow, red

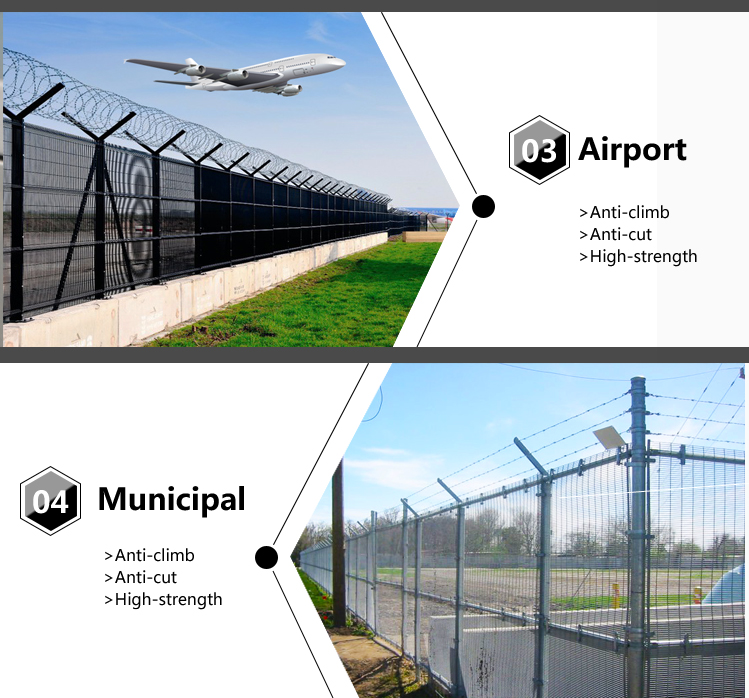

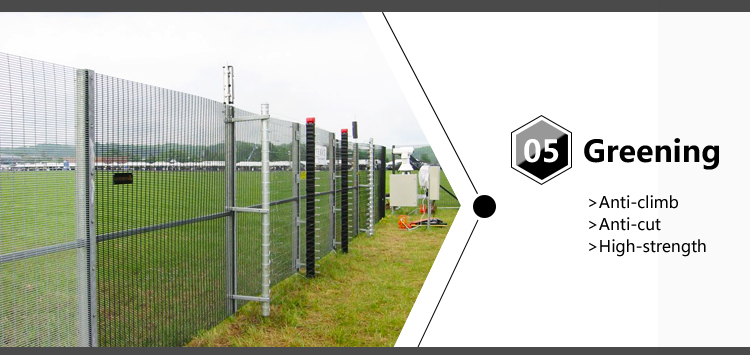

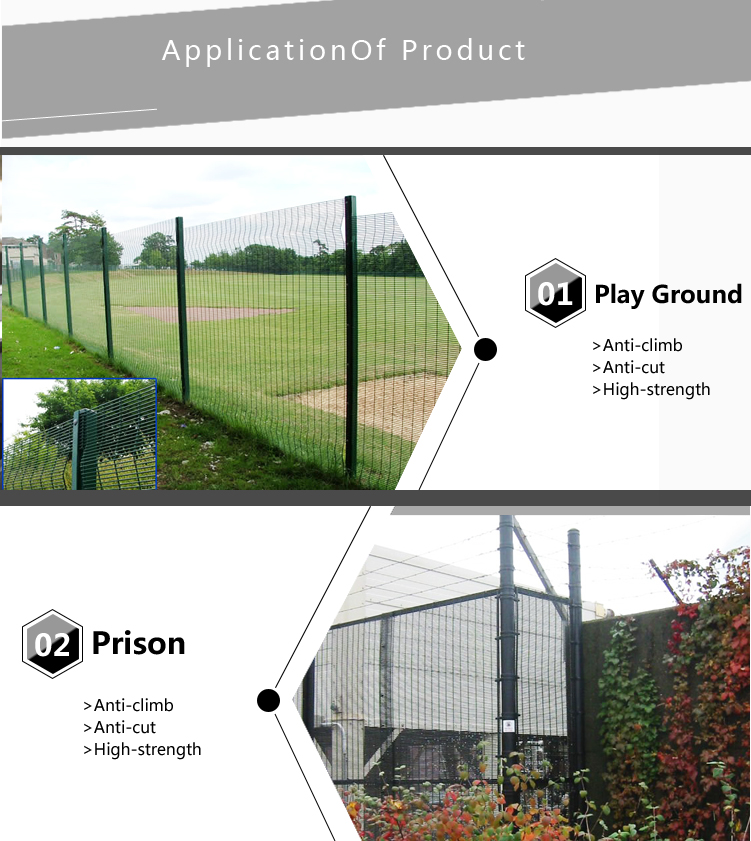

III.Anti climb fence application:
widely used in prison fence, military installations, airport, security fence.....
