Cheap galvanized concertina stainless steel razor barbed wire

Cheap galvanized concertina stainless steel razor barbed wire

Product Description

cheap galvanized concertina stainless steel razor barbed wire

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security

fencing materials, made of hot-dipped galvanized steel sheets or stainless steel sheets. And we can

produce all kinds of razor barbed wire such as straight type razor

wire, concertina coils, crossed type and flat type etc.

Material: Iron or stainless steel

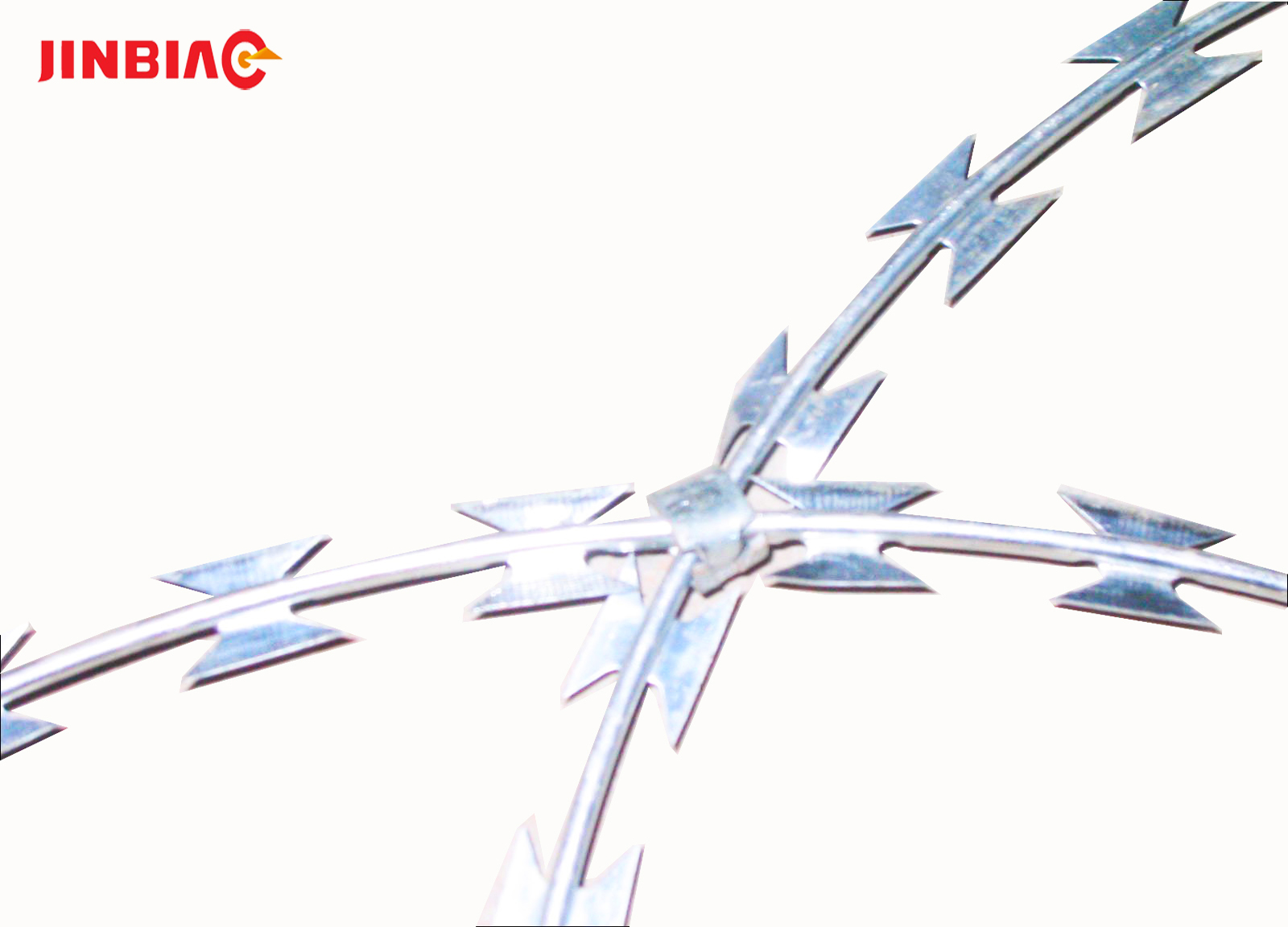

Types:Single loop razor wire &cross type razor wire

Covering area can be 7m,8m,10m,12m,15m or as customer's requests.

Outter roll diameter can be

450mm,500mm,600mm,730mm,900mm,1meter, or as customers' specific request.

Blade type:BTO-10,12,18,20,22,30,65& CBT-60

Weave characteristics: twist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing

before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plas-tic coating,

stainless steel, etc.

Barbed tape wire Specification:

Reference Number	Thickness	Wire Dia	Barb Lengh	Barb Width	Barb spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	36±1
	0.5±0.05	2.5	28	15	46±1
BTO-30	0.5±0.05	2.5	30	18	46±1
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	101±2

Outer diameter	No.of Loops	Standard Length per Coil	Type	Notes
450mm	33	7M-8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	54	11M-15M	CBT-65	Single coil
500mm	102	15M-18M	BTO-12.18.22.28.30	Cross type
600mm	86	13M-16M	BTO-12.18.22.28.30	Cross type
700mm	72	12M-15M	BTO-12.18.22.28.30	Cross type
800mm	64	13M-15M	BTO-12.18.22.28.30	Cross type
960mm	52	12M-15M	BTO-12.18.22.28.30	Cross type

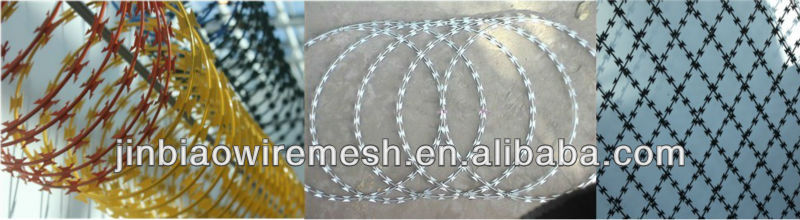

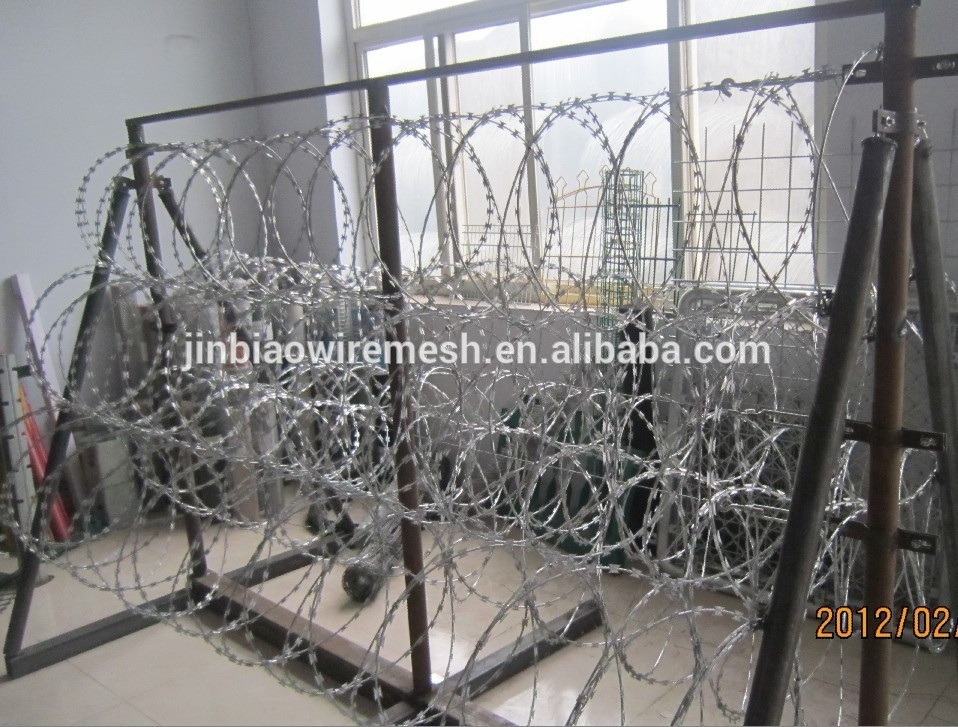

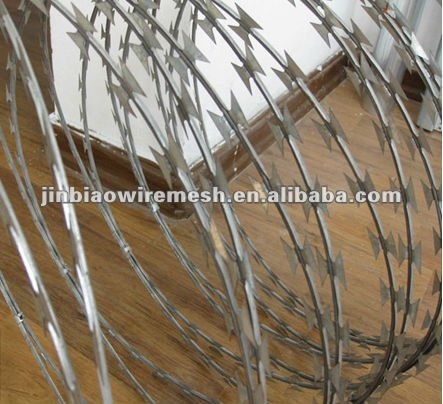

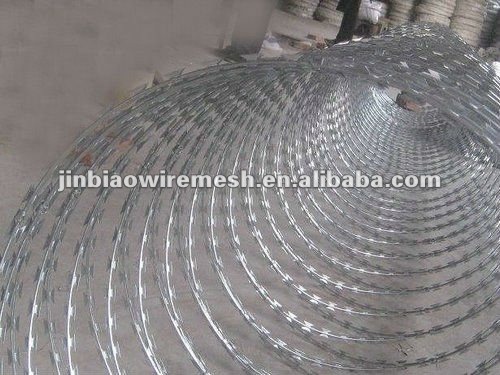

Product show

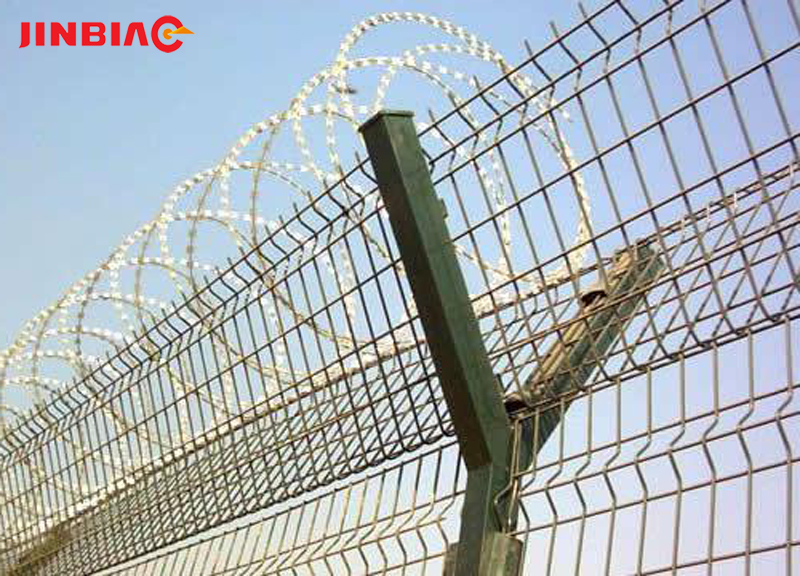

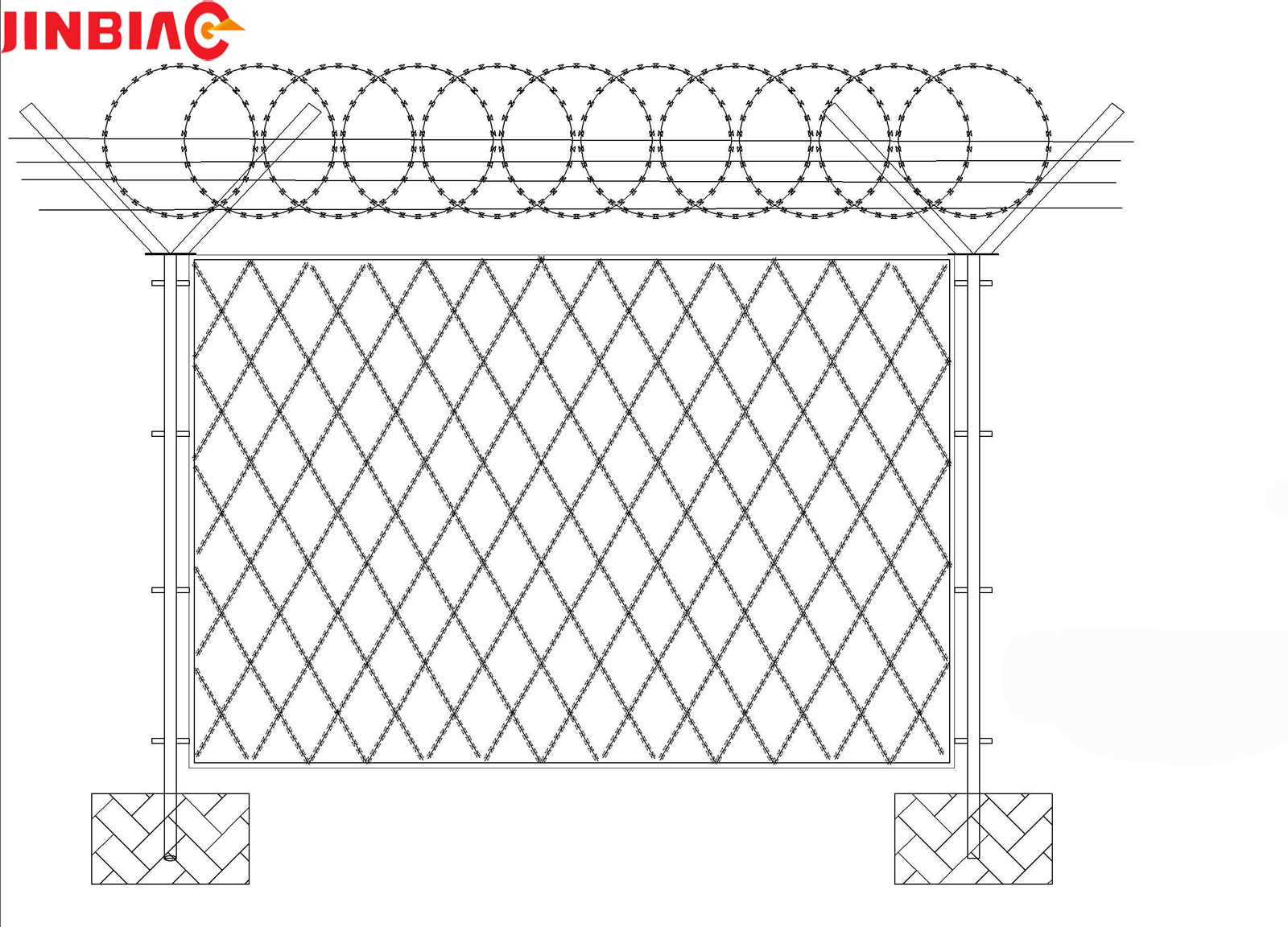

Razor wire can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.

Razor Blade Type: BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65

Material: hot dipped galvanized steel sheet and wire, stainless steel sheet and wire 430 or 304.

The length and the diameter of the coil can be designed as per the customers' need.

Raw materials:

high quality low carbon steel wire (electric galvanized, hot dipped galvanized, plastic coated, plastic spraying), such as blue, green, yellow color.

Usage: used for pasture boundary, railway, highway isolation protection, etc.

* Hot dipped galvanized razor Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray

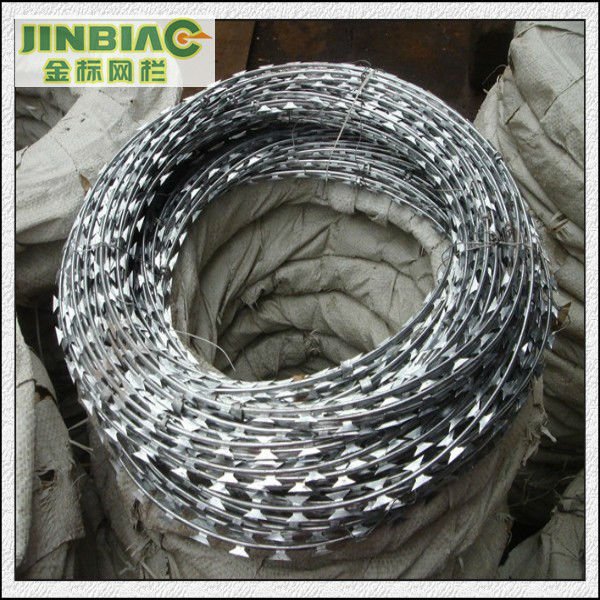

Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C

Product application

Application:

Razor barbed wire is widely used by in military field, prisons, detention houses, government buildings and other national security facilities; it is also used as fence for cottage and society fence, and other private buildings.
