Sound Barriers
(also known as Noise Walls, Noise Barriers, Noise Fences or Sound
Barrier Walls) have been made of a number of different materials over

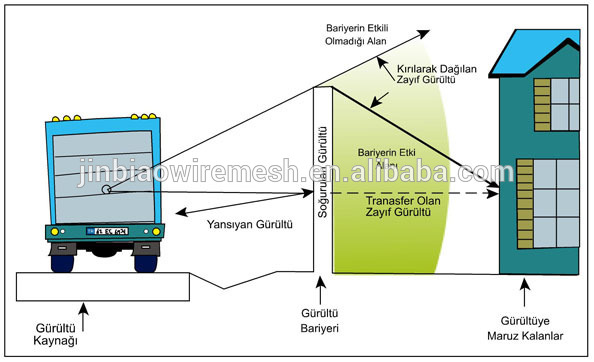

the years. Noise barriers are solid obstructions built between noise
sources, be it highway noise or air conditioning equipment,that are
designed to be “line of sight” interruptions between the noise source
and the receiver.

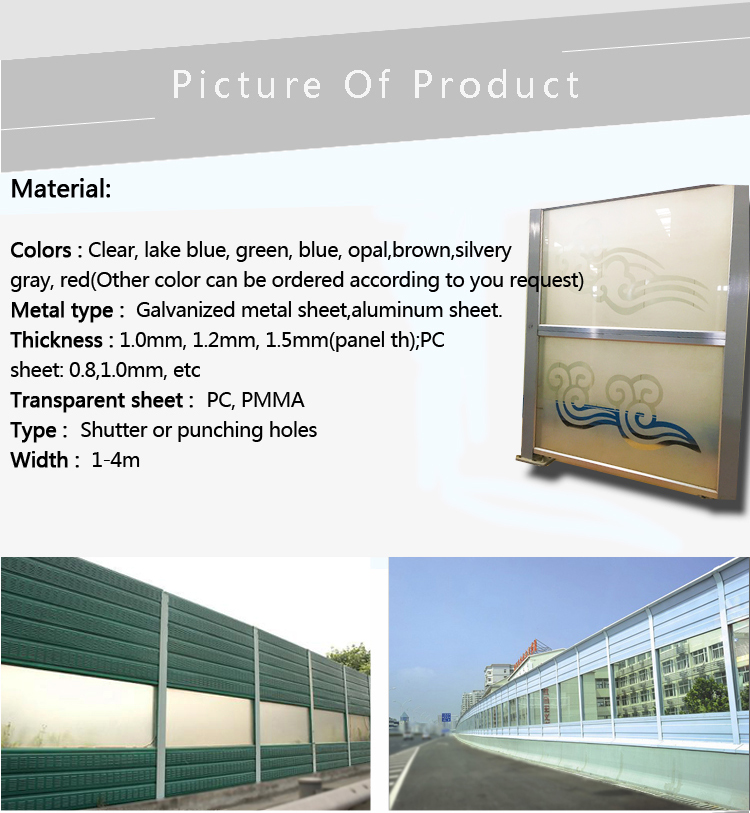

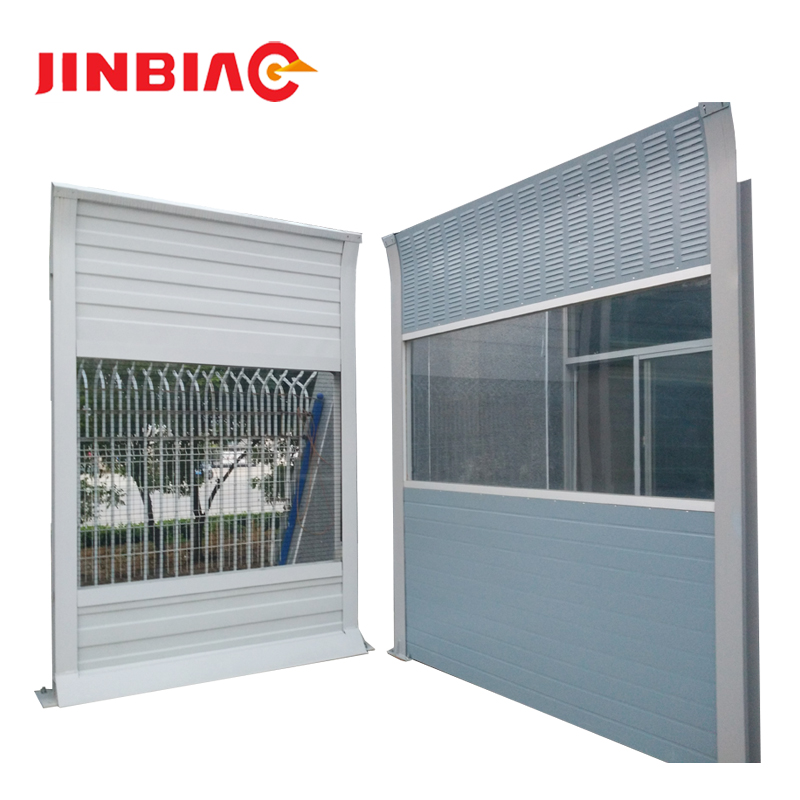

Sound Barrier Material:
Metal type: Galvanized metal sheet, aluminum sheet.
Appearance: shutter type, perforated type.
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red (Other colors can be ordered according to request

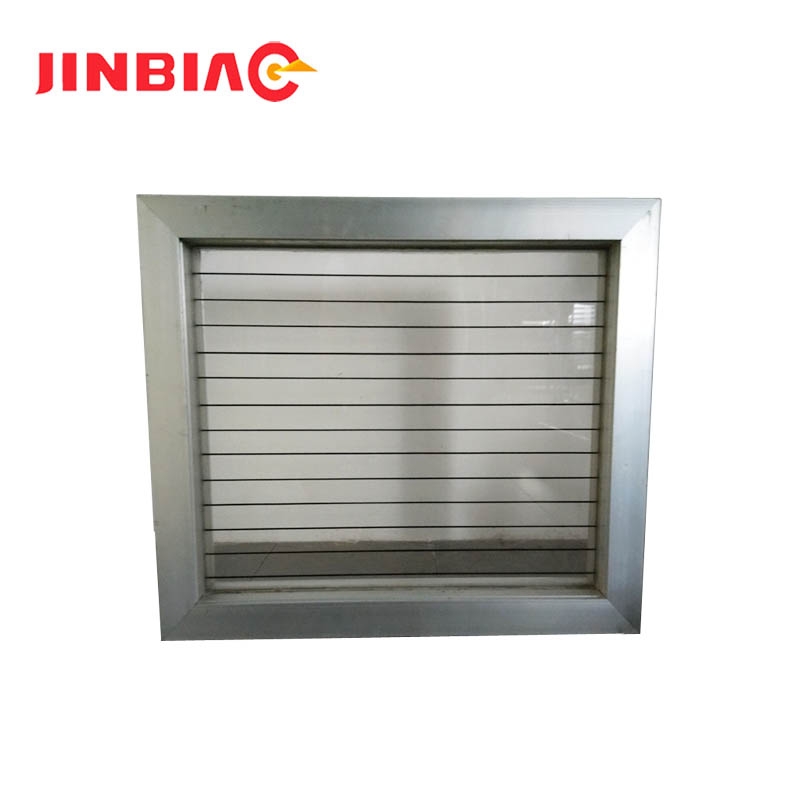

Transparent sheet: PC, PMMA
Product name: Soundproof Fenc
Sound Barrier Specifications:
METAL SHEET | |||||||
PANEL HEIGHT | PANEL LEHGTH | SHEET THICKNESS | SHEET THICKNESS | PANEL TYPE | |||
0.5m 1.0m | 2.0m 2.5m 3.0m 4.0m | 80mm 100mm | 1.0-1.5mm | shutter or perforated | |||
PC/PMMA SHEET | |||||||
PANEL HEIGHT | HEIGHT | SHEET THINCKNESS | LIGHT TRANSMITTANCE | ||||
0.5m 1.0m 1.5m | 2.0m 2.5m 3.0m 4.0m | 80mm 100mm | ≥80% | ||||
SOUND BARRIER | |||||||
TOTAL HEIGHT | LENGTH | RW | NRC | ||||
3.0m as standard | 2.0m 2.5m 3.0m 4.0m | ≥30dB | ≥0.84 | ||||
Shippment information: 600-800 square meter sound barriers per 40ft container
Sizes or specifications vary with different packings.
Shippment information:600 square meter per 40ft container.

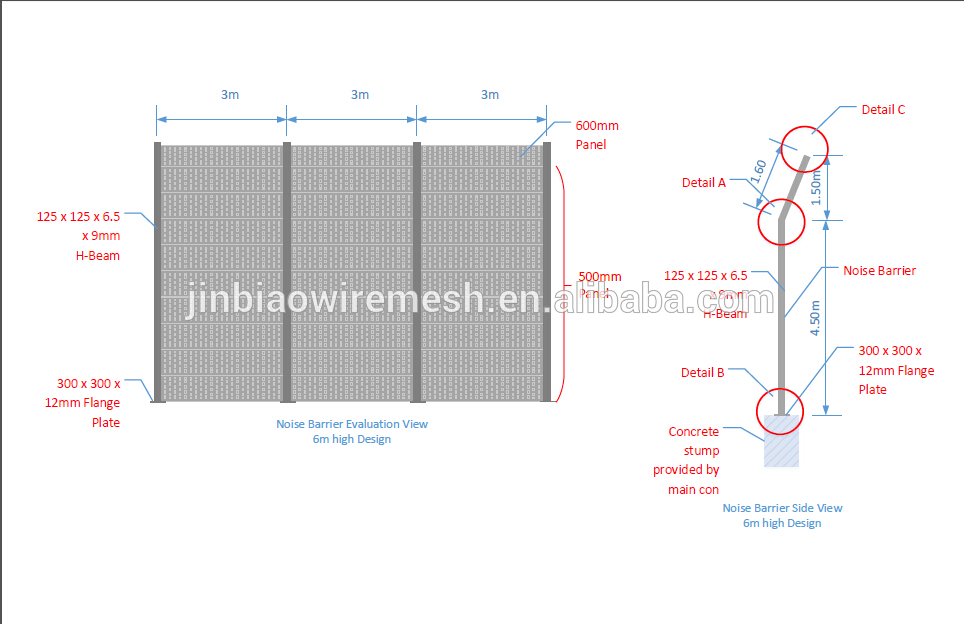

~ODZW0LUNO_H6K.jpg](ueditor/php/upload/image/20171218/1513568085431684.jpg)
2.Detailed Description
1. Non-Flammability: GB8624 grade A
2. Waterproof :Resistant to deformation in wet environments
3. Sound proof:
4. Strength: Bendable and impact resistant
5. Weight: 35kg/m2
6. Temperature Maintenance
7. Environmental Friendly;
8. Installation: Easy to cut, saw, nail, paint and veneer
Noise barrier Panel thickness: 80mm, 100mm,120mm
Noise barrier Size: 2500x500x80mm, 2500x500x100mm, etc.
Noise barrier Metal plate thickness: 0.5-1.2mm

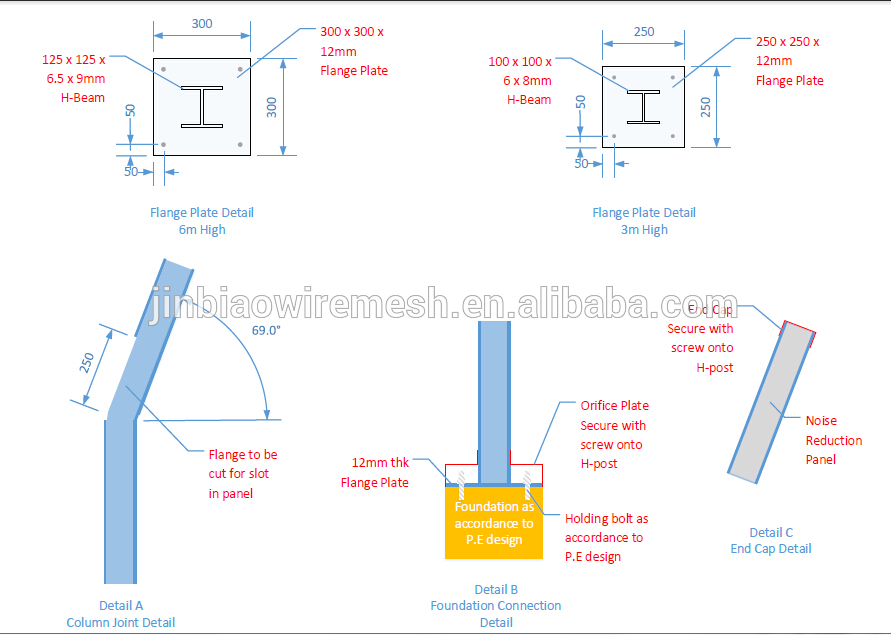

Noise barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Noise barrier Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.
Noise barrier Panel type: shutter type, punching type.

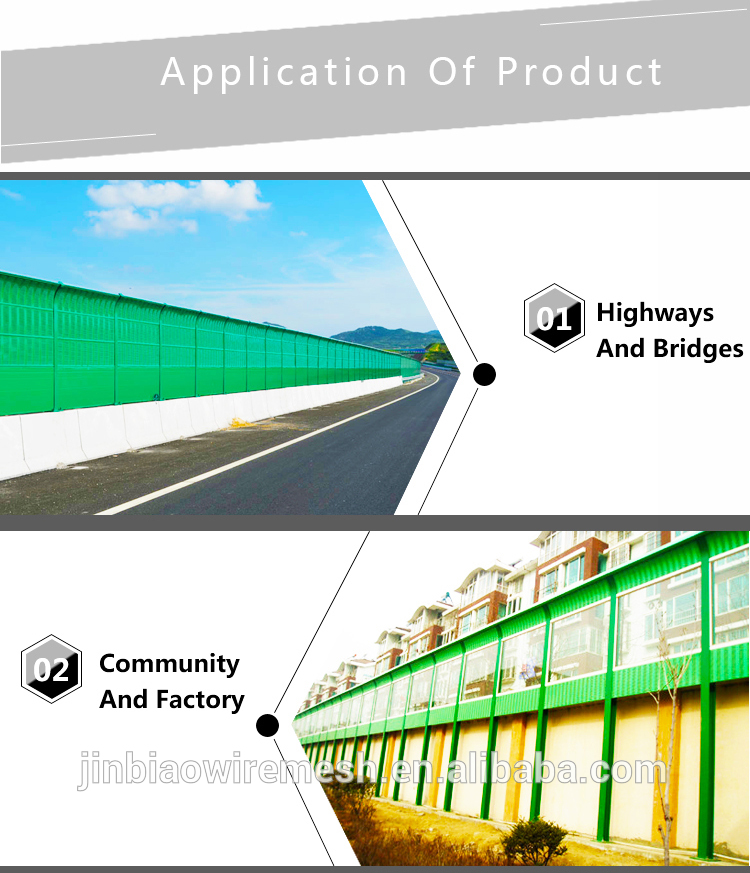

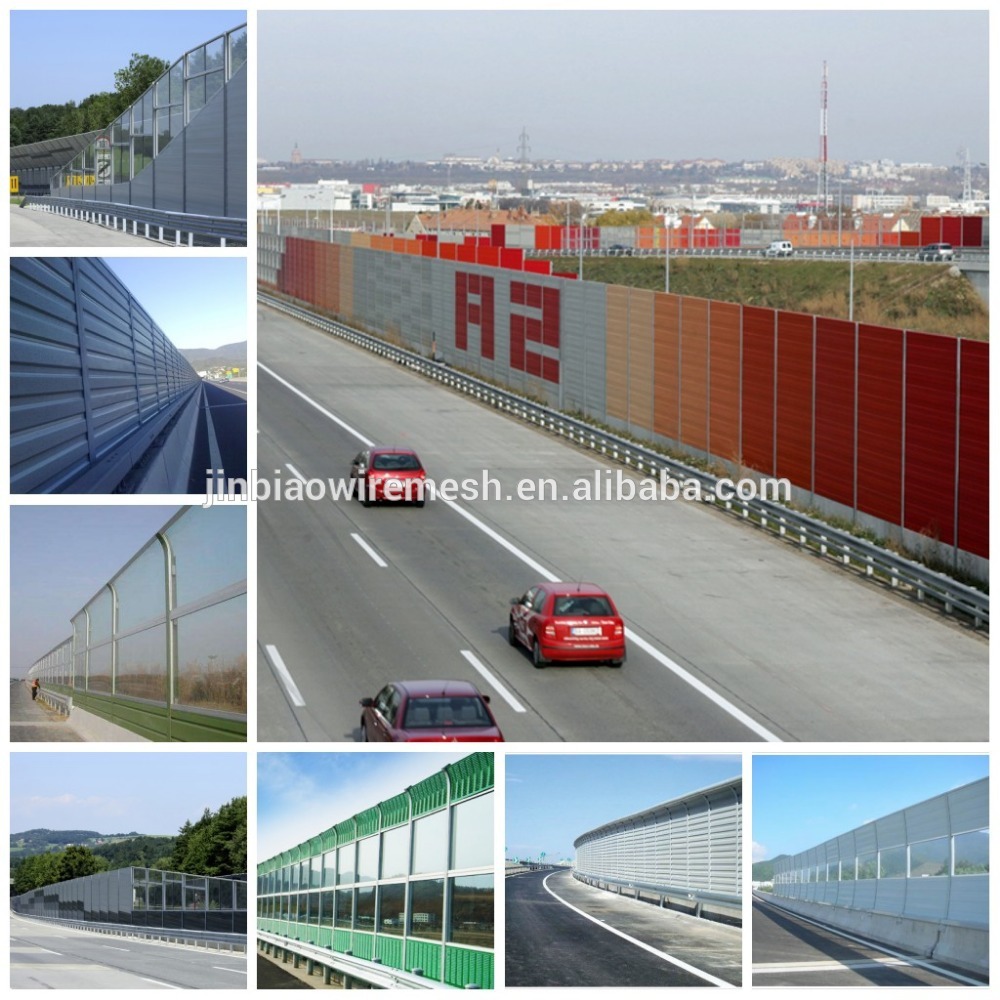

Some transportation noise barrier applications include:

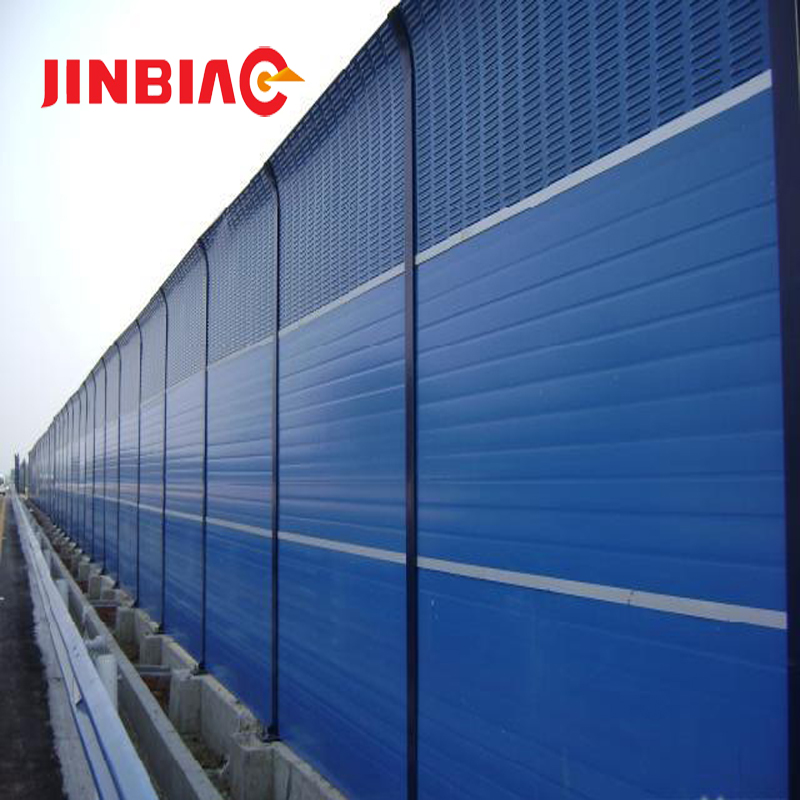

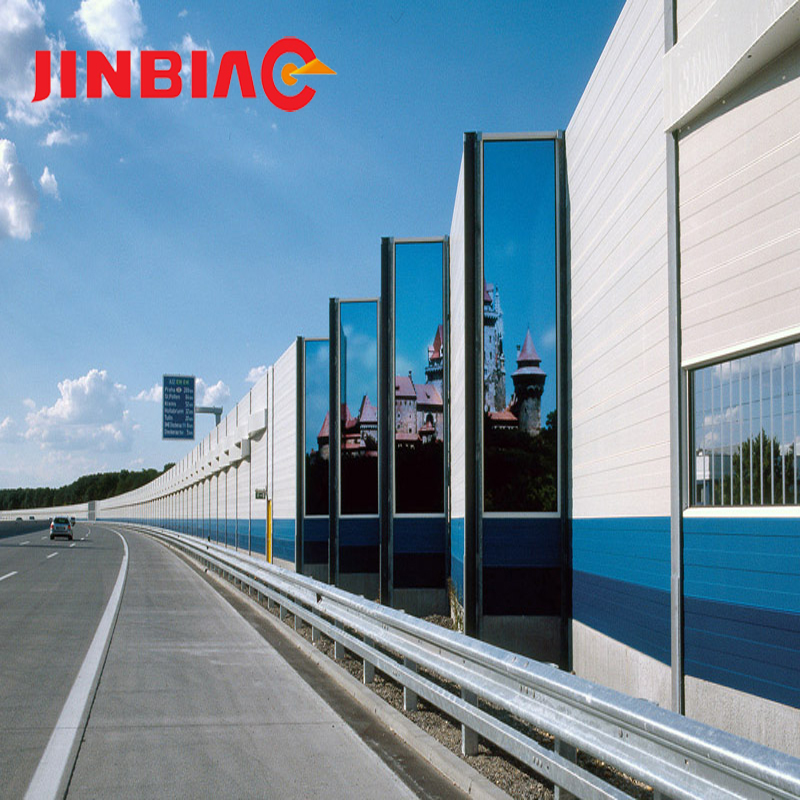

> Highways and Bridges
> Structure-Mounted
> Railroads
> Distribution Facilities
> Transit Hubs / Intermodal

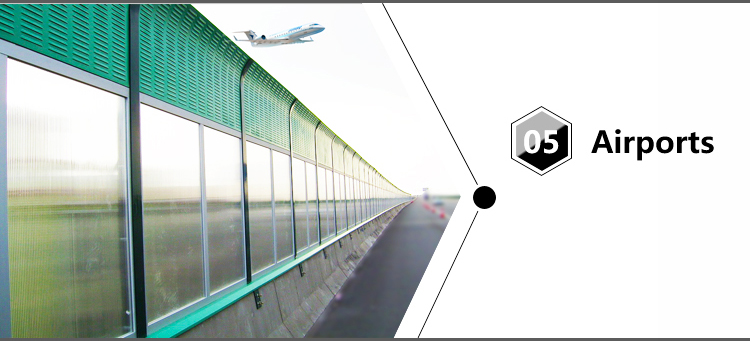

> Airports
Sound Barrier for Industrial Infrastructure |
> Some industrial noise barrier applications include: > Manufacturing Plants > Equipment Enclosures > Perimeter Walls > Roof-Top HVAC Barriers > Generator Surrounds |
Sound Barrier for Municipal Infrastructure |

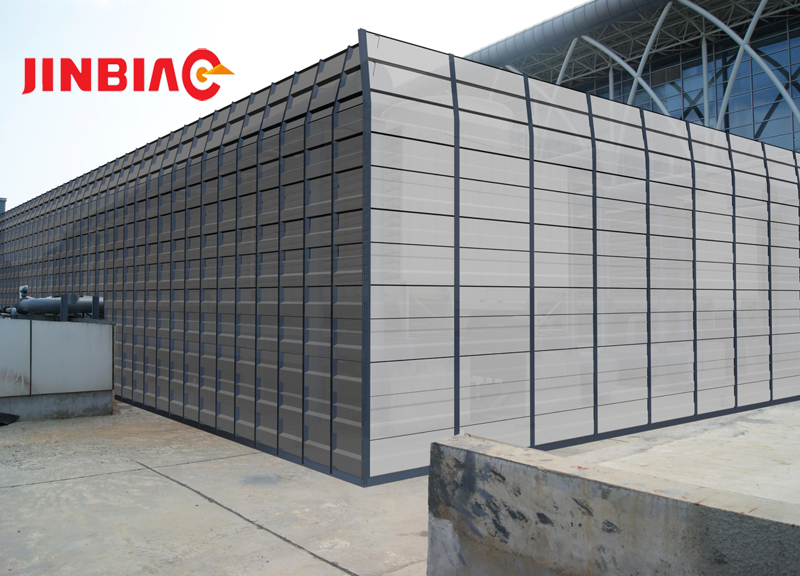

> Some municipal noise barrier applications include: > Light Rail Transit > Waste Water Treatment Plants > Pump Stations > Schools > Equipment Barriers > Roof-Top Equipment Enclosures |
Related Product
Welcome to Contact Us :
We are manufacturer.
Welcome you to visit our factory.
Any time,any questions,pls feel free to contact me.
sales manager l Fence manufacturer l Anping County Jinbiao Wire Mesh Fence Co., Ltd.
P.O. Box 053600, Development Zone, South Of Anping County, Hengshui, Hebei, China
Name: Coral hu
Tel: +86-311-80979540
Mobile: +86-13833129670
Skype: huyafeng125 >>>Buy Now
FAQ
1. Why Choose JinBiao Group?
a. largest manufacturer in Hebei
b. professional design team
c. Strict quality control
d. prompt delivery
2. We know little about the noise barriers, which items needed to get the quote?
Don't worry about that, we have professional technical person, just need supply the height, length, place to use, we'll make the suitable design for you.

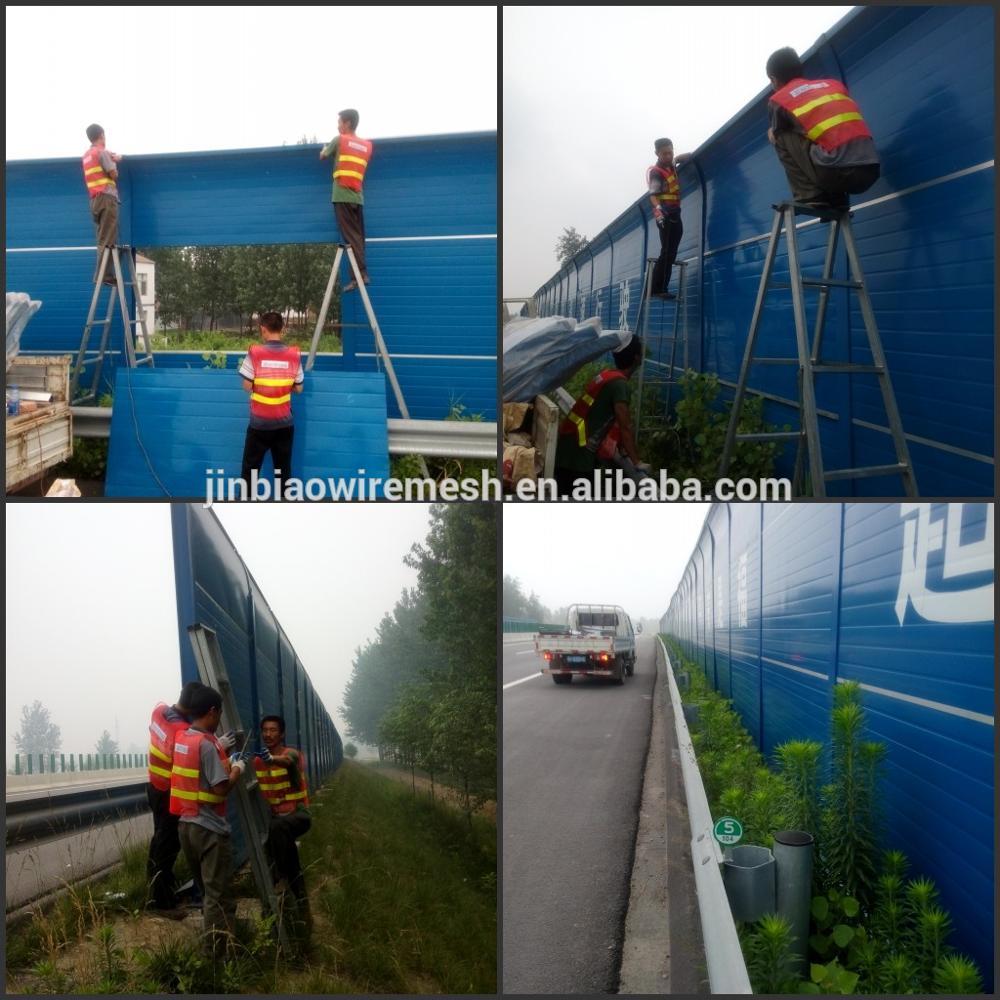

3. Beside the specification, how to install noise barriers?
