Hot dip gal Hot Sale And Popular powder coated sound barrier For Controlling Traffic Noise
1. railway noise barrier Features:
1) High light transmission: Up to 88% that of same thickness of general glass.
2) Excellent impact resistance: 80 times that of glass.
3)
Weather and UV resistant: Properties retained for years.: Temperature
resistance range is -40º C ~ +120º C, with an ultraviolet coextruded
film on the sheet surface. It can prevent the resin fatigue or yellowing
caused by the ultraviolet.
4) Light weight: Only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7)
An engineering plastic of excellent integration capability. It has
outstanding physical, mechanical, electrical and heat capabilities.
2. railway noise barrier Specifications:
Sound barrier design parameter: wind load: fundamental wind pressure W.
According to once every 50 years in two files : W ≤0.45kN/m2 and 0.45kN/m2<w.≤0.75kN/m2..
Vertical load: The vertical load of the sound barrier are suond barrier plate, stand column and the weight of the connection
Sound barrier post bottom load design value:
Wind pressure vaiue(kN/m2) | Height | Vertical force N (kN) | Horizontal force Sva (kN) | Mbending moment M (kN*m) |
w.≤0.45 | 2.0 | 1.70 | 9.1 | 9.4 |
2.5 | 2.64 | 11.4 | 14.7 | |
3.0 | 3.30 | 13.7 | 21.1 | |
3.5 | 4.28 | 16.0 | 28.6 | |
4.0 | 4.92 | 18.3 | 37.3 | |
0.45<w.≤0.75 | 2.0 | 1.85 | 15.2 | 15.8 |
2.5 | 2.90 | 19.0 | 24.5 | |
3.0 | 3.62 | 22.8 | 35.1 | |
3.5 | 4.32 | 26.7 | 47.7 | |
4.0 | 5.40 | 3.0.5 | 62.1 |
Acoustic board performance
Item No. | Items | Performance index |
1 | noise reduction coefficient | ≥0.5 |
2 | sound reduction index | ≥26dB |
3 | density | ≤30kg/m3 |
4 | deflection | Maximum deflection under standard load≤L/600(L for sound absorption board length) |
5 | fireproofing | GB8624-2003 Rules of class B or above |
6 | weather ability | JG149-2003 |
7 | durable years | ≥15 years |
Sound barrier error
Item No. | Items | allowable misalignment |
1 | Height | ±20mm |
2 | The distance of the post | ±10mm |
3 | Verticality of the post | ≤3mm/m |
4 | Thickness of panel | ±2mm |
5 | The width, height ,diagonal of the panel | ±10mm |
6 | Embedded bolt length | 0—10mm |
Transverse and longitudinal deviation of the embedded bolt | ±3mm |
1) Thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm.
2) Width: 1, 220mm, 2, 100mm
3) Weight (Kg/M2): 0.8, 1.2, 1.4, 1.6, 1.9, 2.2, 2.4, 2.6, 3.0, 3.3.
4) Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request)
3. railway noise barrier Applications:
1)
Roofing light sheet and sunshade for office building, department store,
hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet

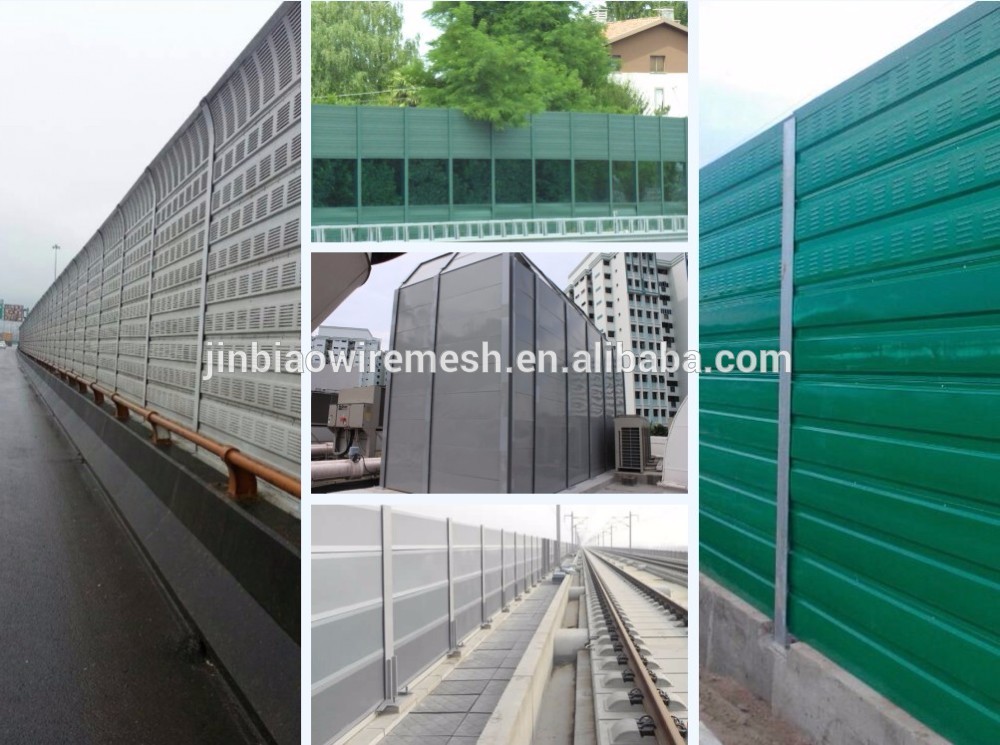

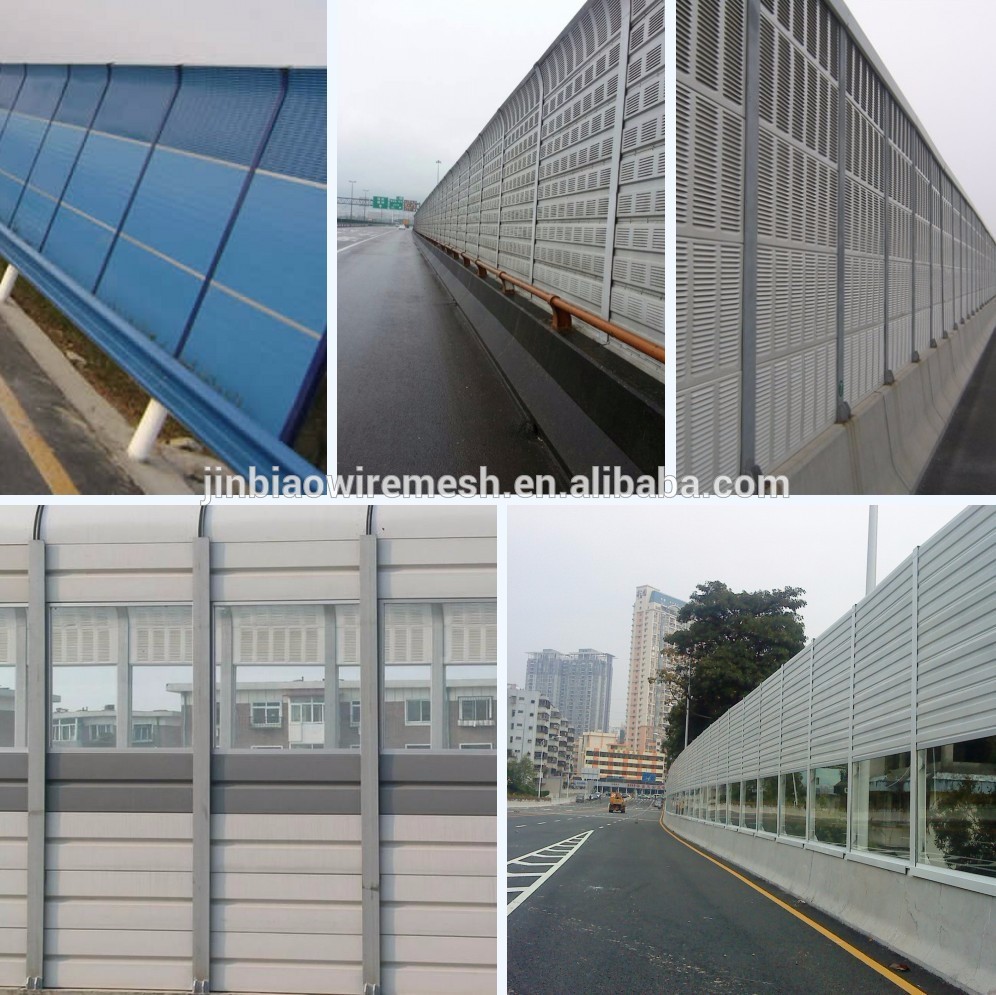

4.Pictures of the sound barriers

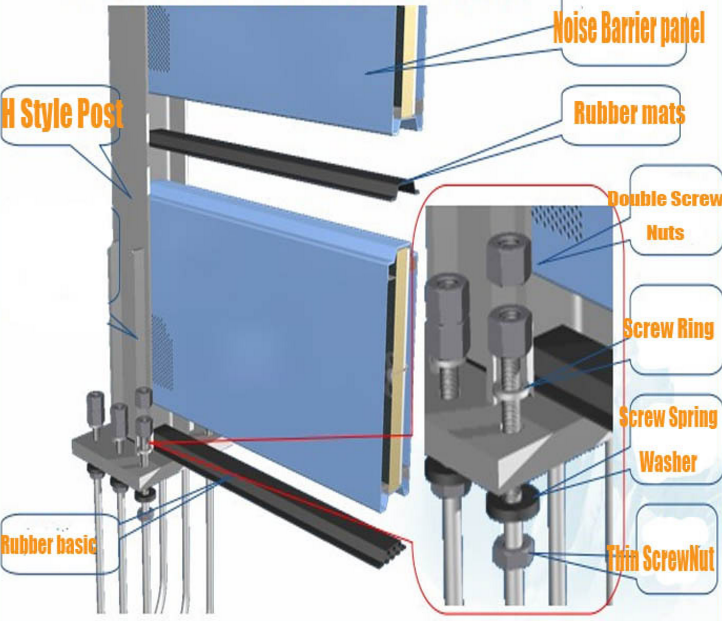

5.Installation description Drawing of noise barrier system:
