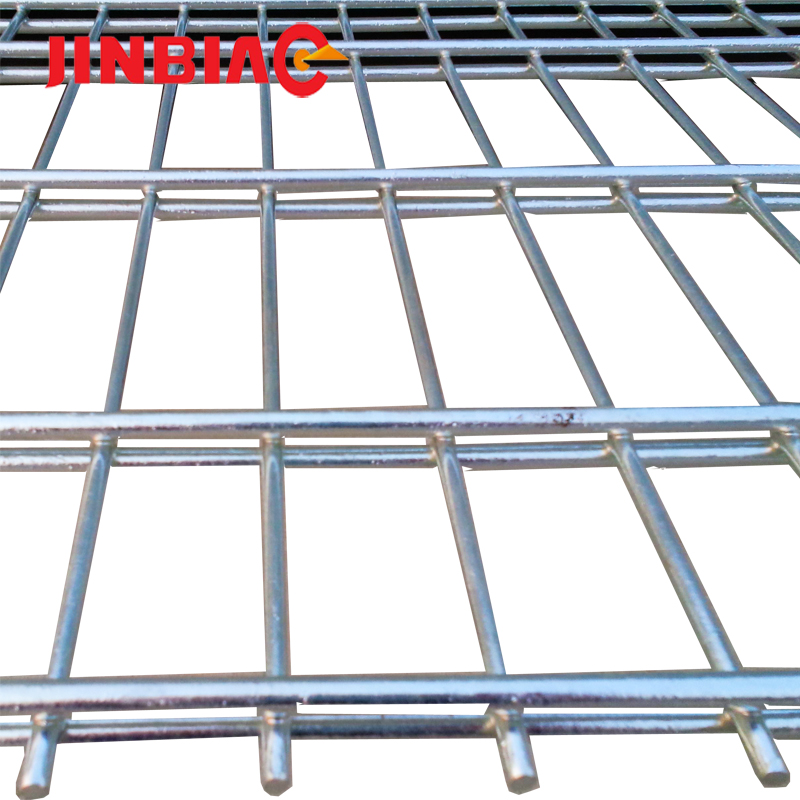

welded double wire fence

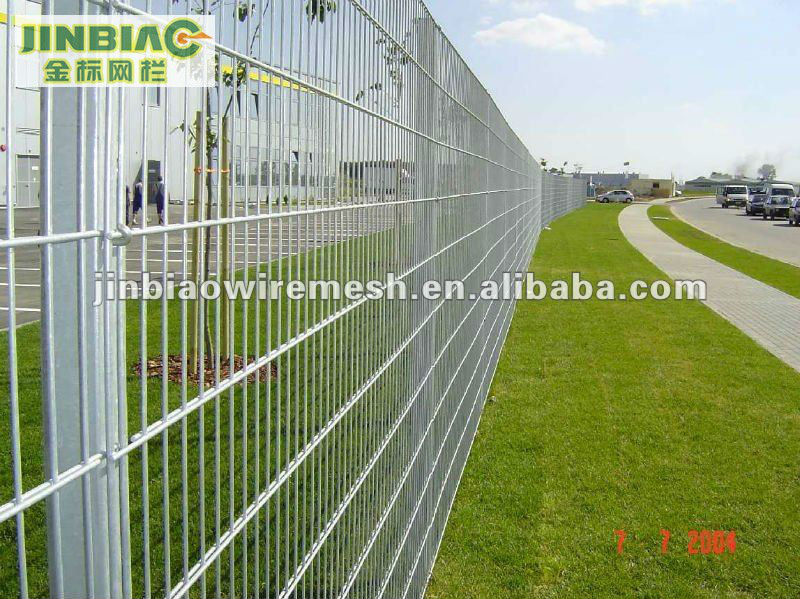

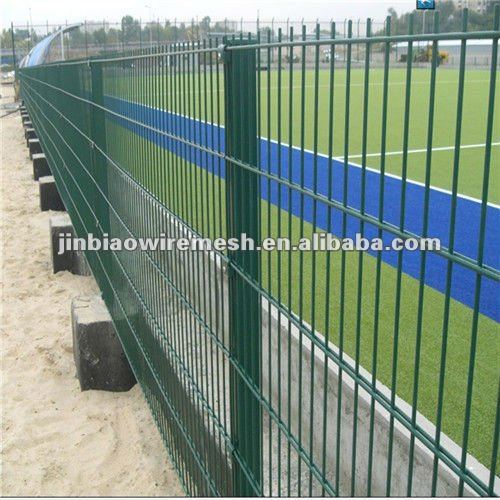

welded Double Wire Fencing System is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.

Material: high quality low carbon steel wire, galvanized wire, stainless steel wire

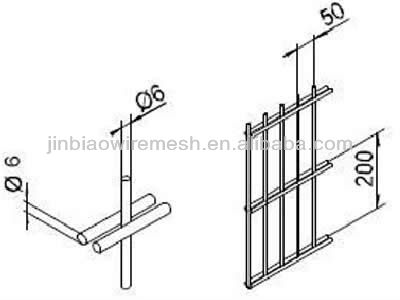

Wire Diamter: 2 x 8mm Horizontal and 6mm Vertical

2 x 6mm Horizontal and 6mm Vertical
Mesh Size: 50mmx200mm
Application: Boundary and anti intruder
STandard finish: Galvanized / PVC coated green
Other standardcolours available on request
Fence length: 2.5 Metres
Range of height: From 630mm - 2430mm

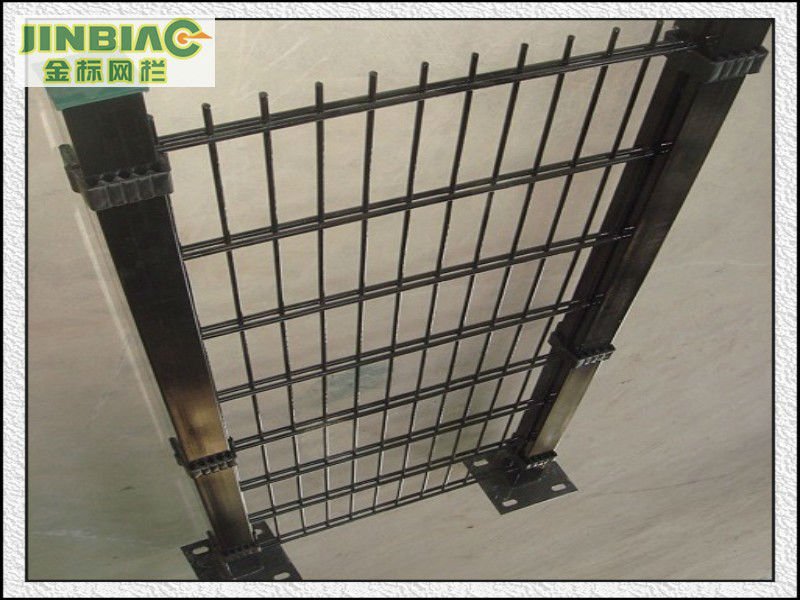

welded wire mesh fence Post:

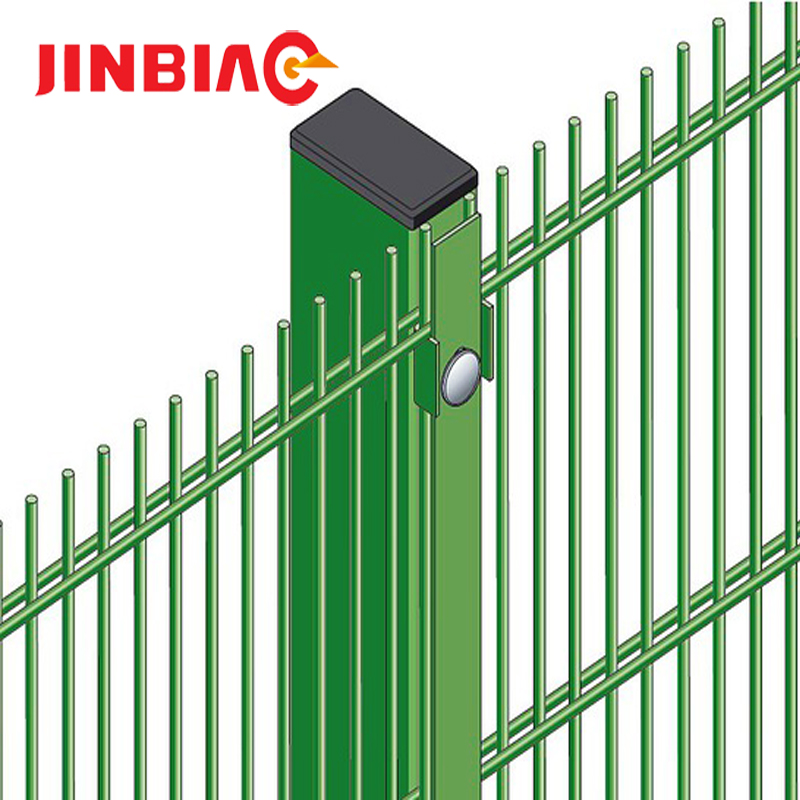

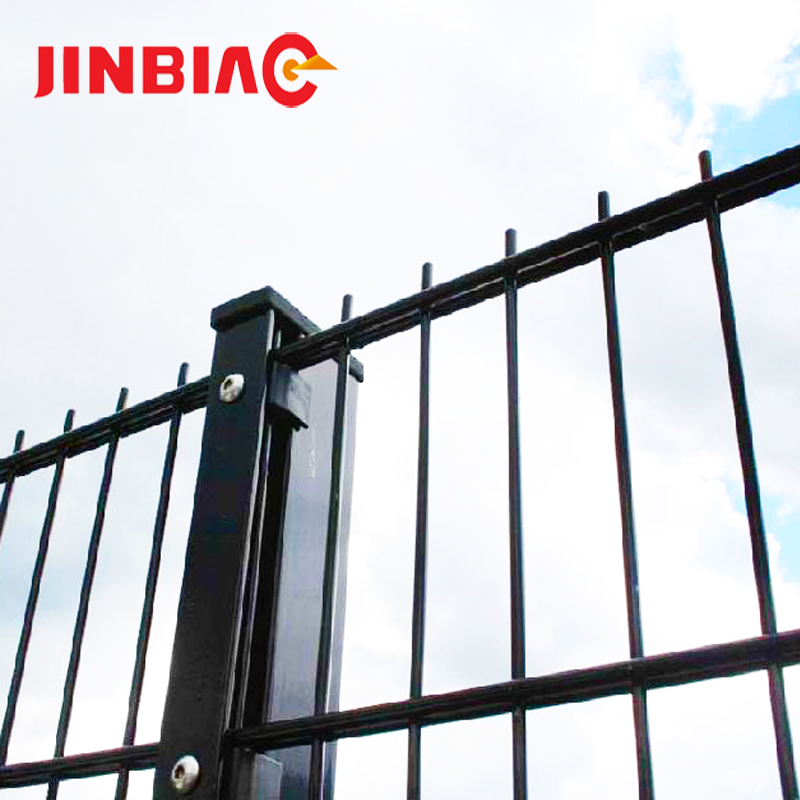

This System usually choose Square Post (50x50x2mm, 60x60x1.5mm/2mm), Rectangular Post (80*60*2. 5mm, 120*60*3mm), peach shape post(70*100mm) with the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

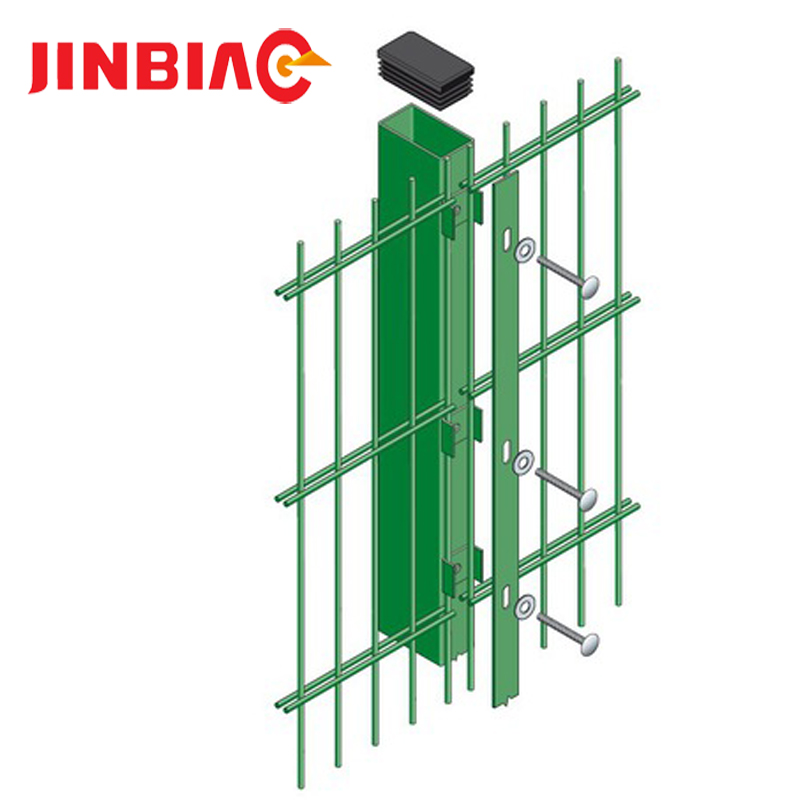

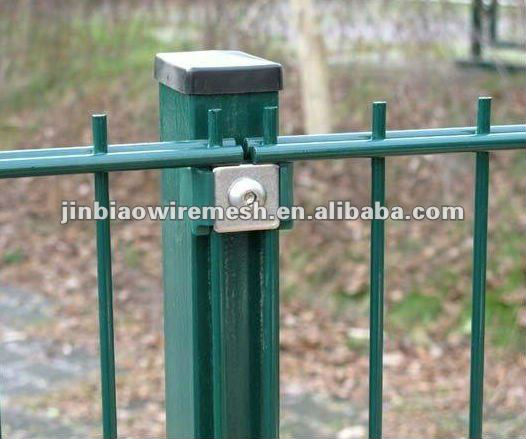

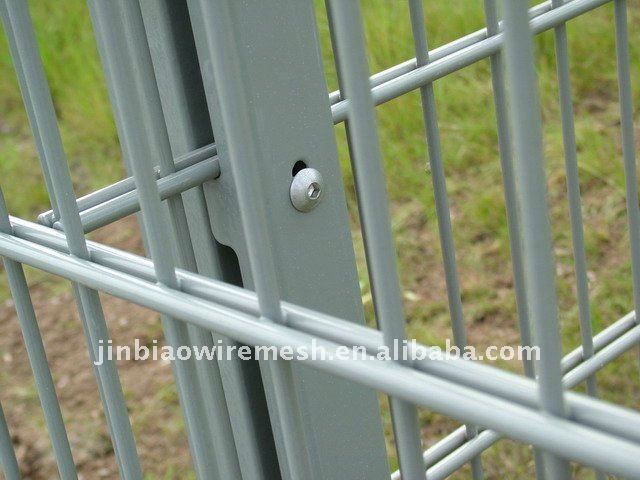

Fastenings: The Panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.

Wire Diameter	Mesh Size	Panel Height	Panel Width	Post Height	Post Type	Fittings
5/6/5mm 6/5/6mm 6/6/6mm 8/6/8mm	50x200mm 60x150mm 50x100mm	630mm	2000mm 2200mm 2500mm 3000mm	1000mm	Becaclip Post	Non clamps, Rain cap
		830mm		1200mm	Becaclip Post	Non clamps, Rain cap
		1230mm		1400mm	Square Post	Steel clamp,Plastic clamp,Rain cap
		1530mm		2000mm
		1830mm		2400mm
		2030mm		2600mm	Round Post	Steel clamp,Plastic clamp,Rain cap
