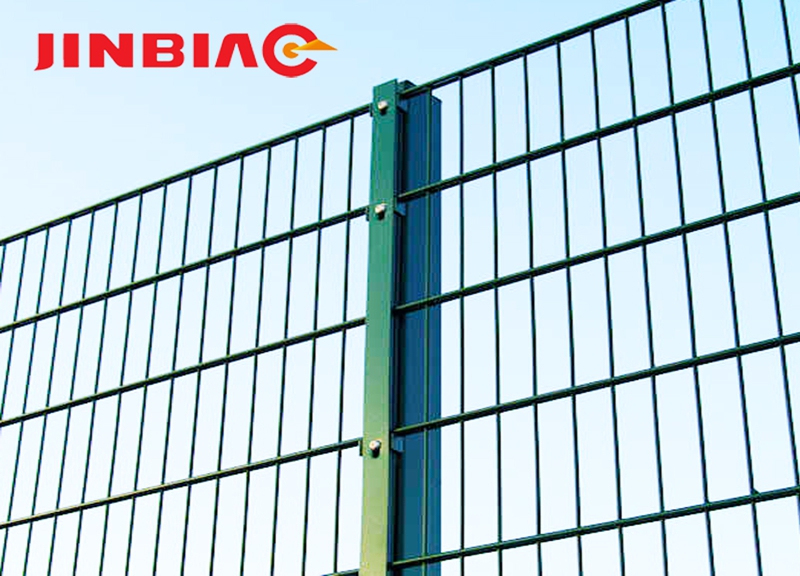

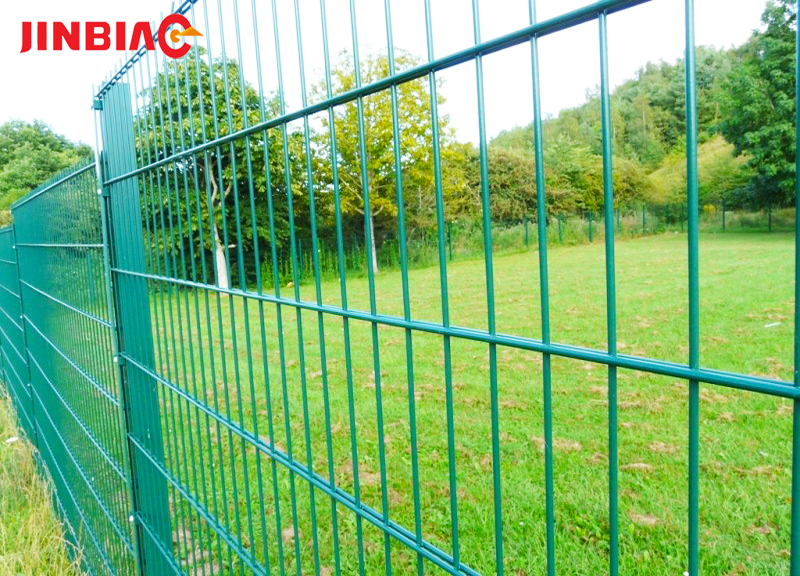

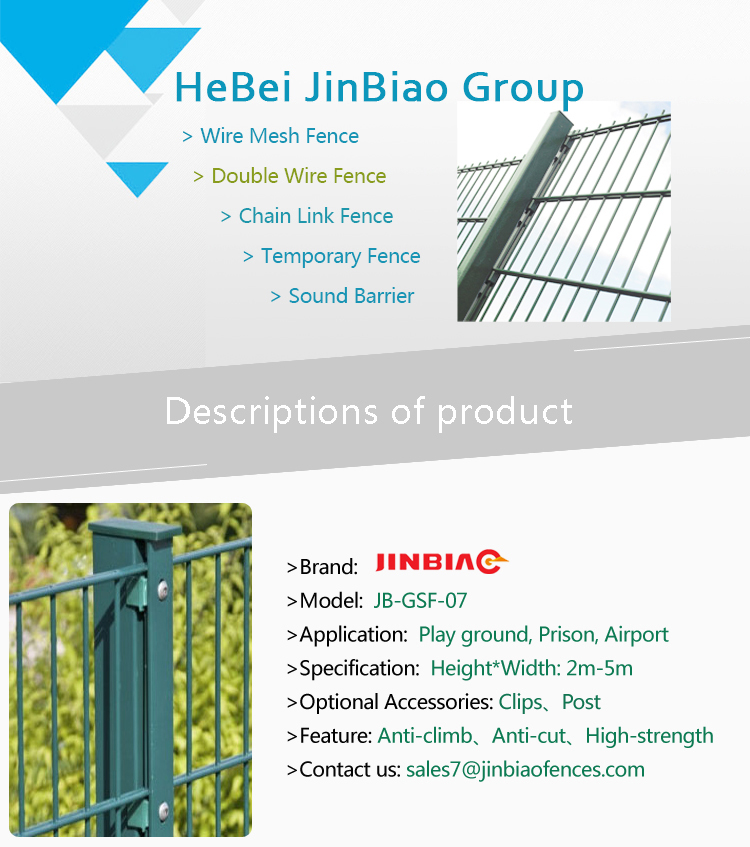

Double Wire Fence
Double Wire Fence
Material:

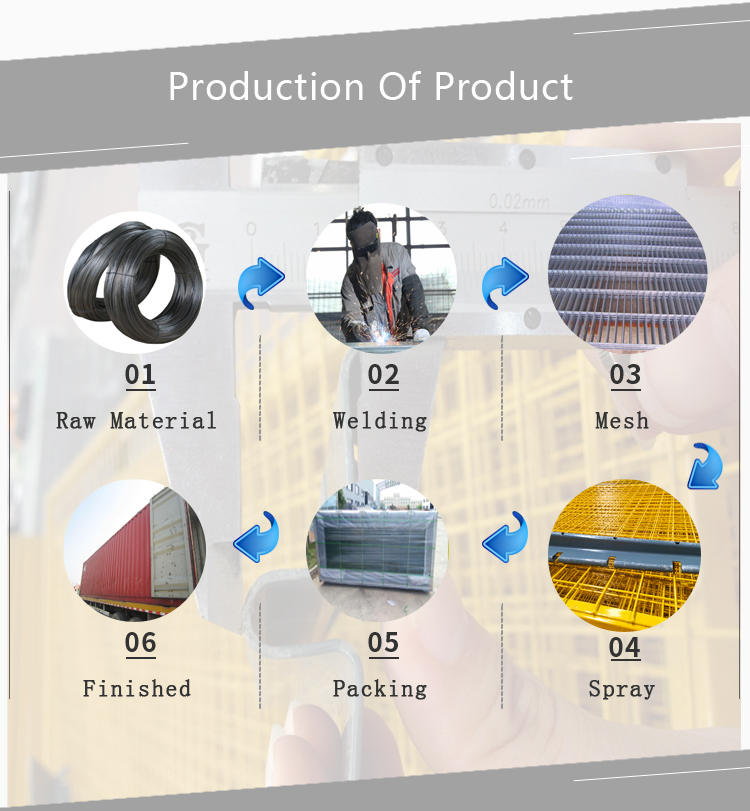

Using
high quality Iron Rod as raw material, the welded panel, after
galvanization, Powders Primer, and Powders top coating; it can resist
the corrosive and ultraviolet radiation very strongly. The thickness of
powder coating is 100-120 microns usually. The choose wire diameters are
6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the
construction.

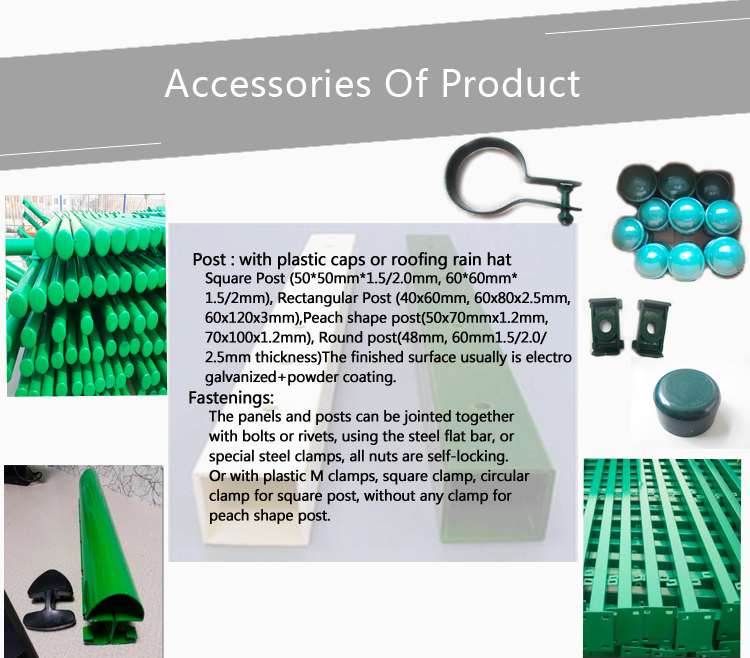

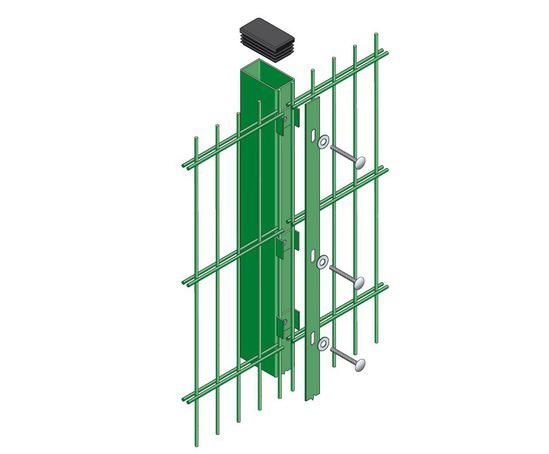

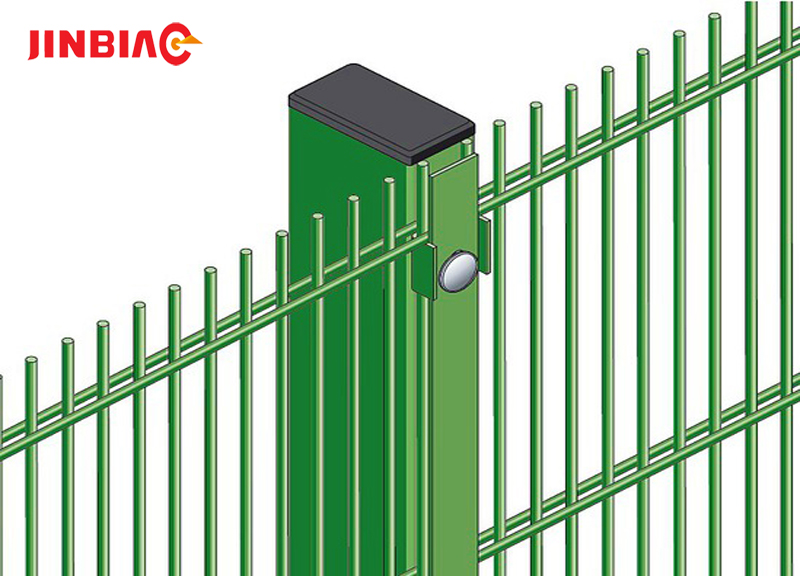

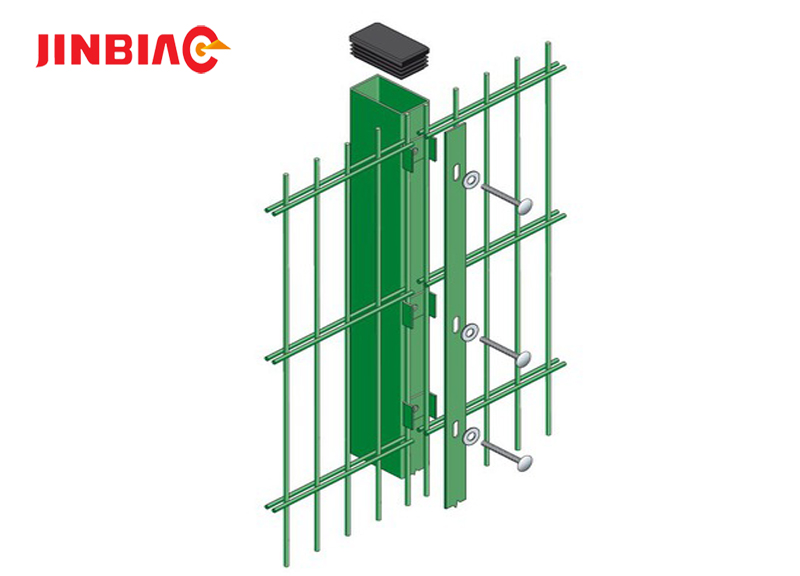

Post:
This
System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post
(80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With
plastic caps or Roofing rainhat. The finished surface usually is
Galvanized and Powder coating, or alternatively.
Double Wire Fence | |||||
Height | Mesh Size | Wire Diameter | Post of Height | ||
Wire Dia | Wire Dia | Wire Dia | |||
630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1100 |
830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1300 |
1030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1500 |
1230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1700 |
1430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1900 |
1630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2100 |
1830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2400 |
2030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2600 |
2230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2800 |
2430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 3000 |

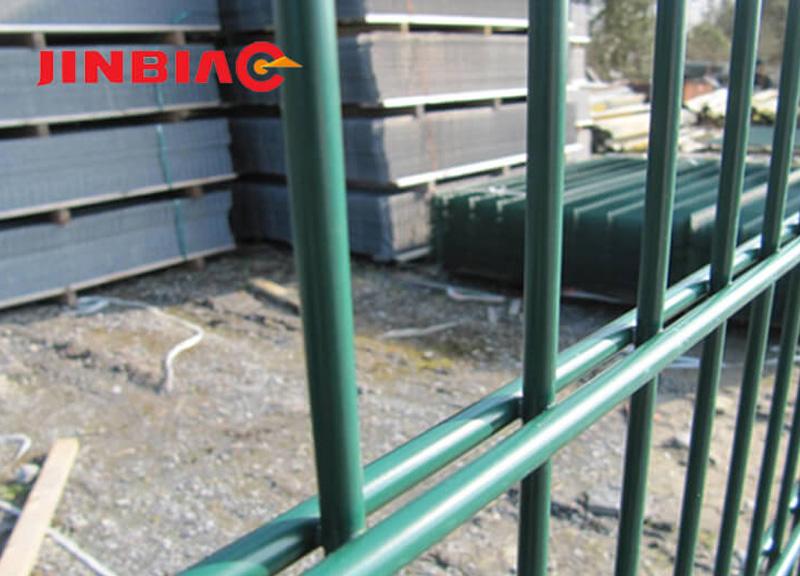

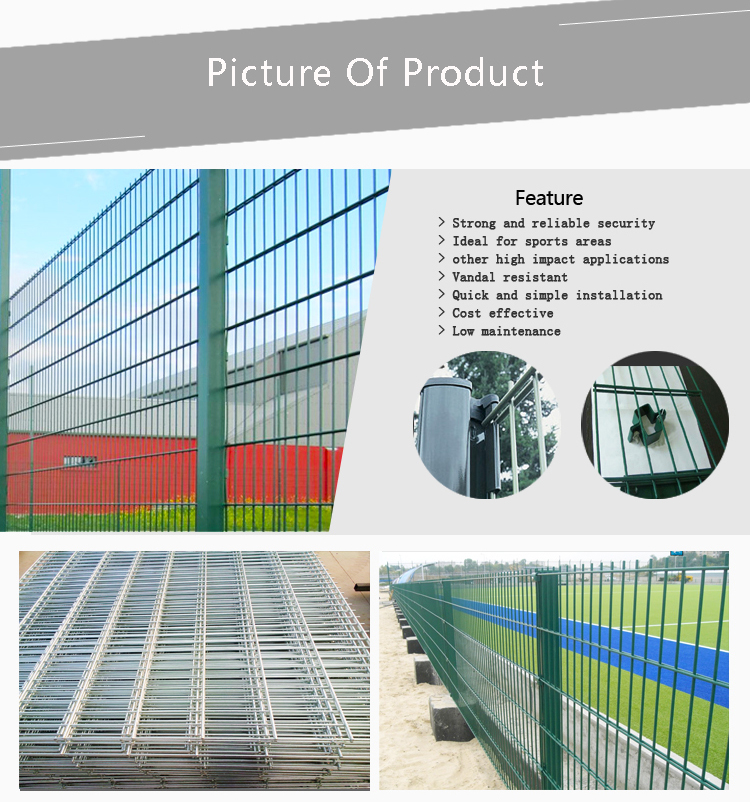

Introduction:

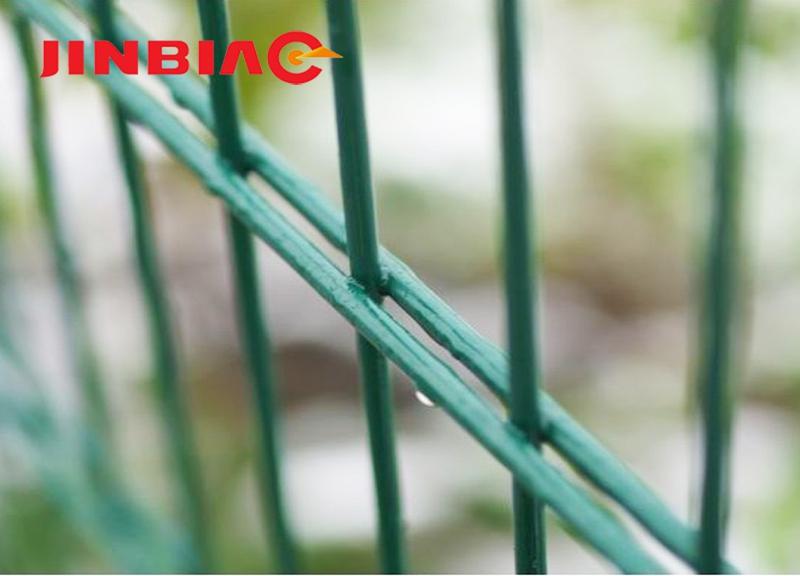

The panel is welded different, with two horizontal wires. It en:able the fence much stronge.

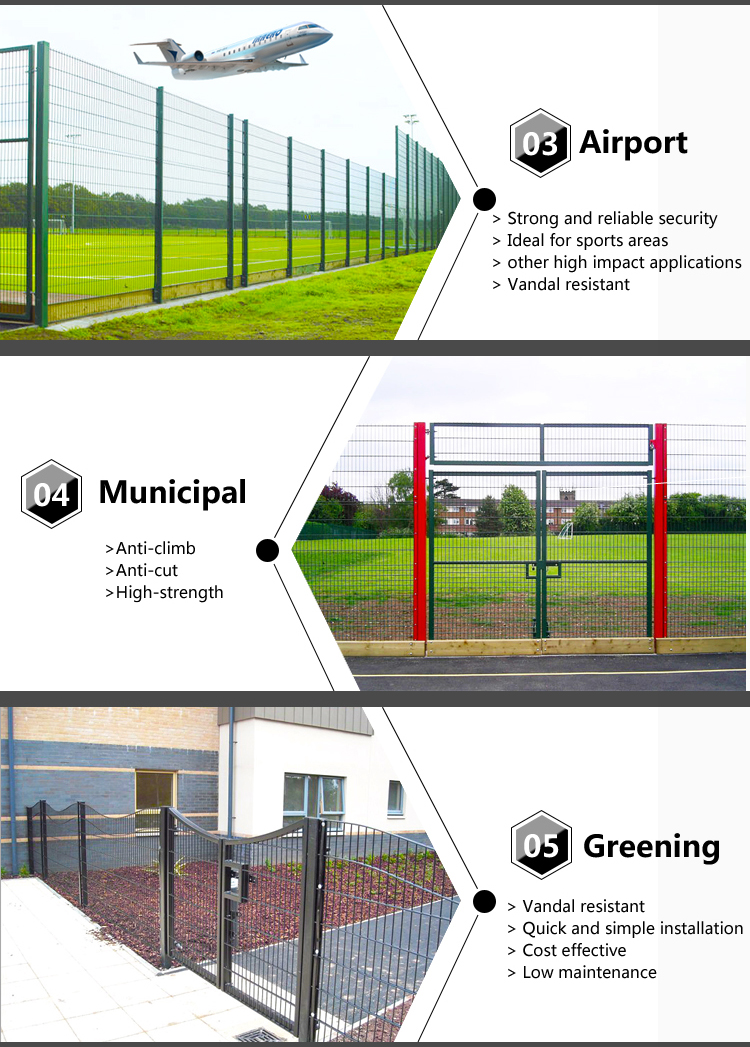

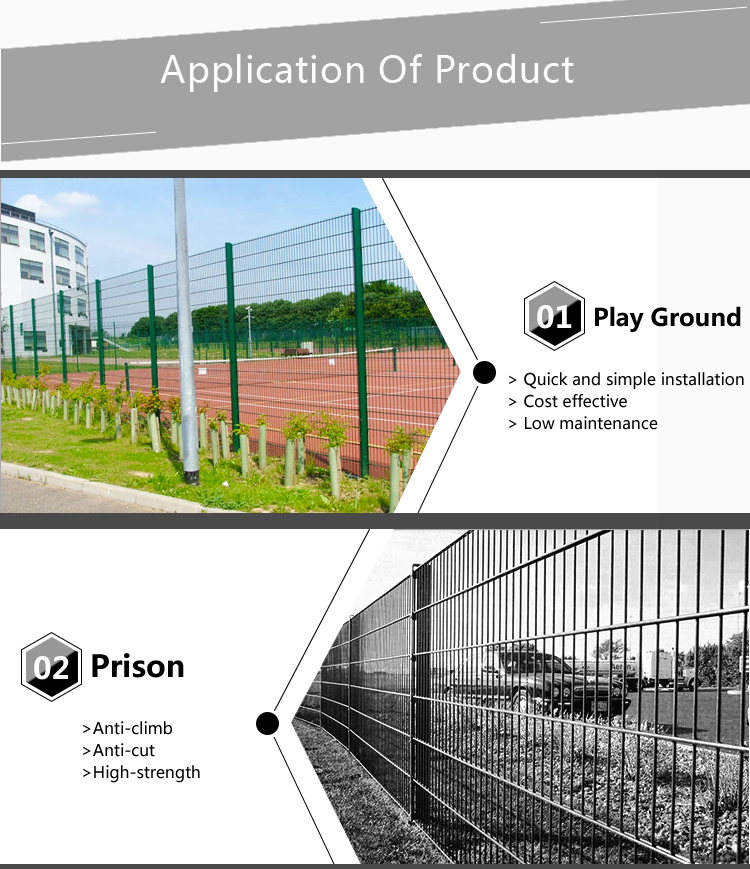

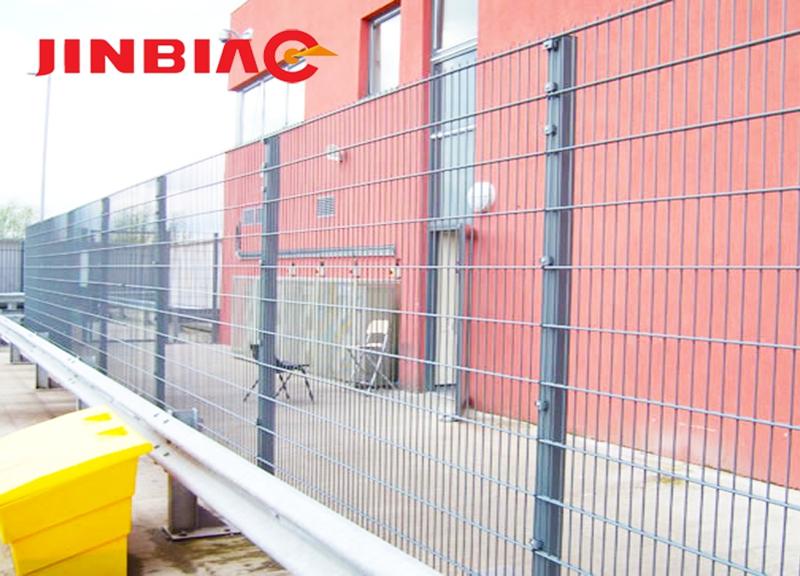

Widely used in highways,railways,airports,bridges,parks,etc.
Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns
Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.

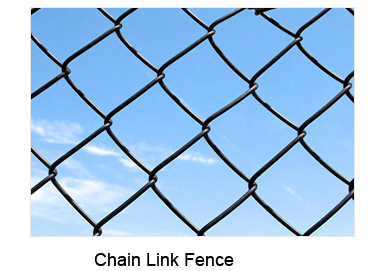

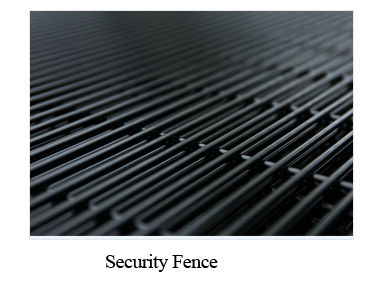

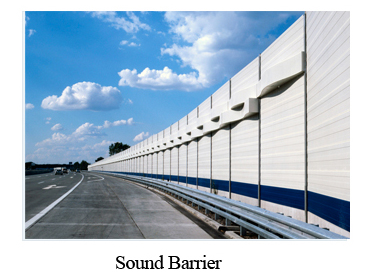

Related Product
