Double Wire Fence
Double Wire Fence

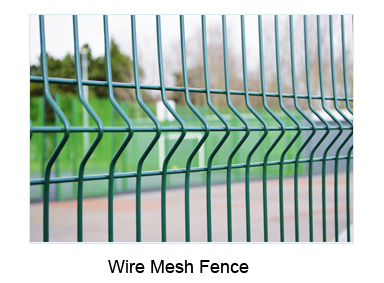

Welded Curved Wire Mesh Fence
Material: low carbon steel wire and stainless steel wire Q195,Q235.
Wire Diameter: 2.0mm--4.0mm ( before pvc coated ); 2.5mm--5.5mm ( after pvc coated )
Mesh Opening: 50x100mm,50x200mm,75x150mm,100x200mm ( others on request )
Mesh Size: Length(2000mm, 2500mm as common usual); Height(640mm-2440mm)
Surface Treatment:
PVC coated/painting
Electro galvanized or hot-dip galvanized after welding of steel wire;
Welding of steel wire after PVC coated/painting
Electro galvanized or hot-dip galvanized;
Electro galvanized or hot-dip galvanized after welding of steel wire and then PVC coated.
Application:
Commercial grounds (Corporation, hotel, supermarket);
Private grounds (Courtyard, Villadom);
Public grounds (Park, zoo, train or bus station, lawn);
Road and transit (Highway, railway or road city transit);
Used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, transport, etc.
Mesh Size : 50mm x 200mm(other mesh size on request) | |||
Height | Length | Curve | Weight |
0.63m | 2.00m | 2 | 3.76kg |
0.83m | 2.00m | 2 | 4.85kg |
1.03m | 2.00m | 2 | 5.95kg |
1.23m | 2.00m | 2 | 7.05kg |
1.43m | 2.00m | 2 | 8.15kg |
1.63m | 2.50m | 3 | 11.67kg |
1.83m | 2.50m | 3 | 13.04kg |
2.03m | 2.50m | 4 | 14.51kg |
2.23m | 2.50m | 4 | 15.88kg |
2.43m | 2.50m | 4 | 17.18kg |
Surface Treatment: Electric galvanized and PVC coated, hot dipped galvanized and PVC coated, PVC coated without galvanized. | |||
![]PP6I0JV~J%LFYG304)MT[P](ueditor/php/upload/image/20180115/1515995334219968.jpg)
Material:
Using
high quality Iron Rod as raw material, the welded panel, after
galvanization, Powders Primer, and Powders top coating; it can resist
the corrosive and ultraviolet radiation very strongly. The thickness of
powder coating is 100-120 microns usually. The choose wire diameters are
6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the
construction.

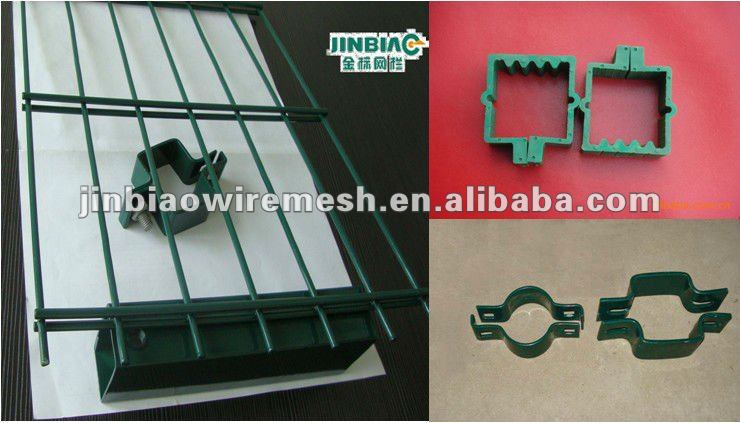

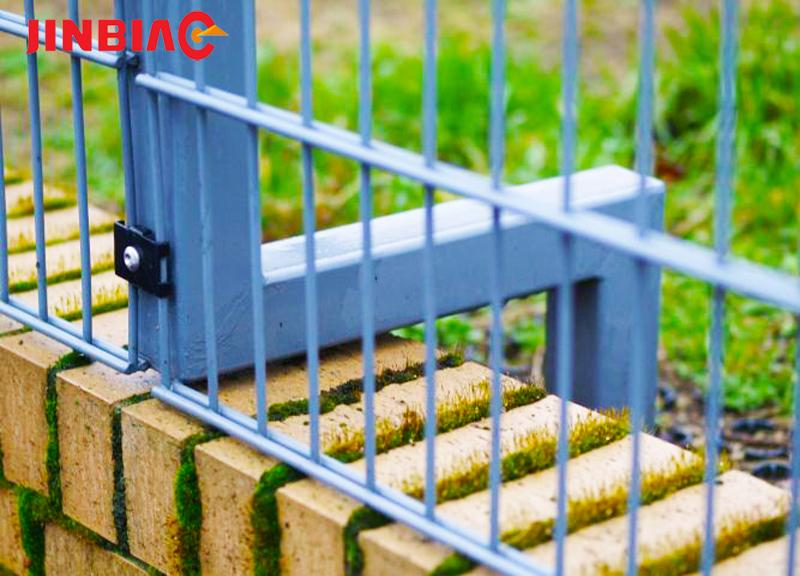

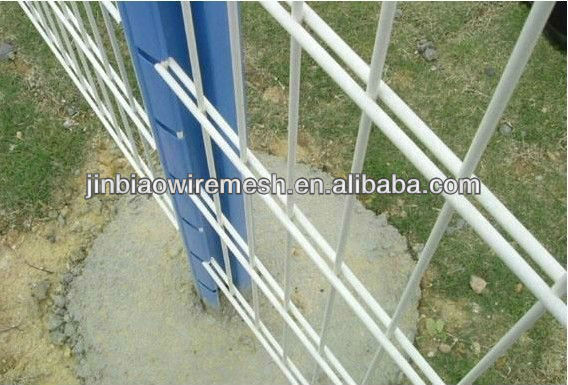

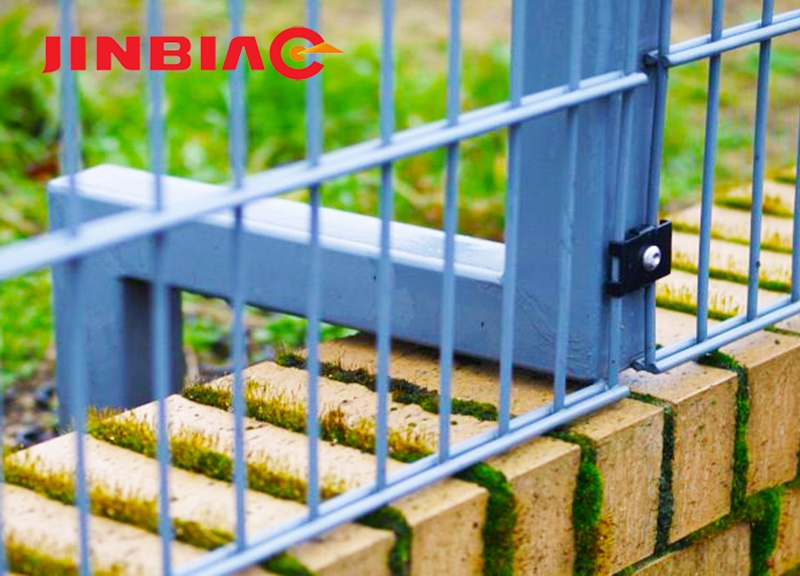

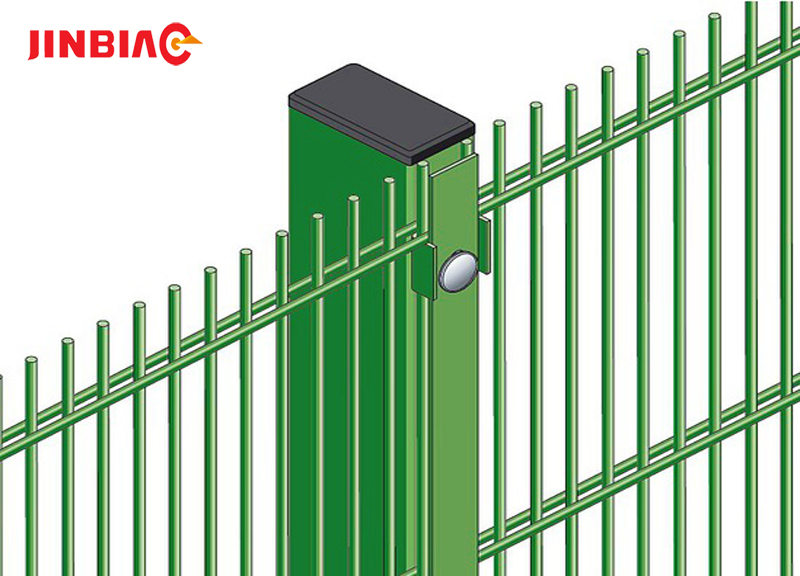

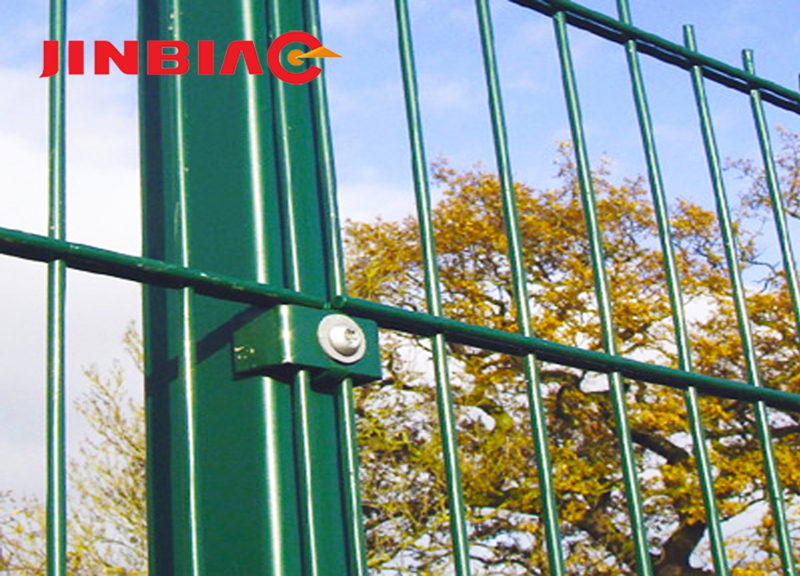

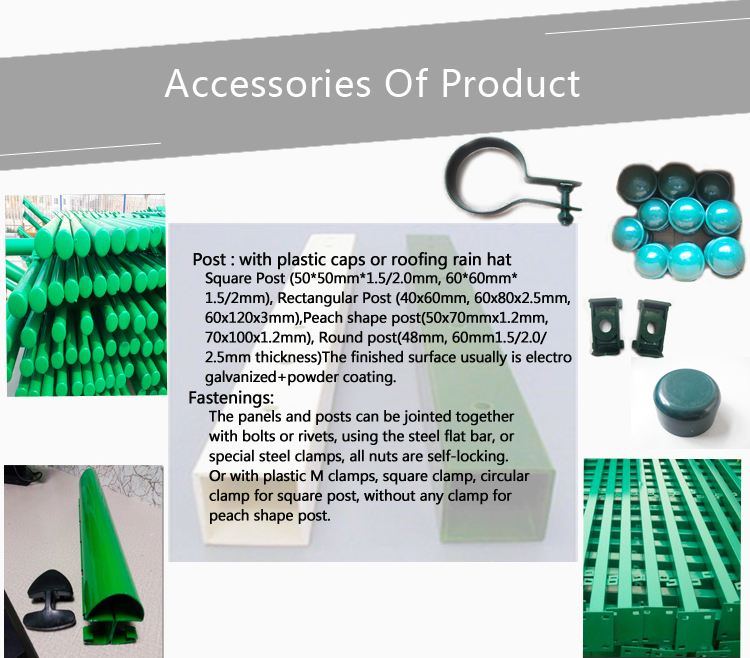

Post:
This
System usually choose Square Post (50*50mm, 60*60mm), Rectangular Post
(80*60*2. 5mm, 120*60*3mm) With the high strength and so on. With
plastic caps or Roofing rainhat. The finished surface usually is
Galvanized and Powder coating, or alternatively.

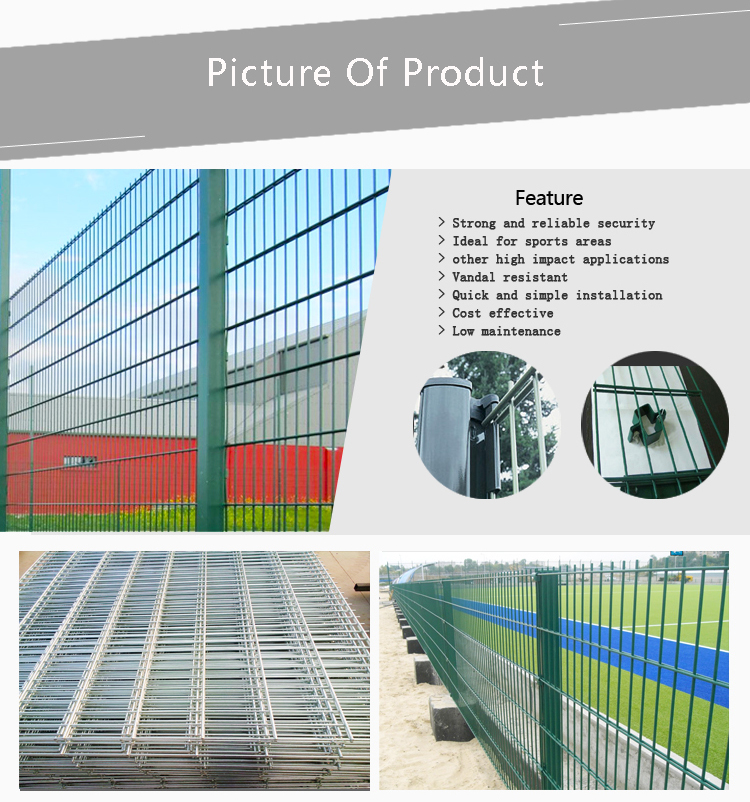

Double Wire Fence | |||||
Height | Mesh Size | Wire Diameter | Post of Height | ||
Wire Dia | Wire Dia | Wire Dia | |||
630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1100 |
830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1300 |
1030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1500 |
1230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1700 |
1430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1900 |
1630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2100 |
1830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2400 |
2030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2600 |
2230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2800 |
2430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 3000 |

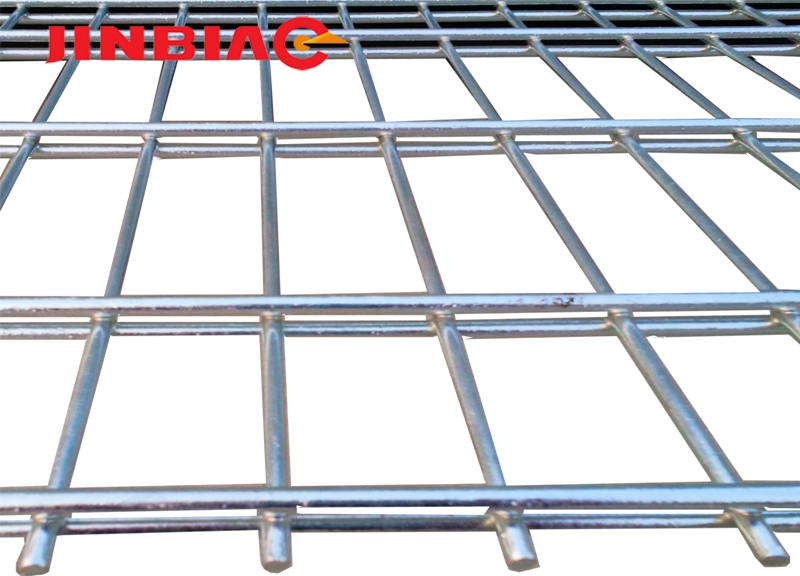

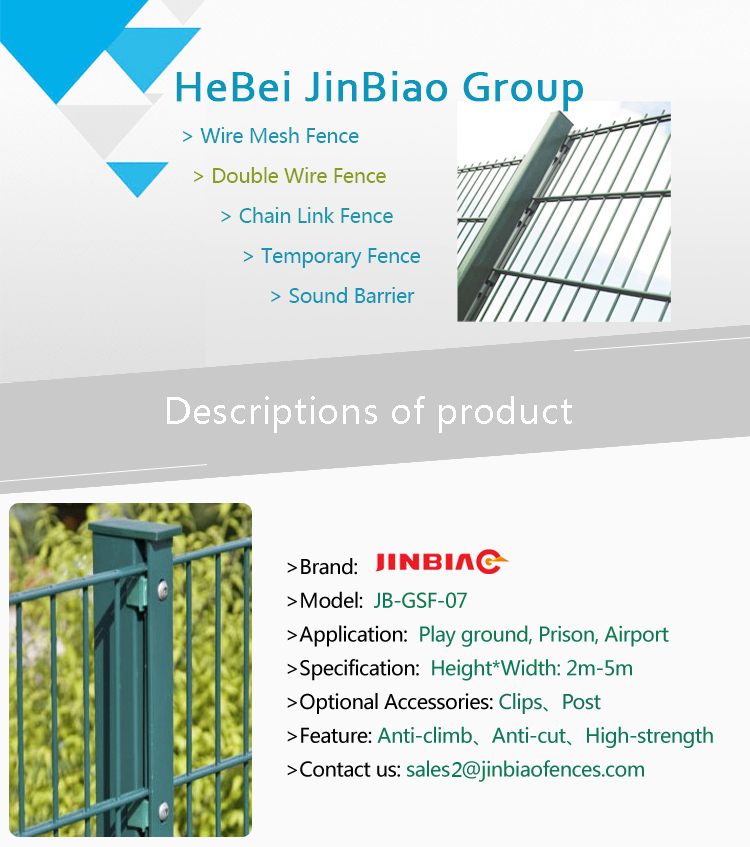

Introduction:
The panel is welded different, with two horizontal wires. It en:able the fence much stronge.

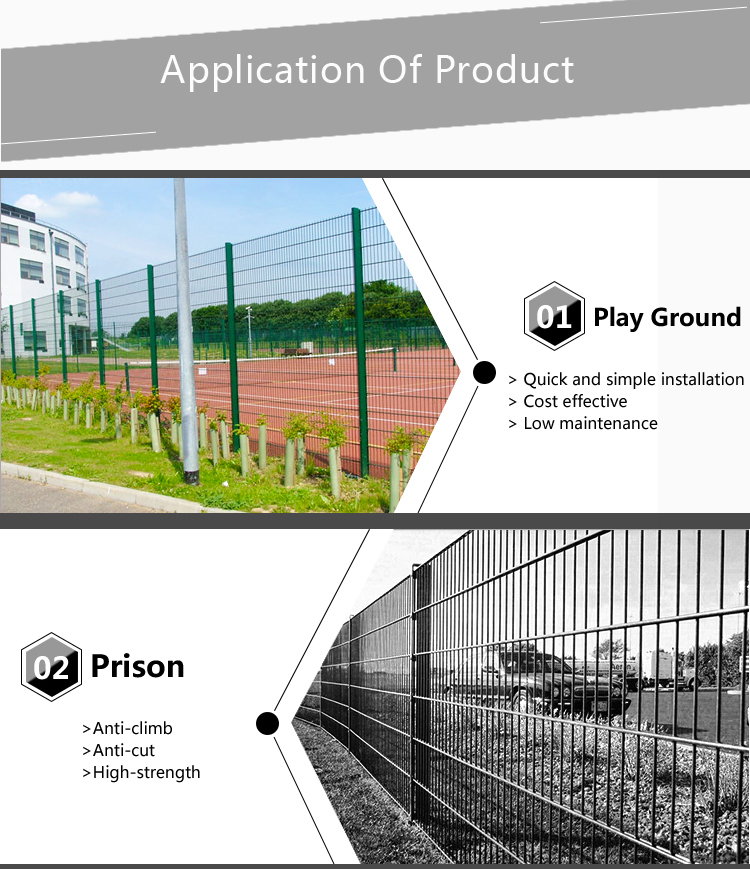

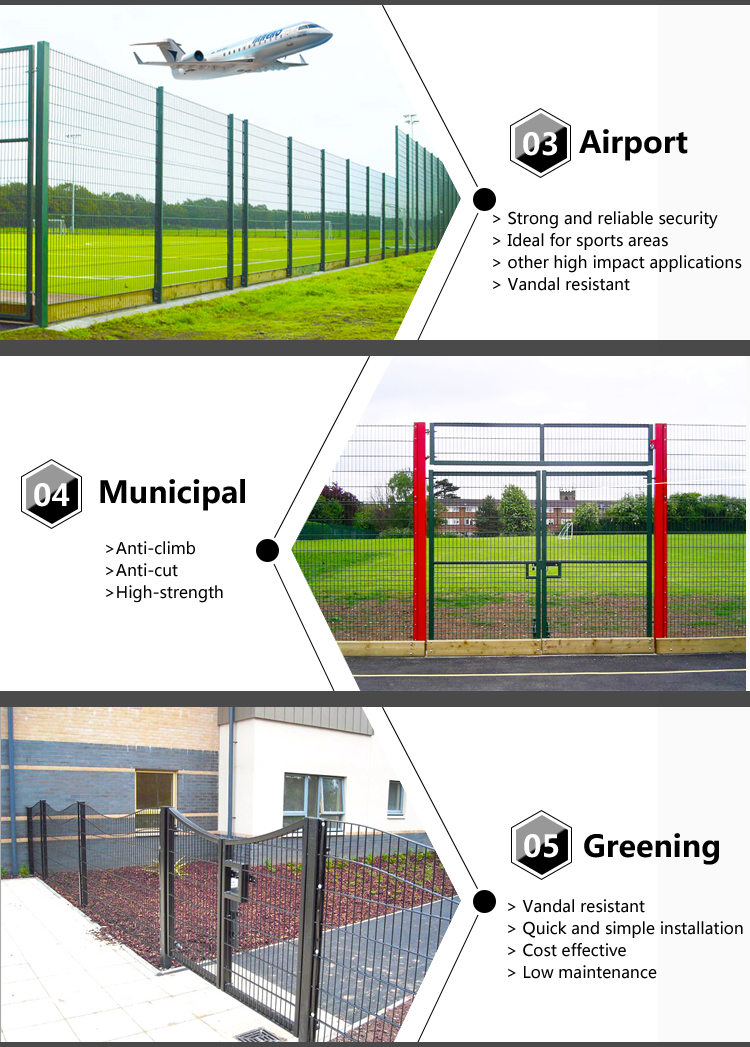

Widely used in highways,railways,airports,bridges,parks,etc.
Surface Treatment:
Electric Gal.: 40~60g/sq. M.
Hot dipped Gal.: 40~500g/sq. M.
Powders spread coating: 160~240 microns
PVC/PE dipped coating: 600~1000 microns
Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.
