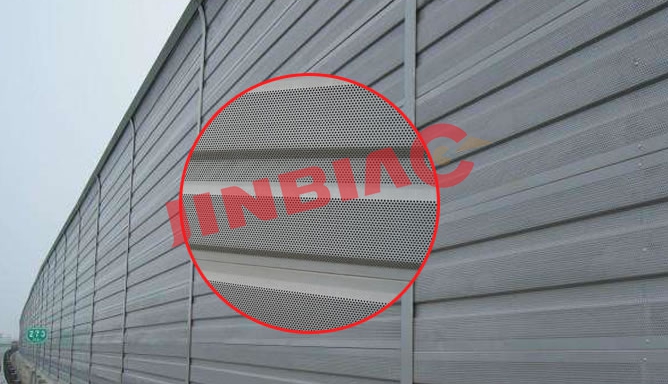

China JINBIAO Metal microporous noise barrier manufacturer

China JINBIAO Metal microporous noise barrier manufacturer

Numbering：JB-M-MNB-01

Material：Galvanized sheet, Aluminum alloyPayment

Shipping：Sea transport, Air freight, Railway, Truck

Service：Sample, Customized, Drawing

Certificate：CE, ISO, TUV, SGS, BV, etc

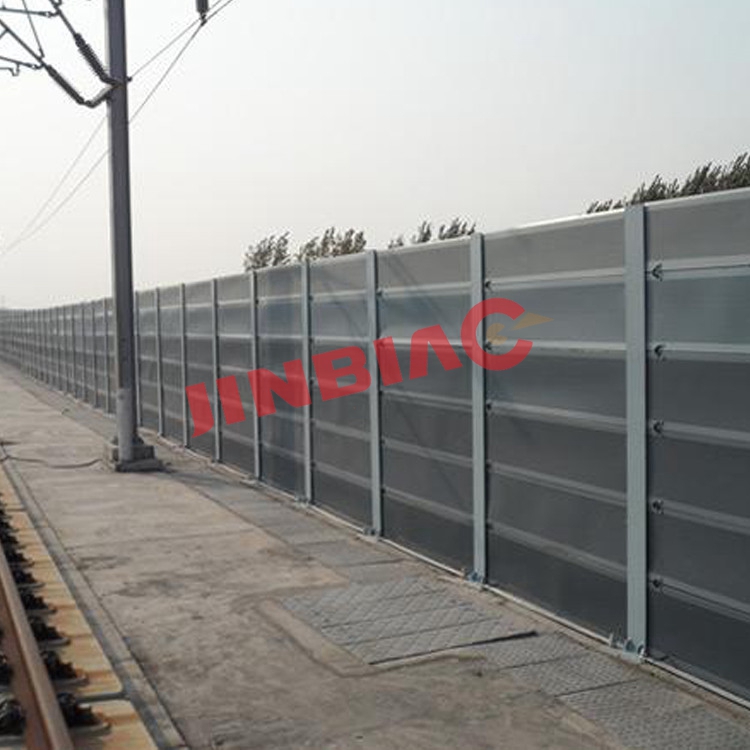

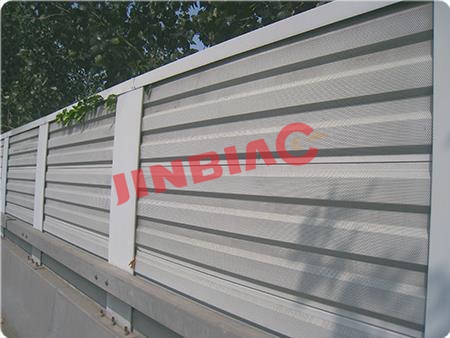

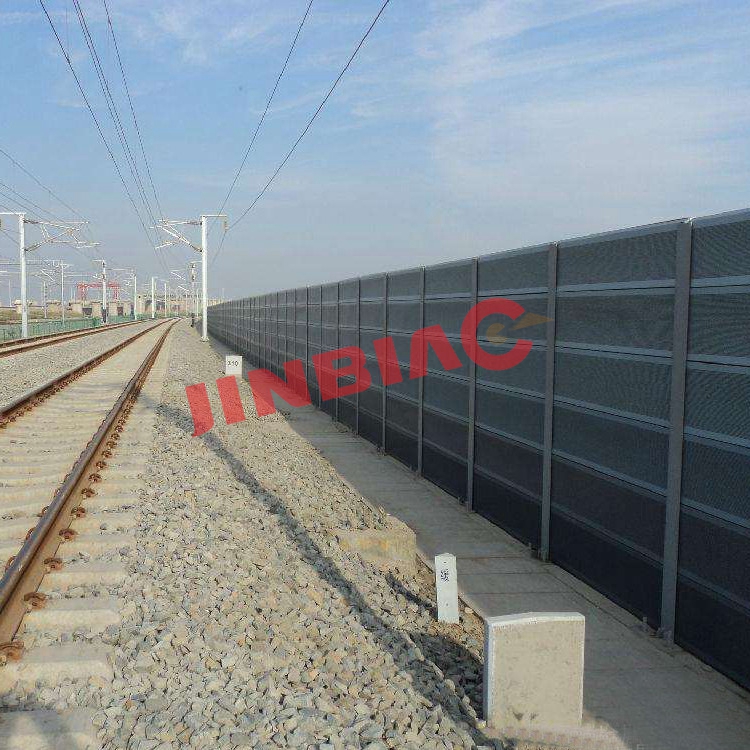

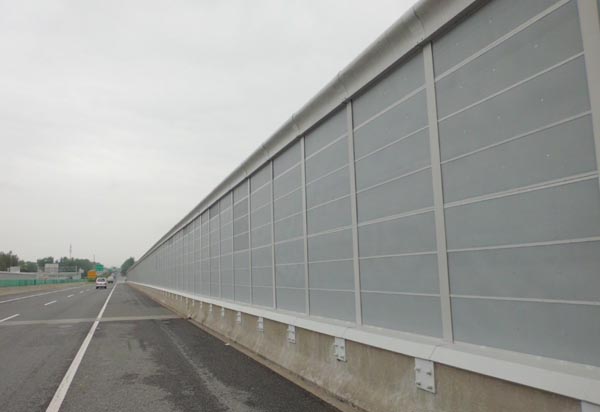

Application：Road, railway, factory，Building construction noise, Urban area，etc.


An important advantage of the JINBIAO design is the fact that the panels are made of aluminum or galvanized sheet. They are self-supporting and therefore don’t need an additional frame. This has a positive impact in the pricing.
A double-sided EPDM-sealing provides continuous soundproofing. And every individual panel can be exchanged and replaced without any problems if damage should occur.

Also transparent panels are possible

JINBIAO does not only guarantee high noise absorption, but it also provides excellent views due to its transparency. Embedded polyamide threads offer a maximum safety standard and are mainly applied for noise barrier on bridges in case of need.

Specification

Noise Barrier Specification

· Material:

1. Metal type: galvanized metal sheet, aluminum sheet.

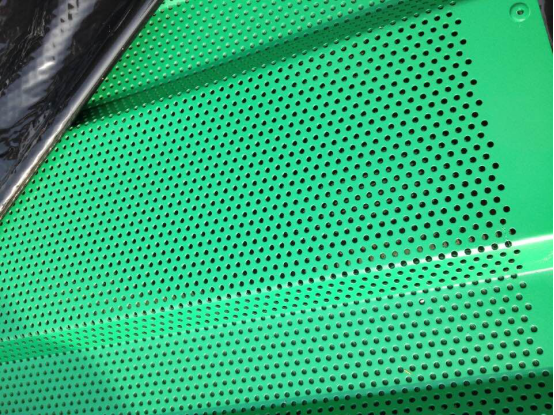

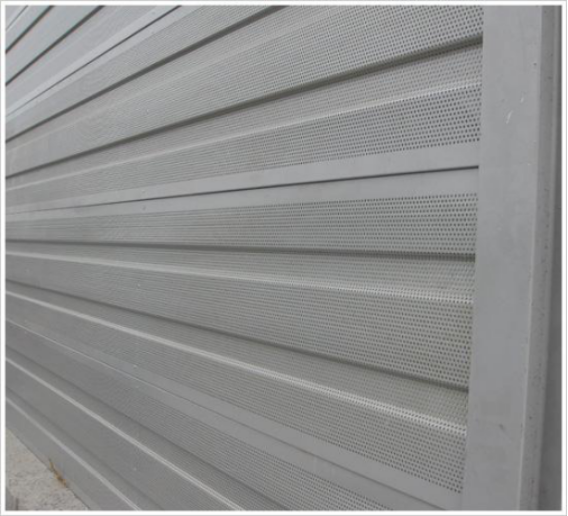

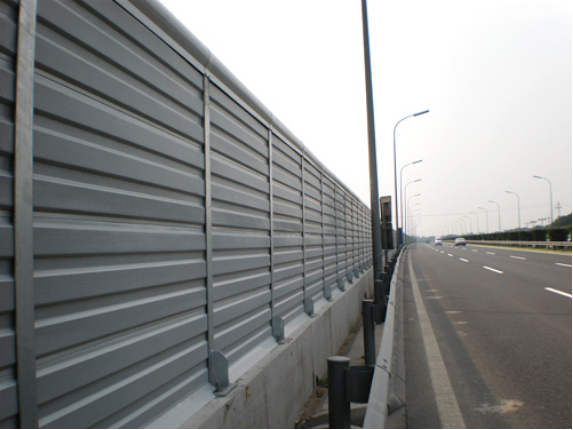

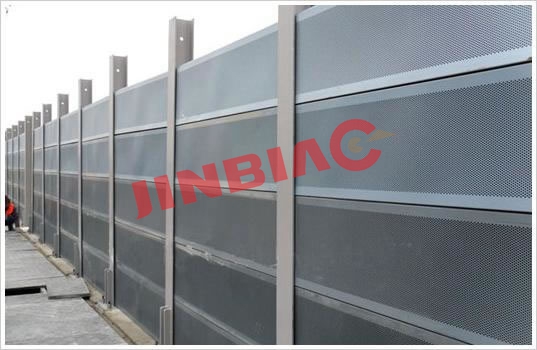

Appearance: shutter type, punching type.

Colors: clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request
2. Transparent sheet: PC, PMMA

· Noise Barrier Size and Specification:

Noise Barrier panel thickness: 80mm, 100mm,120mm

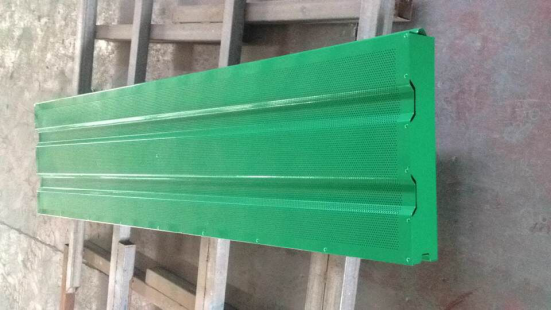

Noise Barrier panel size: 2500x500x80mm, 2500x500x100mm, etc.
Noise Barrier metal plate thickness: 0.5-1.5mm
Noise Barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Noise Barrier H-post flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.


Technology

Noise Barrier Technical

Specifications and technical parameters
Size	Performance and testing project	Test Standards	Test Results
Length: can be customized Height: 500mm Thickness: 80mm-140mm	Noise Reduction Coefficient	GBJ47-83	NRC=0.84
	Fire rating	GB/T13350-2000	A Level(Noncombustible)
	Insulation	GB/T13350-92	≤0.042VV(M.K)
	Soundproofing	GB/T13350-2008	≥50db
	Sound absorption coefficient	GB/T13350-2008	>0.863


Features Benefits

Advantages of JINBIAO Sound Noise Barrier System:

· Highly absorptive noise barrier system

· Easy installation or maintenance replacement

· Can be incorporated with other materials

· Can be easily relocated

· Minimum repair required only damaged panels to be replaced

· Fits standard support post systems

· Standard/custom modular sizes

· Manufacturing is consistent

· Custom panel sizes and shapes

· Choice of colours

· Framed clear or coloured acrylic

· Pre-printed graphics

· Using security cables on bridges and slopes are at lower risk

· Fire resistant

· Maintenance free

· Low life cycle costs

· Factory applied Anti-graffiti coating
