March. 21, 2018

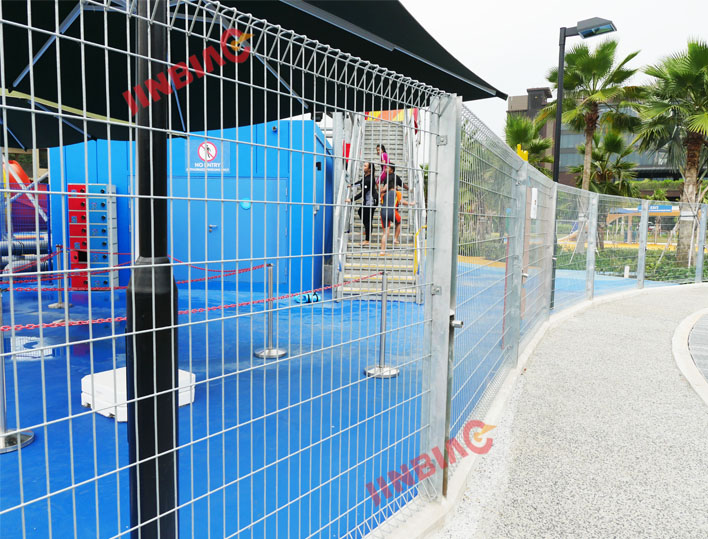

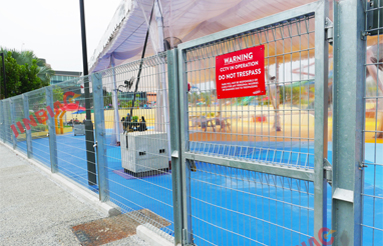

Singapore playground triangle folding fence project
Project time: November, 2017
Number of this Project: 800square meters

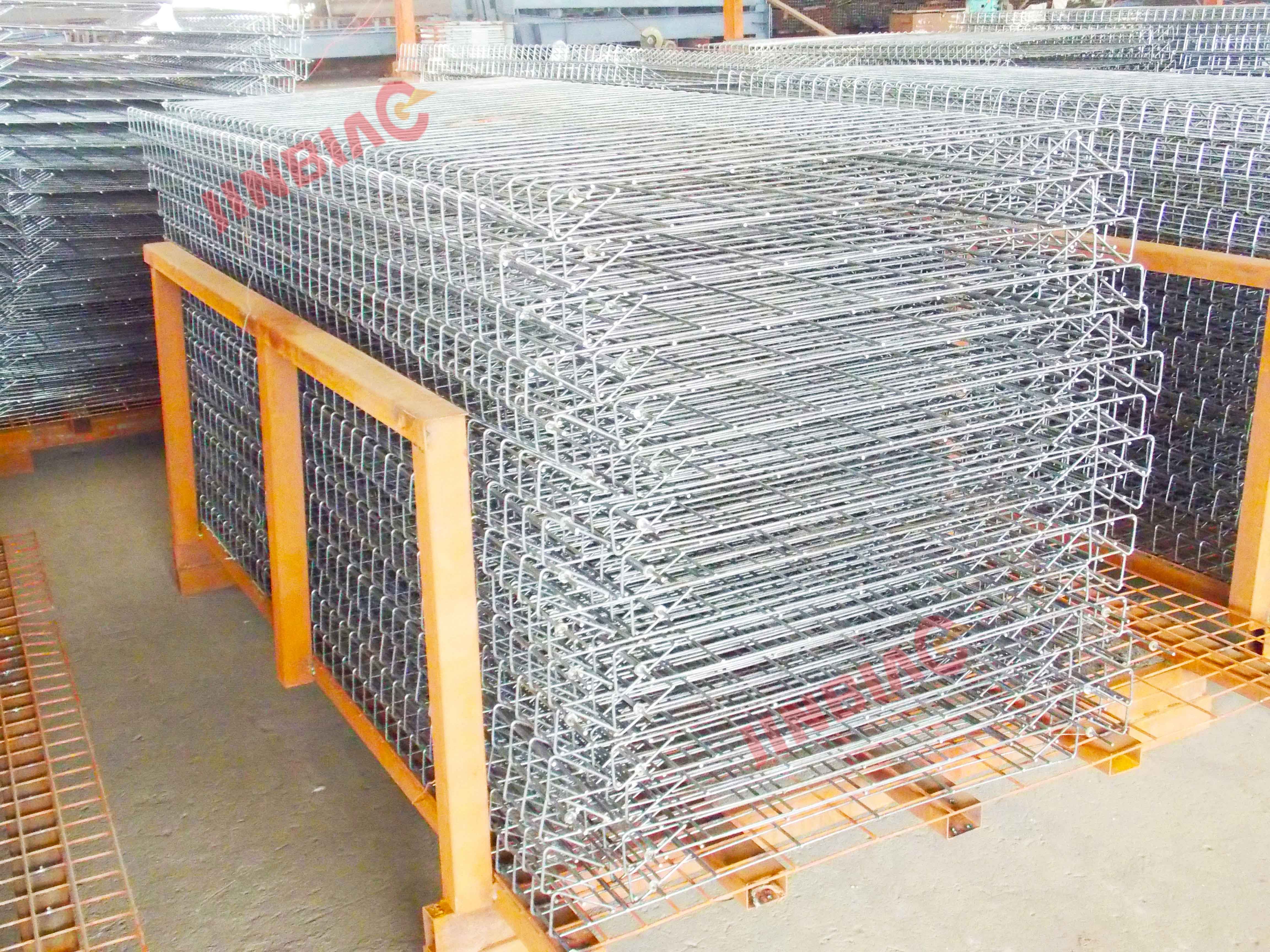

Triangle bended fence is one kind of welded mesh fence. It folds the top of the fence into triangle in order to strengthen it. It is not only beautiful, but very strong.
1.Triangle Bended Fence material: galvanized steel wire, stainless steel wire, low carbon wire.
2.Triangle Bended Fence Surface treatment: hot-dipped galvanizing, pvc coated, electro galvanizing
3.Making process of triangle bended fence:
raw material--wire drawing--straightening--cutting to length--welding net/weldingframe--assembly welding--galvanized--shoting blasting--pvc dipping--loading
4. Specification of Triangle Bended Fence Panel
Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
0.63m |
2.0m 2.5m |
Gal+PVC Painting 3.85mm/4.0mm 4.85mm/5.0mm 5.85mm/6.0mm Gal+PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm 5.0mm/6.0mm |
50*100mm 50*200mm 50*150mm 55*100mm 55*200mm 60*150mm 75*100mm | |
0.83m | ||||
1.03m | 2 | |||
1.23m | 2 | |||
1.5m | 3 | |||
1.53m | 3 | |||
1.7m | 3 | |||
1.73m | 3 | |||
1.8m | 4 | |||
1.93m | 4 | |||
2.0m | 4 | |||
2.03m | 4 | |||
2.4m | 4 |
5. Specification of post
Post Style | Post Size | Post Thickness |
Rectangle shape | 40*40mm | 1.5, 1.7 , 2.0, 2.5, 3.0mm |
60*60mm | 1.5, 1.7 , 1.8 , 2.0, 2.5, 3.0mm | |
40*60mm | 1.5, 1.7, 1.8, 2.0, 2.5, 3.0mm | |
Peach shape | 50*70mm | 1.0, 1.1 , 1.2mm |
70*100mm | 1.0, 1.1 , 1.2mm | |
Round shape | 38mm | 1.2mm |
We producted films galvanized by welding solid network ,mesh uniform,a good quality network coverage formation as the best option for customers,global product marketing.Professional team for your service, welcome to buy.
