Installing a chain link fence is a practical and cost-effective solution for securing your property, marking boundaries, or enhancing privacy. Whether you’re looking to install a fence for a backyard, a business, or a larger property, chain link fences offer durability and long-lasting performance. This guide will take you through the steps to install a chain link fence, providing you with the knowledge and tools needed to get the job done right.
Before starting the installation process, it’s important to gather all the necessary materials and tools. Here’s a list of what you’ll need:
Chain link fabric – The actual wire mesh of the fence
Fence posts – These support the structure of the fence
Top rails – Horizontal bars that connect the fence posts
Gate hardware – For installing gates (if needed)
Post hole digger – To dig holes for the fence posts
Shovel – For digging and clearing debris
Concrete – To secure the posts in the ground
Measuring tape – For accurate measurements
Level – To ensure posts are installed vertically
Wrenches – To tighten bolts and fasteners
Wire cutters – To cut the chain link fabric
Fencing clips or ties – To attach the fabric to the posts
Make sure you have all the materials before starting to ensure a smooth installation process.
The first step in any fence installation is to plan your layout. Measure the area where you want the fence to go and mark the locations of each fence post. This will ensure that the fence is installed in a straight line and the posts are spaced evenly. Here's how to plan your layout:
Measure the perimeter: Use a measuring tape to determine how much fencing material you'll need and to mark where the posts will go.
Spacing of fence posts: Typically, fence posts are spaced about 6 to 10 feet apart, depending on the height of the fence and local regulations.
Mark post locations: Mark the spot for each post with spray paint or small flags so you know where to dig the holes.
Gate placement: If you plan on adding a gate, make sure to mark its placement in the layout as well.
By carefully measuring and marking, you’ll avoid errors during installation and ensure the fence is placed accurately.
Once you’ve marked your layout, the next step is to dig holes for the fence posts. Proper hole depth and width are crucial for ensuring the stability of the fence. Here’s how to do it:
Post hole depth: The general rule is to dig each hole at least 1/3 of the length of the post, with a minimum depth of 2 feet for standard chain link fences.
Hole diameter: The hole should be wide enough to accommodate the post and allow for the addition of concrete (typically 6-8 inches in diameter).
Use a post hole digger: This tool will make digging easier and more precise. Ensure each hole is straight and deep enough for the posts.
Digging precise holes will help keep your posts upright and stable, which is essential for the durability of the fence.
Now that your holes are ready, it’s time to install the fence posts. Here’s how to set them properly:
Place the posts: Insert each fence post into its designated hole. Make sure the post is level and aligned with the other posts.
Check vertical alignment: Use a level to ensure each post is perfectly vertical before securing it.
Secure the posts: Fill each hole with concrete to hold the posts in place. You can also add gravel for better drainage, but concrete is typically preferred for stability.
Allow concrete to set: Let the concrete cure for at least 24 hours before continuing with the next steps of installation.
Properly setting the posts is the foundation of your chain link fence, so take extra care to ensure they’re correctly positioned and stable.

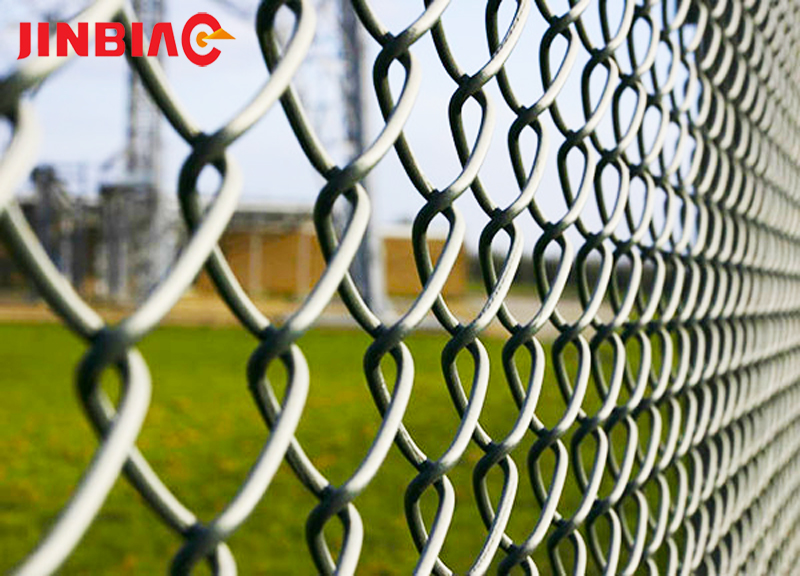

5 Foot Plastic Coated Chain Link Fence
Once the posts are in place and the concrete has set, you can begin installing the top rails. The top rail connects all the posts and provides additional support for the fence fabric. Here's how to install it:
Attach rail brackets: Secure the rail brackets to the top of the posts. These brackets will hold the horizontal top rail in place.
Install the top rail: Slide the top rail into the brackets and secure it with bolts or screws.
Ensure alignment: Make sure the rail is straight and level across the top of the posts before tightening it completely.
The top rail provides structural integrity to your fence and helps keep the mesh taut when installed later.
Now that the posts and top rail are in place, it’s time to attach the chain link fabric. Here’s how to do it:
Unroll the fabric: Begin at one end of the fence and unroll the chain link fabric along the length of the fence. Make sure the fabric is positioned with the bottom edge aligned with the bottom of the posts.
Attach the fabric to posts: Use wire ties or clips to secure the fabric to each post. Space the ties about every 12 inches along the length of the fabric.
Stretch the fabric: Pull the fabric tightly along the fence line to prevent sagging. You can use a fabric stretcher tool for this step, or have a helper assist in holding the fabric taut.
Secure the fabric: Once the fabric is stretched and aligned, attach it securely to the top rail and bottom tension wire if applicable.
Installing the fabric properly ensures the fence is both functional and aesthetically pleasing, providing the security and privacy you need.
If you included a gate in your fence plan, now is the time to install it. Here's how:
Attach hinges: Attach the hinges to the gate frame and to the posts where the gate will swing.
Install the latch: Install a latch or locking mechanism on the opposite side of the gate for easy access.
Ensure proper alignment: Check that the gate opens and closes smoothly and that the hinges are properly aligned with the posts.
Gates are optional but very useful for access. Be sure to choose the right size and style of gate for your needs.
Once everything is installed, give your fence a final inspection:
Check alignment: Ensure all posts are straight, and the fabric is taut without any sagging.
Test the gate: Open and close the gate to ensure proper operation.
Clean the area: Remove any debris or tools from the worksite, and tidy up the installation area.
Congratulations! Your chain link fence is now installed and ready to serve its purpose for years to come. With the right materials, tools, and attention to detail, you’ve created a durable and secure barrier for your property.
