Noise reduction wall panel manufacturer jinbiao

Mechanical noise barriers tradesman

Description of Product

In the communication process, the sound waves encounter the sound barrier, occurs reflection, transmission and diffraction of three phenomena.

Usually we think that the barrier can prevent the spread of the direct sound, and make the system exit sufficient sound attenuation, while the transmittance of sound effects can be negligible.

Therefore, the acoustic effects of the sound barrier is generally the amount of noise reduction can be used, it reflects the ability of the two shielded, acoustically transparent sound barrier.

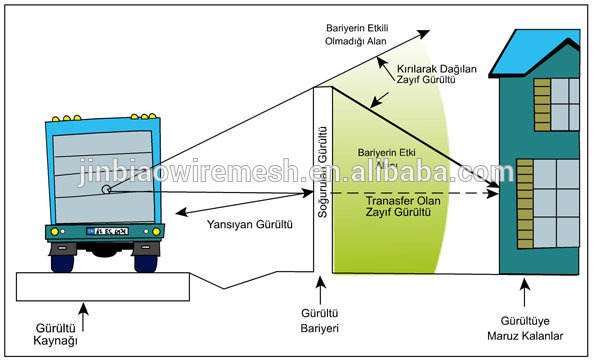

Insert a sound barrier between the sound source and receiver points, set barrier unlimited long, acoustic diffraction in the past only from above the barrier, and the subsequent formation of a sound shadow zone, as light objects blocking the formation of a shadow.

Acoustic shadow in this area, people can feel the noise significantly weakened, and this is the noise reduction effect of the sound barrier.

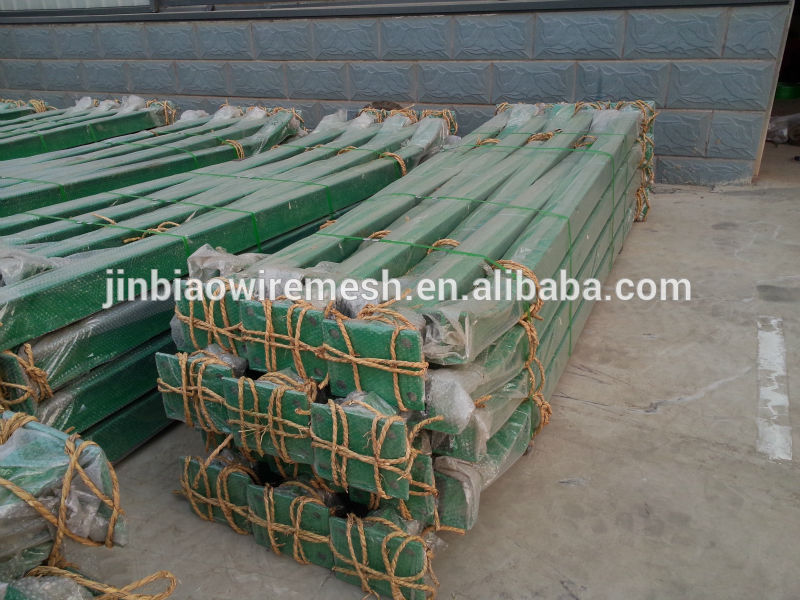

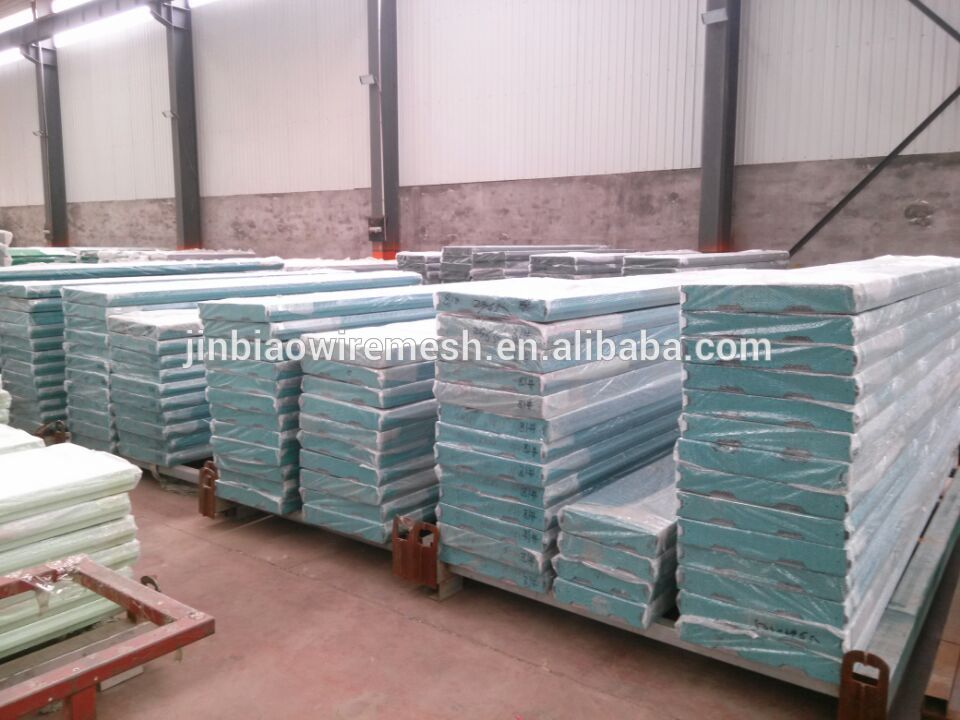

Shippment information: 600-800 square meter sound barriers per 40ft container

Sizes or specifications vary with different packings.

Shippment information:600 square meter per 40ft container.

2.Detailed Description

1.    Non-Flammability: GB8624 grade A

2.    Waterproof :Resistant to deformation in wet environments

3.    Sound proof:

4.    Strength: Bendable and impact resistant

5.    Weight: 35kg/m²

6.    Temperature Maintenance

7.    Environmental Friendly;

8.    Installation: Easy to cut, saw, nail, paint and veneer

                                                                                                                                                                      >>>Buy Now

Noise barrier  Panel thickness: 80mm, 100mm,120mm

Noise barrier  Size: 2500x500x80mm, 2500x500x100mm, etc.

Noise barrier  Metal plate thickness: 0.5-1.2mm

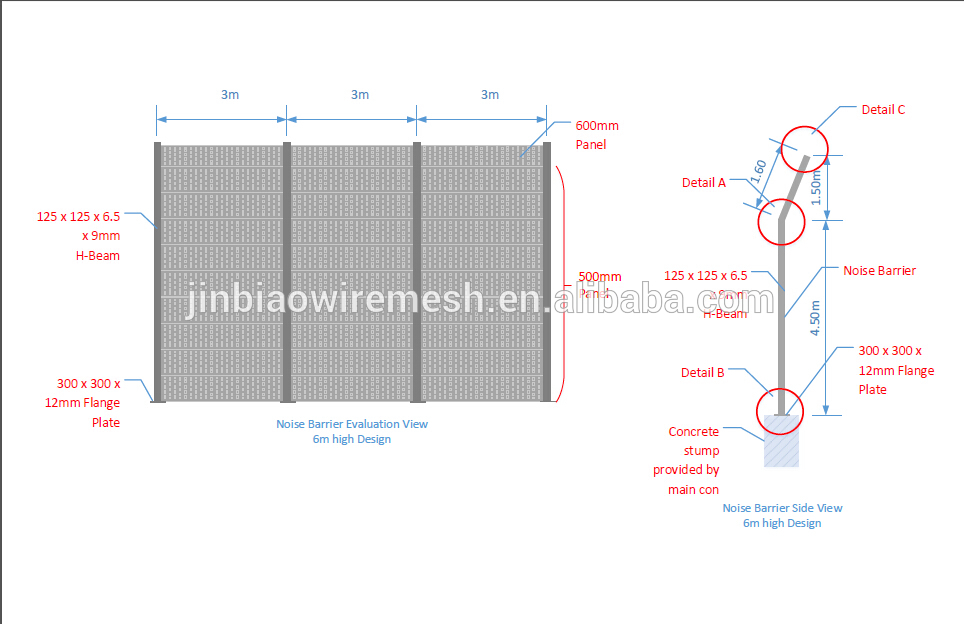

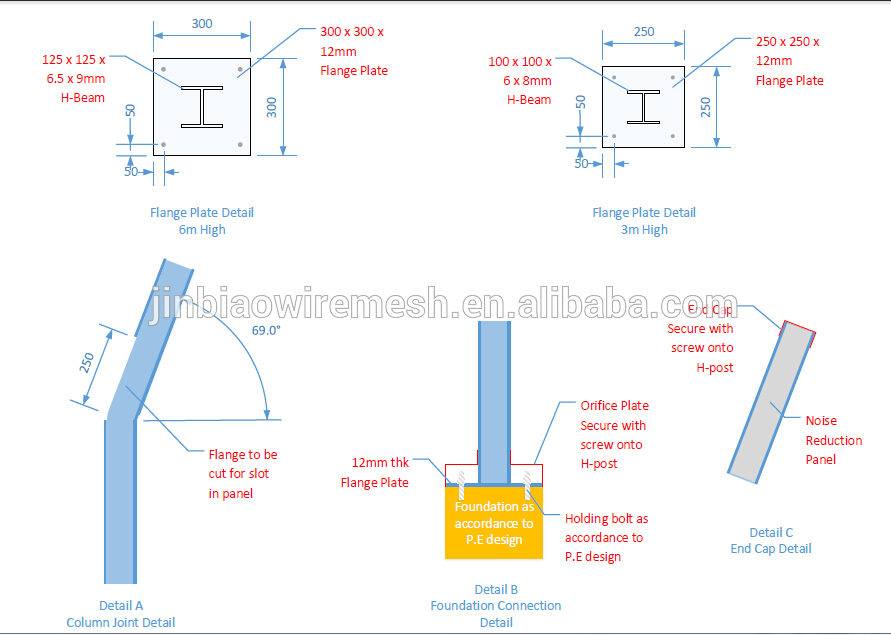

Noise barrier  H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Noise barrier  Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

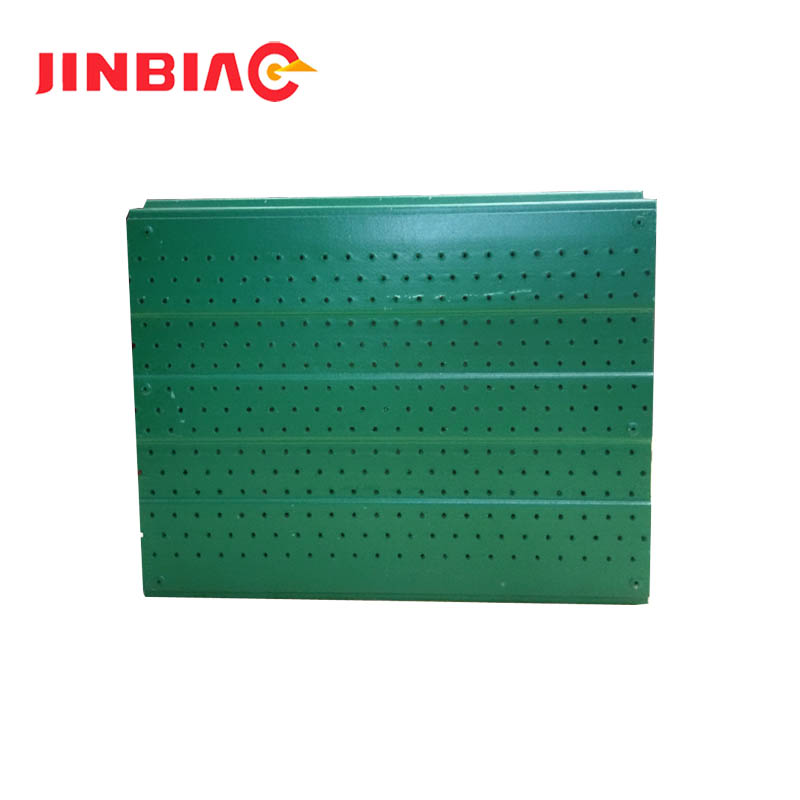

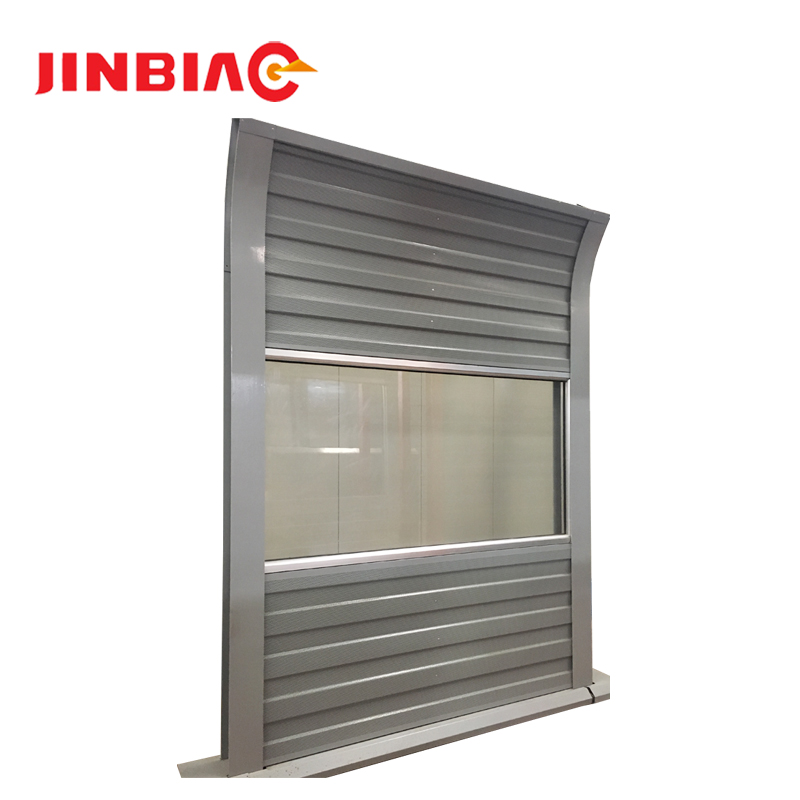

Noise barrier  Panel type: shutter type, punching type.

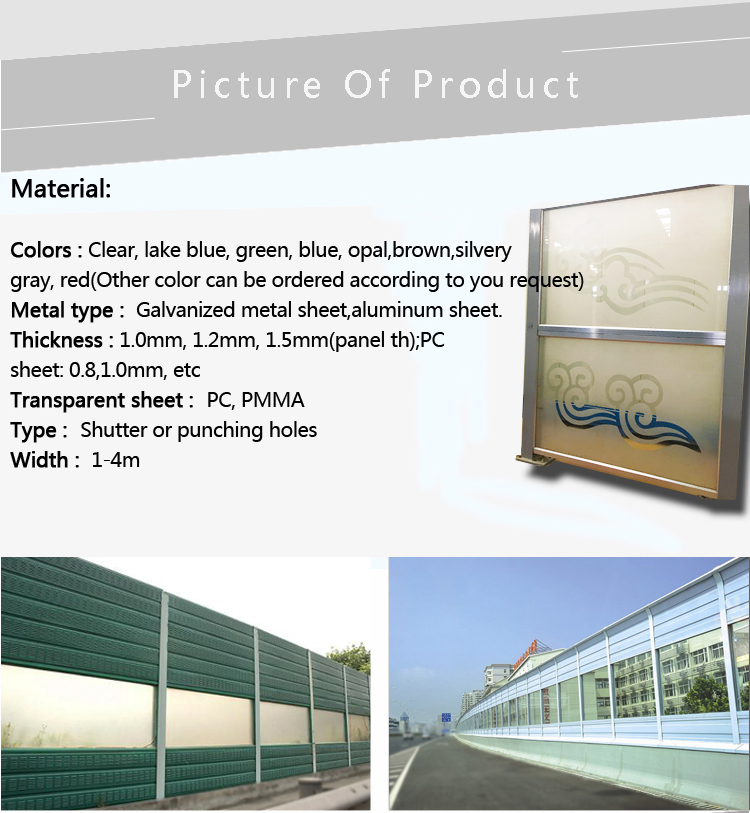

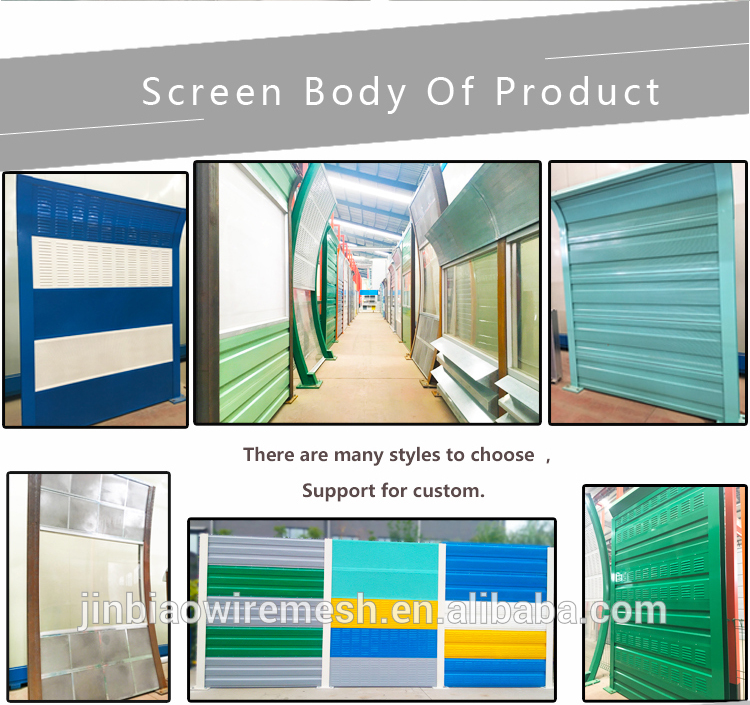

Sound Barrier Material:

1. Metal type: Galvanized metal sheet, aluminum sheet.

Appearance: shutter type, perforated type.

Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red (Other colors can be ordered according to request

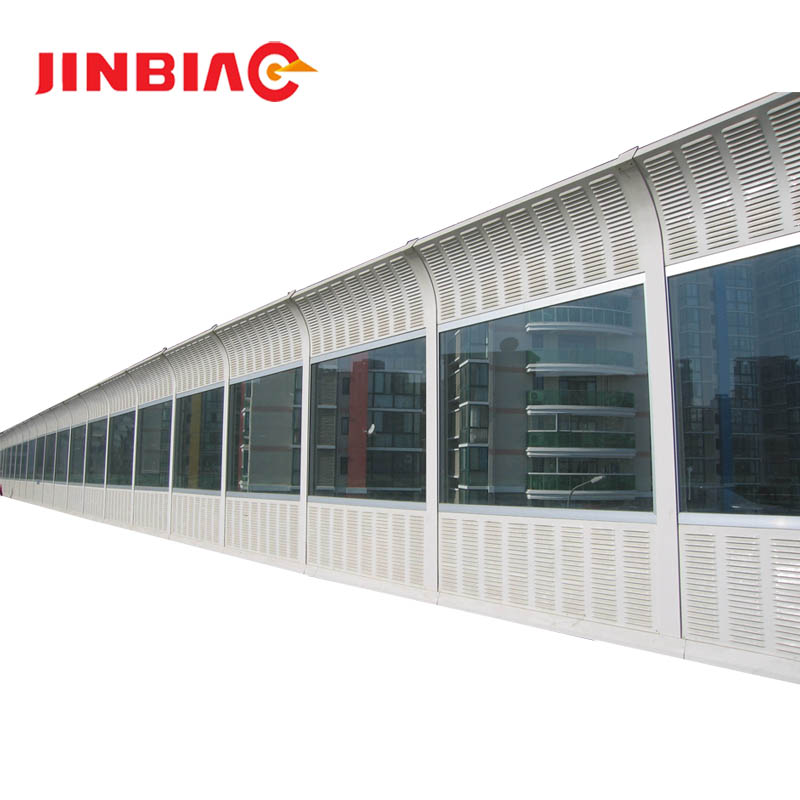

2. Transparent sheet: PC, PMMA

Sound Barrier Sizes:

Sound Barrier panel thickness: 80mm, 100mm,120mm

Sound Barrier size: 2500x500x80mm, 2500x500x100mm, etc.

Sound Barrier metal plate thickness: 0.5-1.2mm

Sound Barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Sound Barrier flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Shippment information: 600-800 square meter sound barriers per 40ft container

Sizes or specifications vary with different packings.

Usage

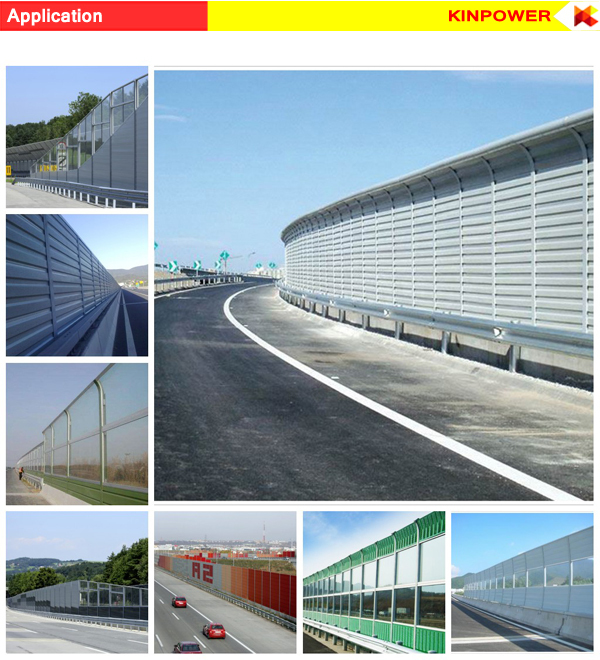

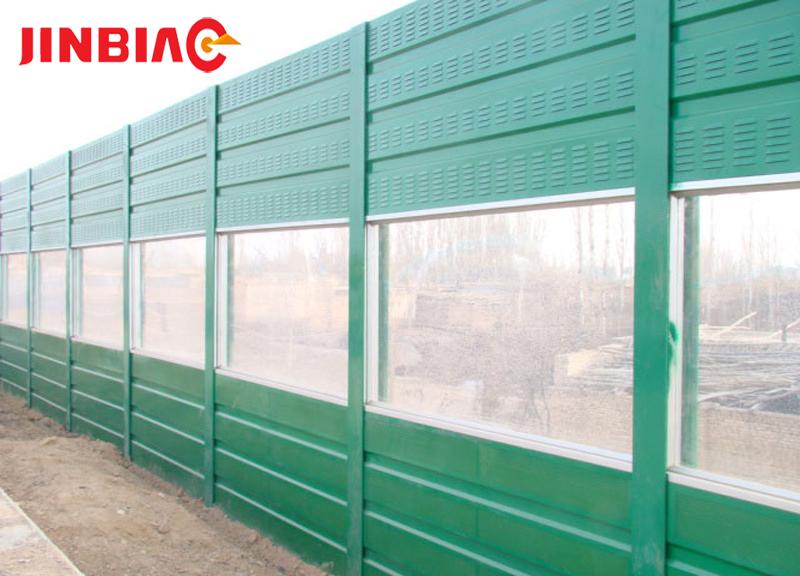

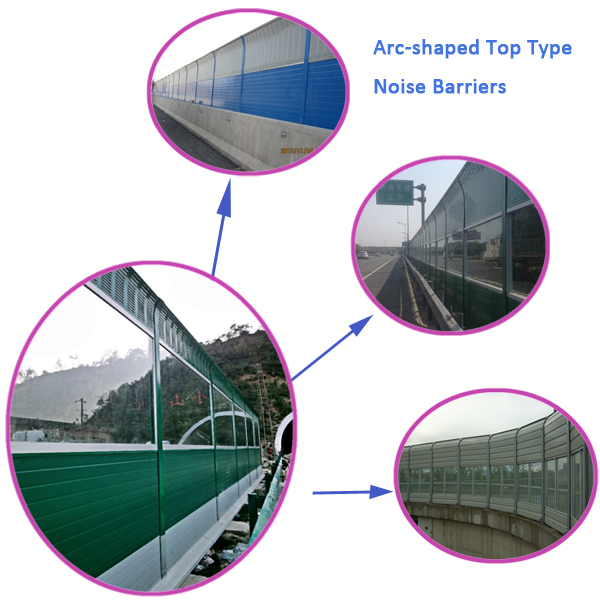

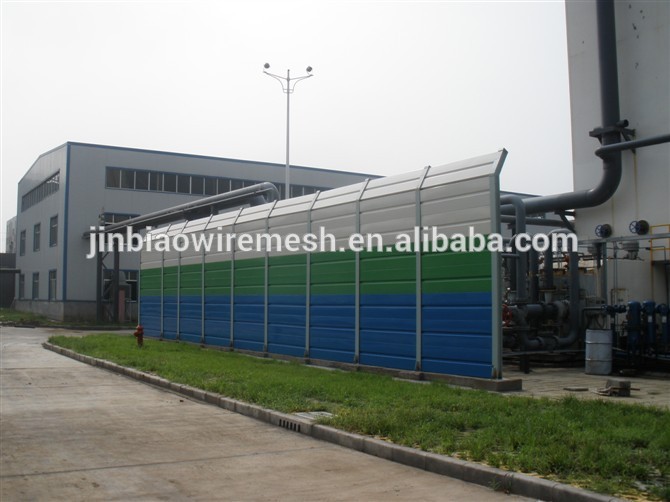

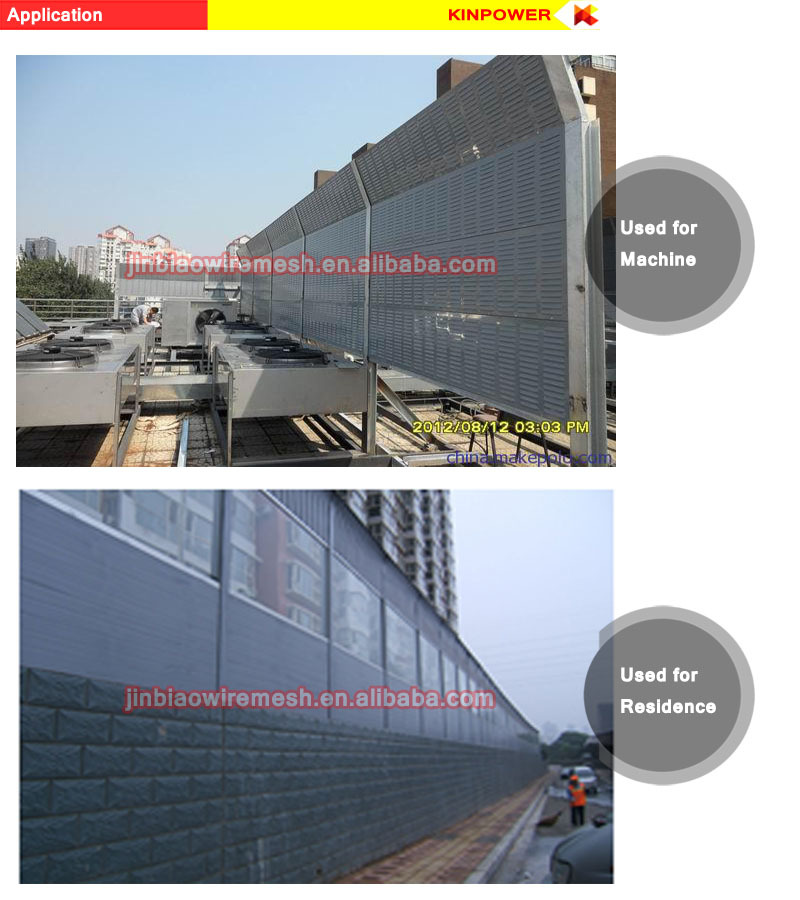

Noise/Sound Barrier is usually used in Highways, High-speed railway, railway, villa, industry and so on. Highway Noise barriers are the most effective method of mitigating roadway, railway, and industrial noise sources other than cessation of the source activity or use of source controls.

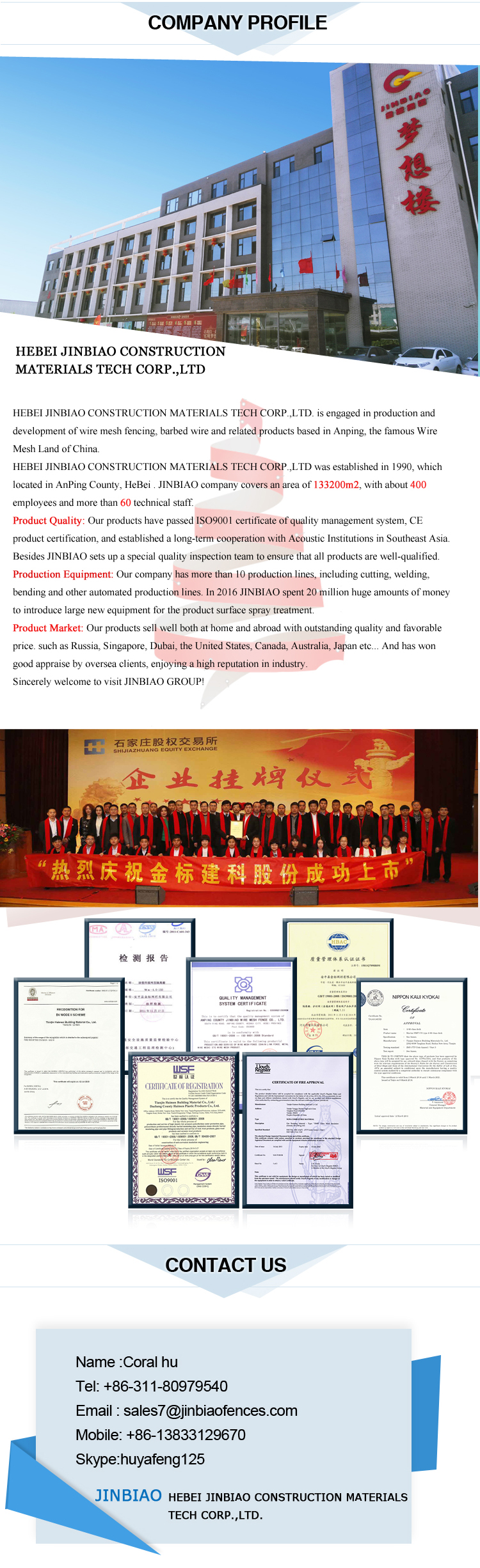

Introduction of company
JinBiao Group is the leading manufacturer of Sound Barriers in China located in Anping since 2010.
We have been exported for many years with highly reputation.
Founded Time: 1986
Area: More than 130000 Square Meters
Main Product: Fences, Sound Barrier, Aluminum Formwork
Department: Marketing Center(Domestic Trade and Exported Trade), Design Center, Quality Control Center, Logistics Center etc.
Employee: More than 300

Welcome to Contact Us :

We are manufacturer.

Welcome you to visit our factory.

Any time,any questions,pls feel free to contact me.
sales manager l Fence manufacturer l Anping County Jinbiao Wire Mesh Fence Co., Ltd.
P.O. Box 053600, Development Zone, South Of Anping County, Hengshui, Hebei, China

                 Name: Coral hu

                 Tel: +86-311-80979540

                 Mobile: +86-13833129670

                 Skype: huyafeng125                                                                                 >>>Buy Now

FAQ

1. Why Choose JinBiao Group?

a. largest manufacturer in Hebei

b. professional design team

c. Strict quality control

d. prompt delivery

2. We know little about the noise barriers, which items needed to get the quote?

Don't worry about that, we have professional technical person, just need supply the height, length, place to use, we'll make the suitable design for you.

3. Beside the specification, how to install noise barriers?

This is also not a problem, we will make the darwing for your reference, if needed, video can be taken for you.

4. How can you guarantee the delivery time?

we have many advanced machines to prepare the material and make detailed production schedule, if the order very urgent, our workers can be keep working in three shifts.

Sound Barriers (also known as Noise Walls, Noise Barriers, Noise Fences or Sound Barrier Walls) have been made of a number of different materials over the years.  Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.
