PMMA Noise Barrier
PMMA Noise Barrier
Acoustic sound absorbing noise barrier price,sound barrier,noise barrier

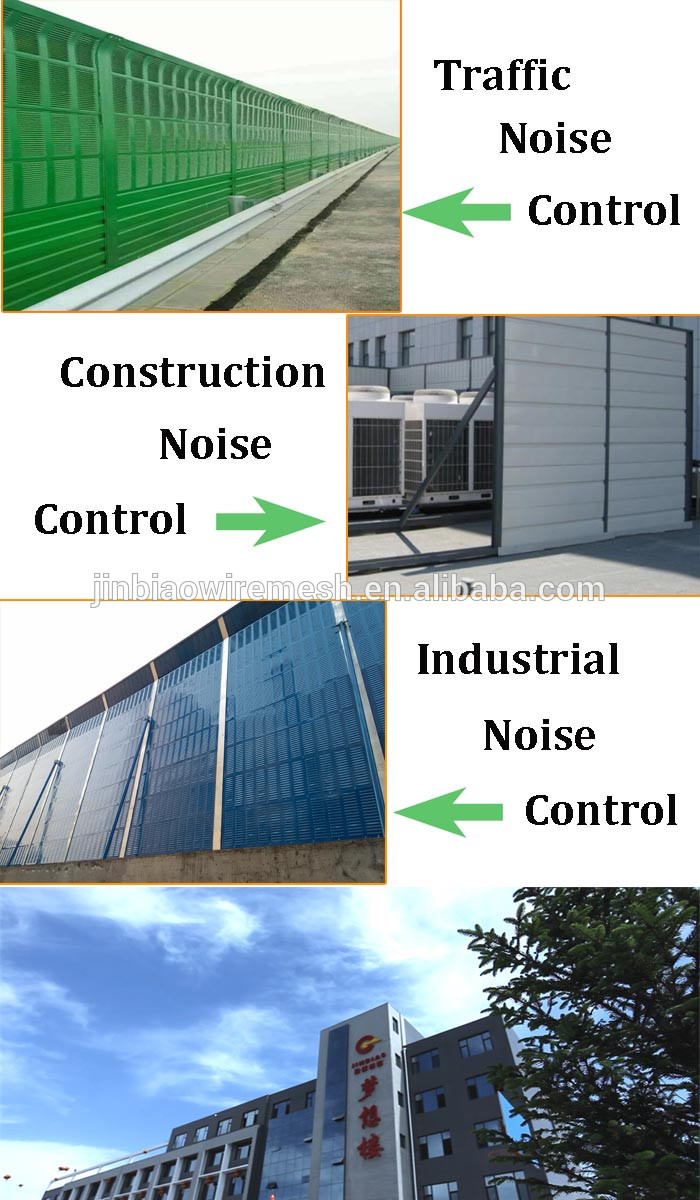

| 1. Are you still troubled by traffic noise? |
| 2. Are you still troubled by construction noise? |
| 3. Are you still troubled by industrial noise? |
| 4. Are you still troubled by other noises pollution? |
 |
Acoustic sound absorbing noise barrier price,sound barrier,noise barrier
Hebei Jinbiao Company is a high-tech enterprises which dedicated to noise pollution control. JinBiao Group provide a complete set of services, from sound barriers design, research and development, production, to installation and construction. |
 |
Acoustic sound absorbing noise barrier price,sound barrier,noise barrier

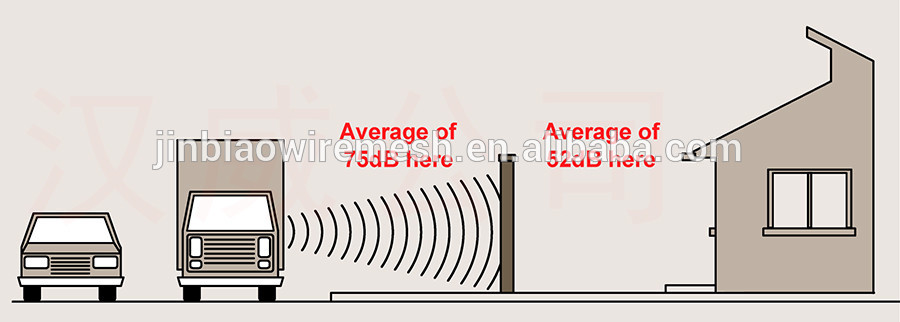

| What is a sound barrier? |
Sound Barrier is a facility which inserted between the sound source and the receiver to provide a significant additional attenuation of the sound wave propagation, thereby attenuating the effects of noise in a given area where the receiver is located. |
 |

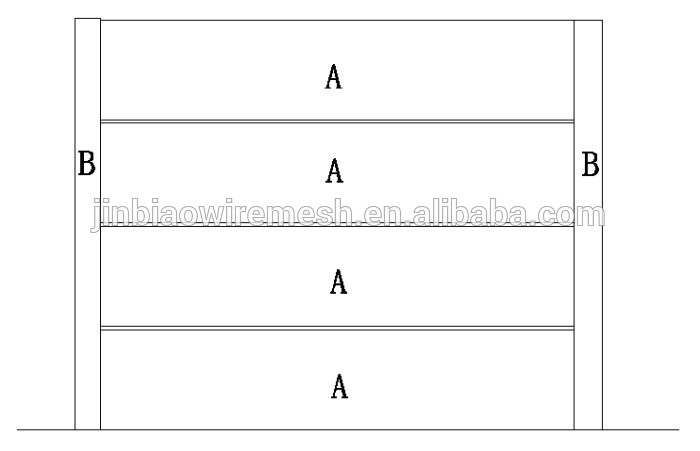

| Sound Barrier Component |
| A+B=H steel Post+Sound Barrier Panel |
 |

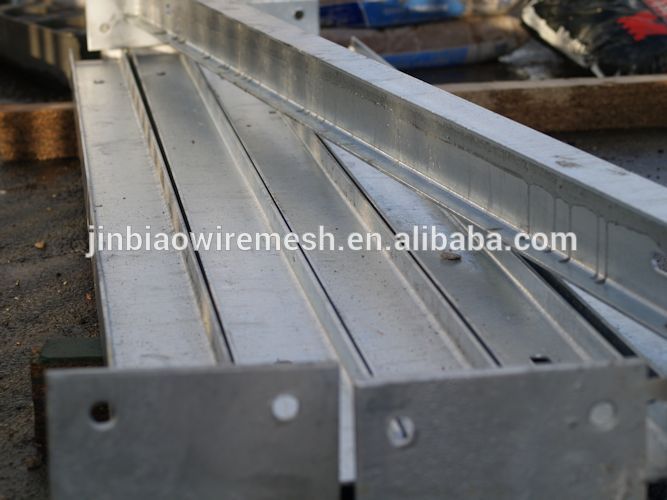

| A: H Steel Post |
Material: Low Carbon Steel Q235B, Q345 Standard Size: 100*100*6*8, 125*125*6.5*9, 150*150*7*10 Maxmiun Height: 12m Finish: hot dip galvanized or galvanized+powder coated |
  |

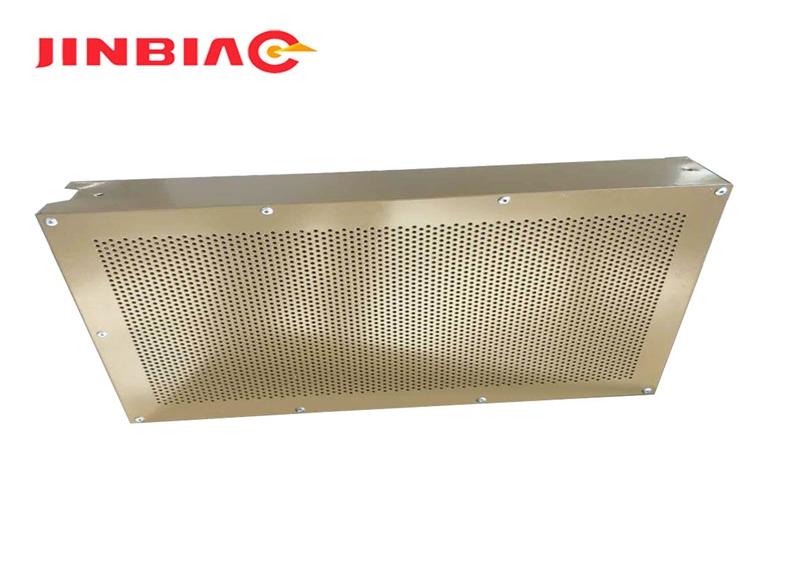

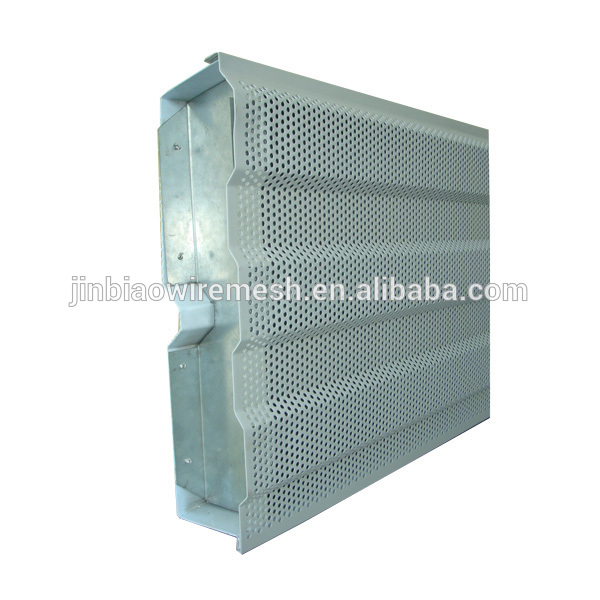

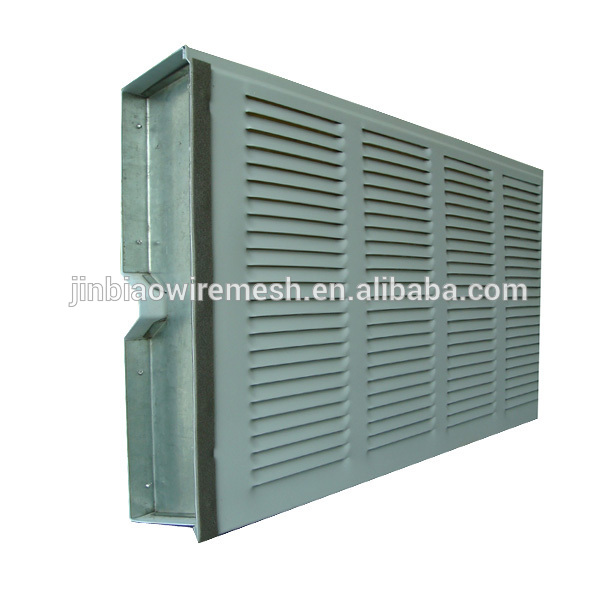

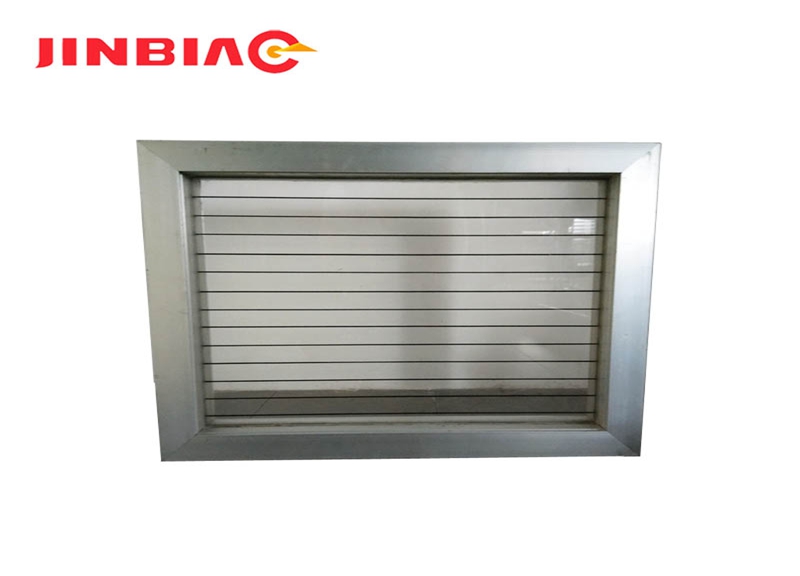

| B: Sound Barrier Panel |
Material: Galvanized Sheet, Aluminum Sheet Thickness: 0.6mm-1.5mm(Special requirements can be customized) Width: 500mm-1000mm Max Length:4000mm Min Panel thick: 33mm Absorption material: glass wool, rock wool, eps Type: shutter or Micropores Finish: powder coated Color: popular green, blue, grey(RAL colors avaliable) |
  |

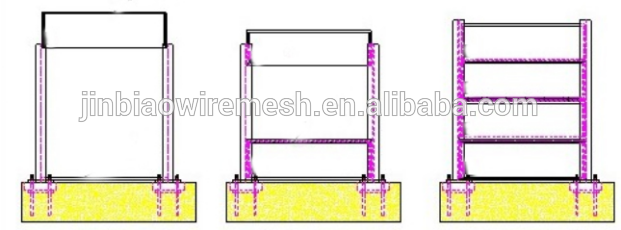

| Sound Barrier Installation |
| 1. Fix the H steel post 2. Put the noise barrier panel one by one 3. Put Accessories to fix the panels 4. Finished |
 |

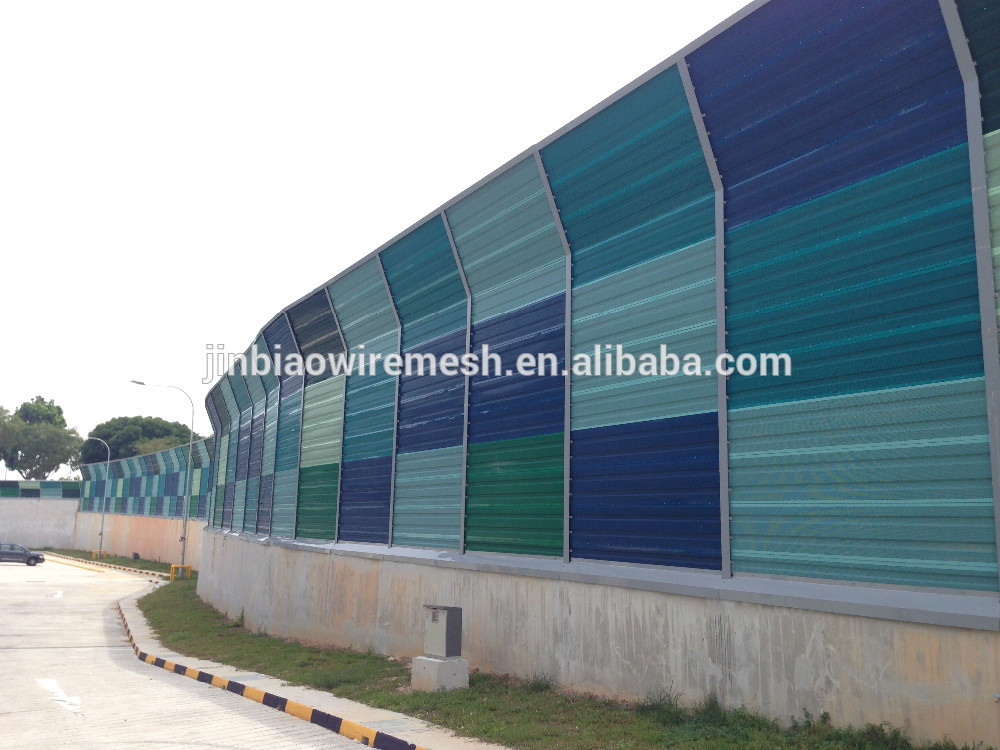

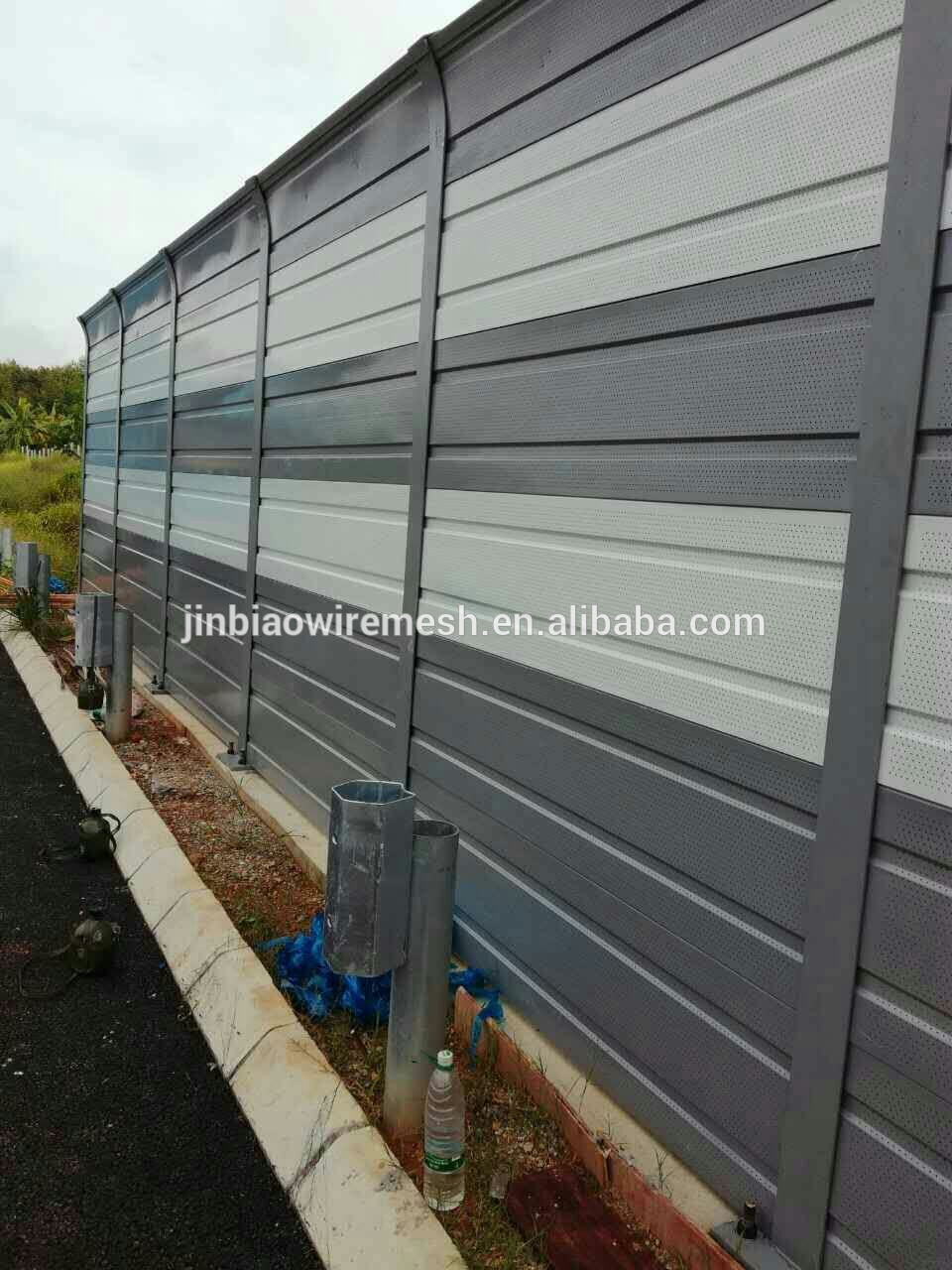

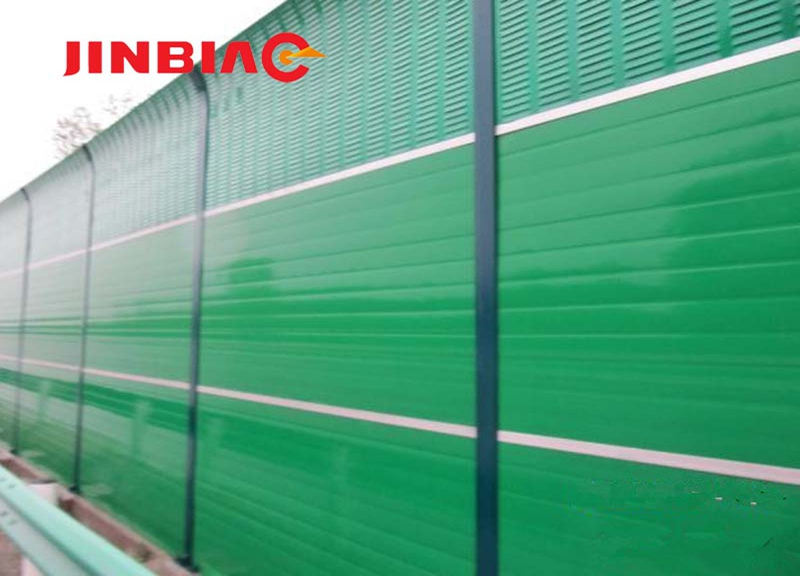

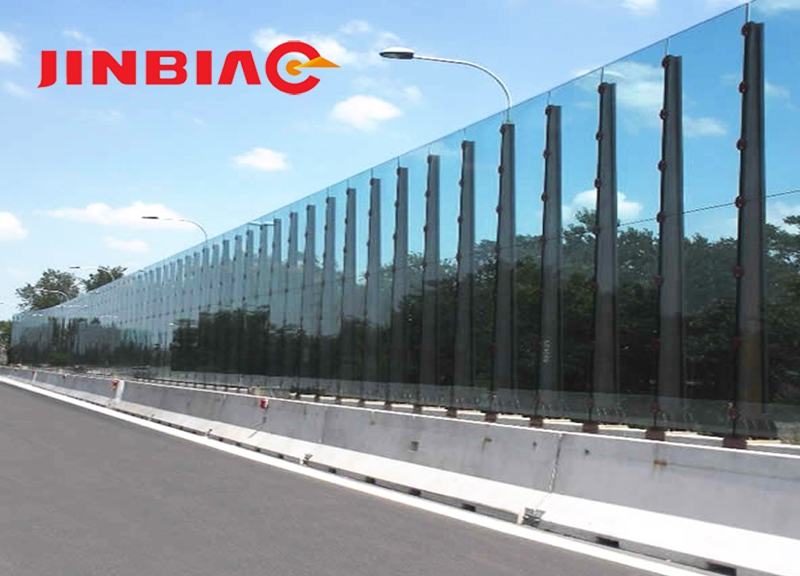

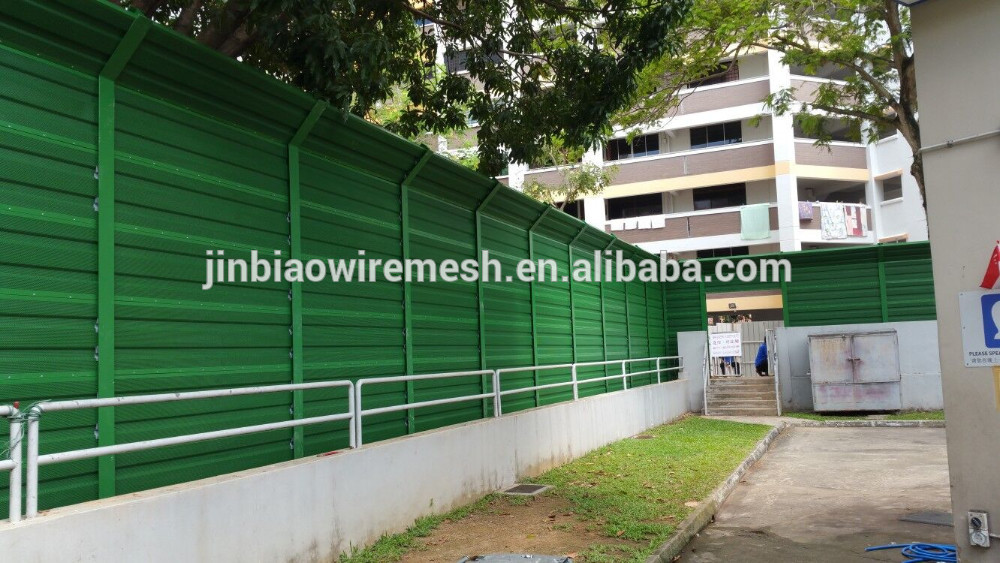

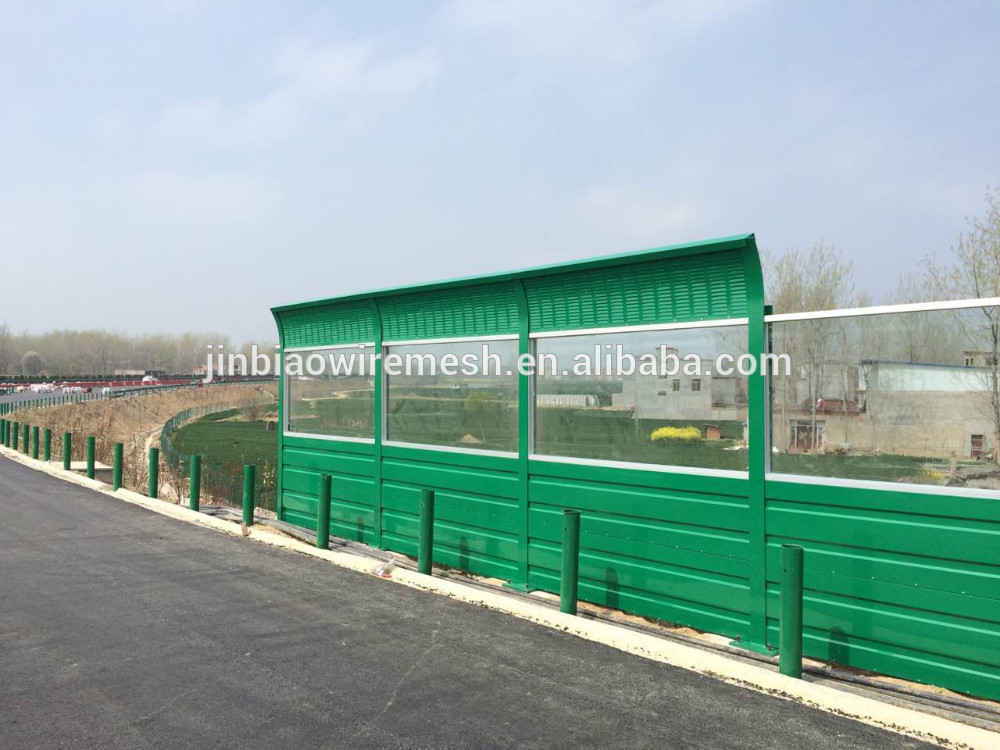

| Sound Barrier Finished Projects For Reference |
    |
Acoustic sound absorbing noise barrier price,sound barrier,noise barrier
We have professional design team, for getting suitable proposal just contact me back!^_*
we'll make response within 2 hours!!
