Product Description

Sound Barrier Fence / Noise Barrier

In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus assuming increasing and crucial importance.

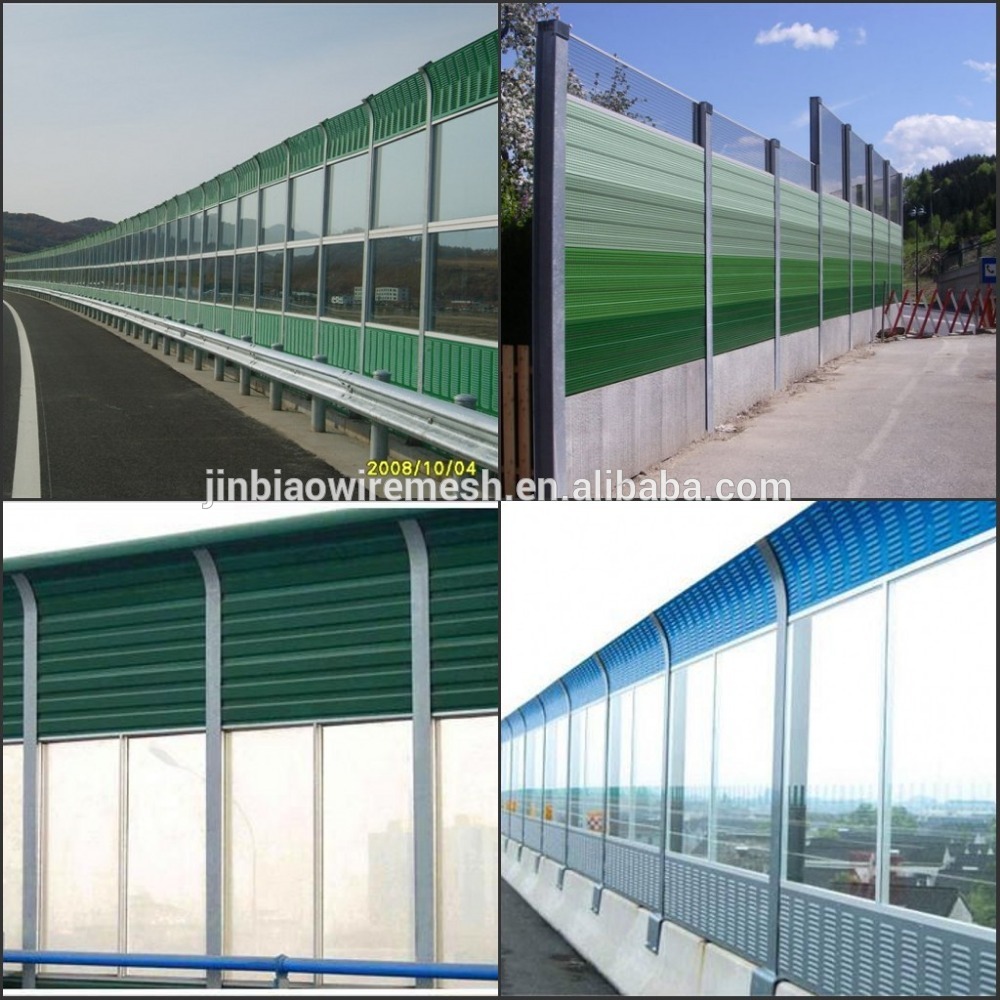

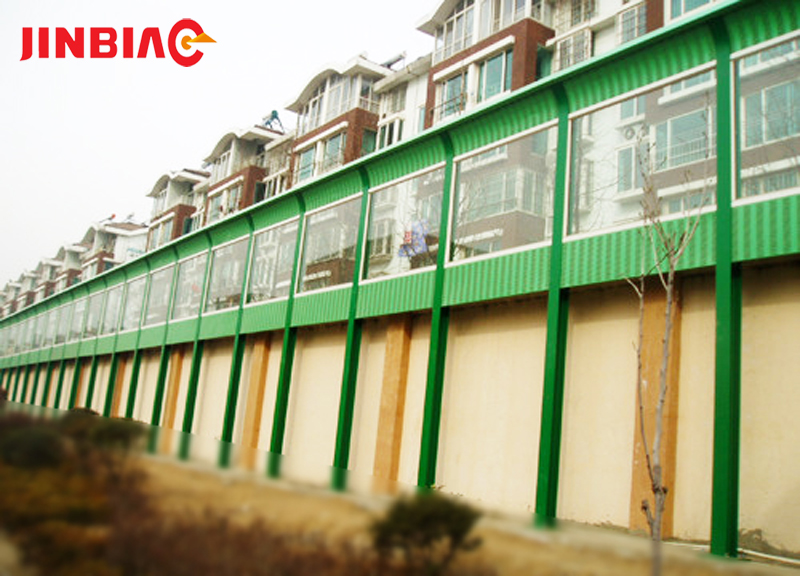

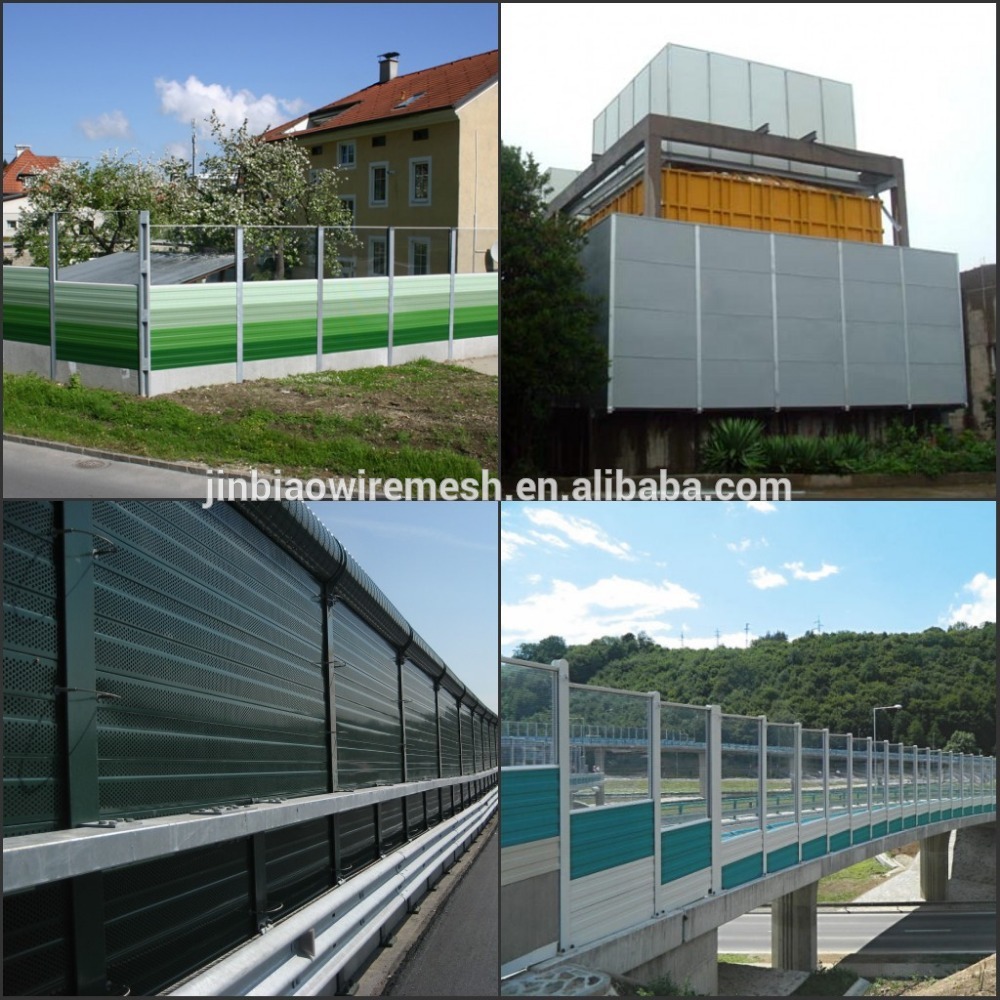

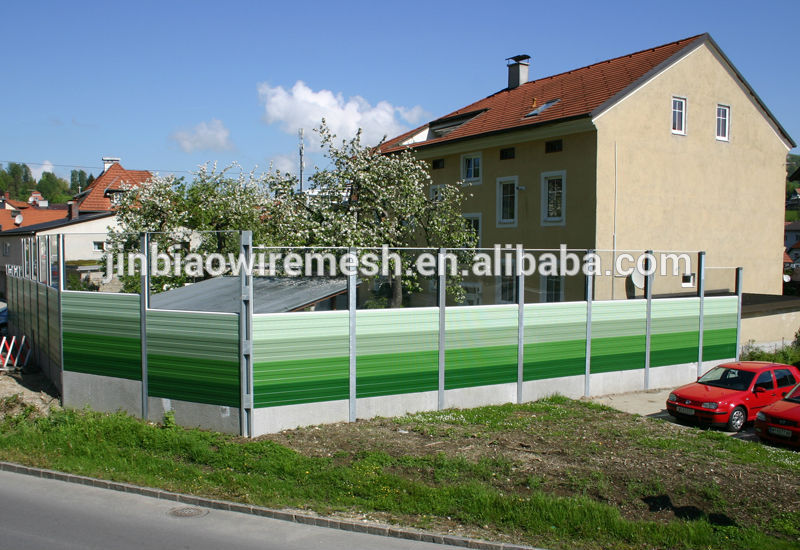

JINBIAO sound barrier for traffic and residential are made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the JINBIAO sound barrier for traffic and residential.

Highly efficient noise barrier at fair prices

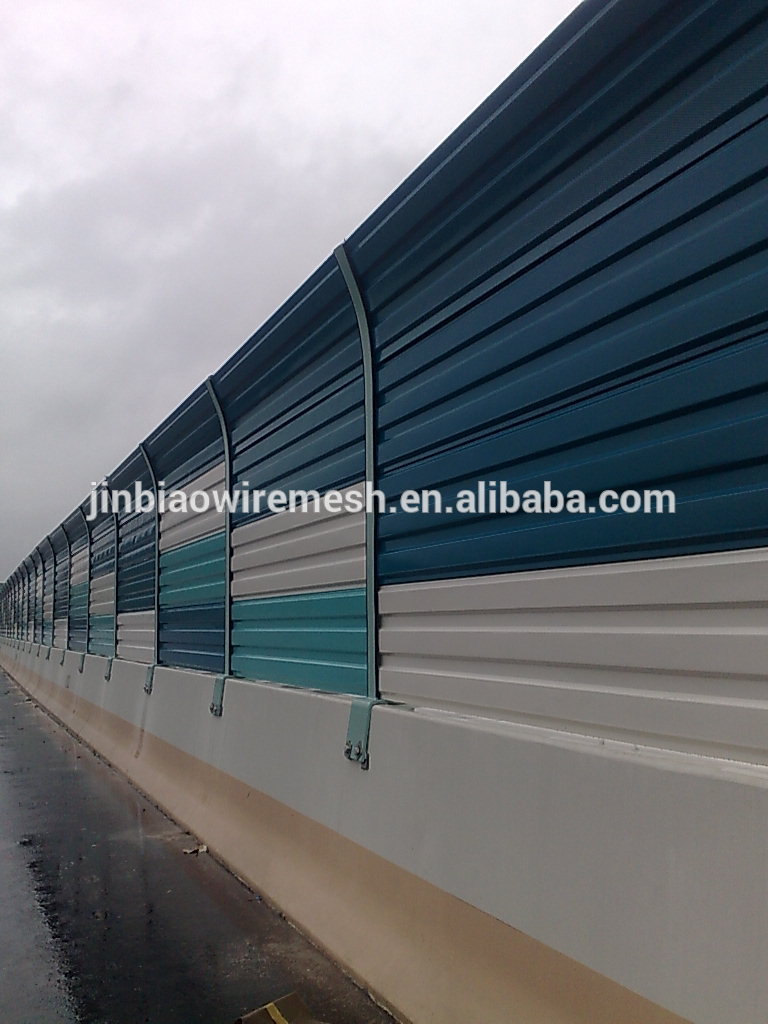

JINBIAO noise barrier for road and industry

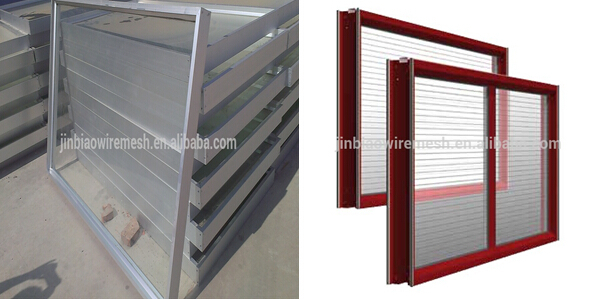

An important advantage of the JINBIAO design is the fact that the panels are made of aluminum or galvanized sheet. They are self-supporting and therefore don’t need an additional frame. This has a positive impact in the pricing.
A double-sided EPDM-sealing provides continuous soundproofing. And every individual panel can be exchanged and replaced without any problems if damage should occur.

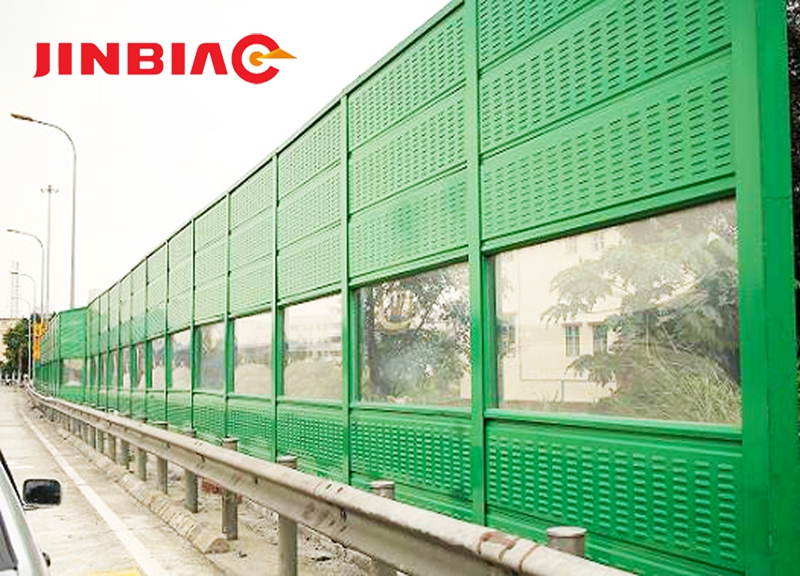

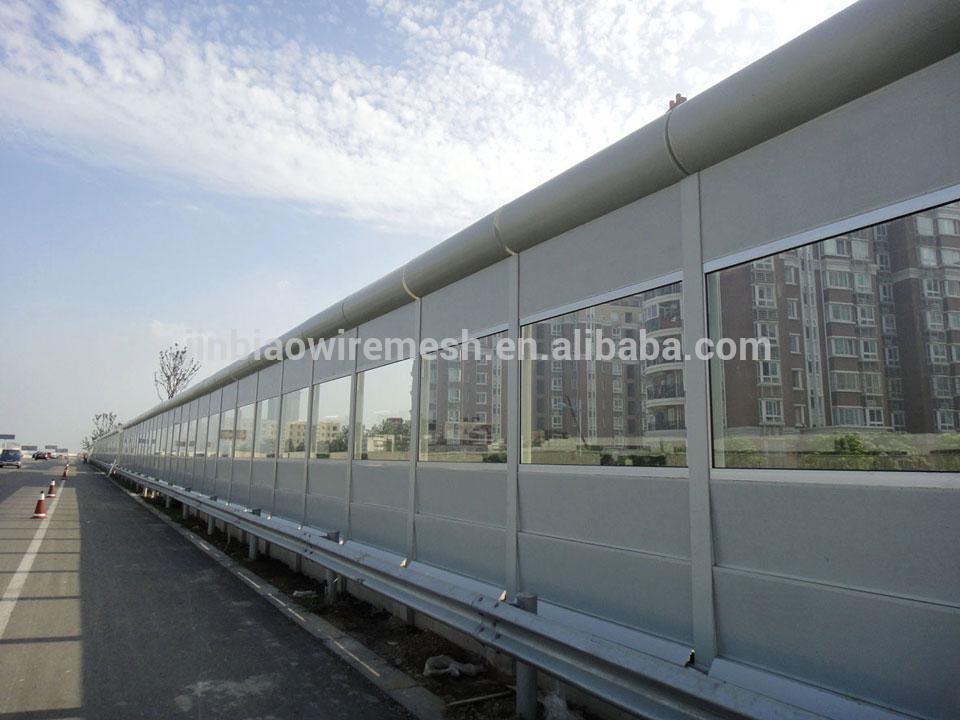

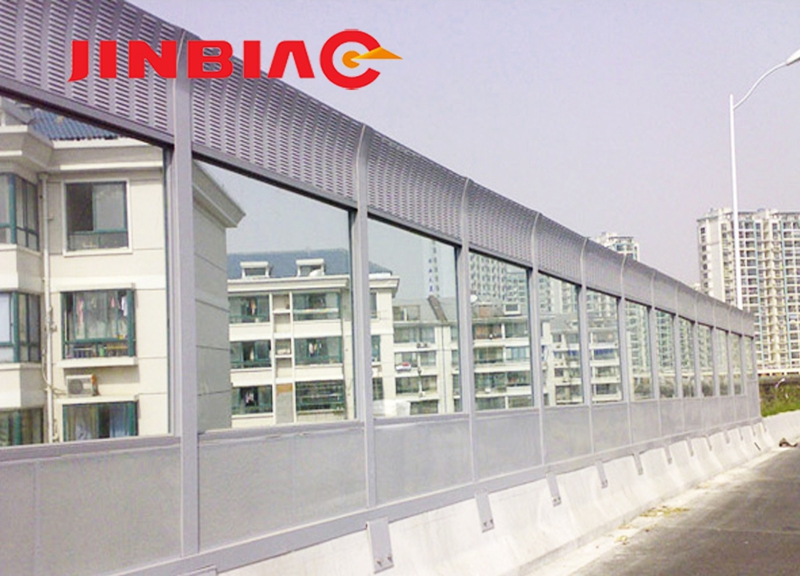

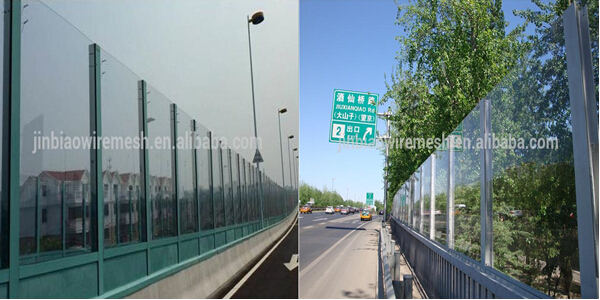

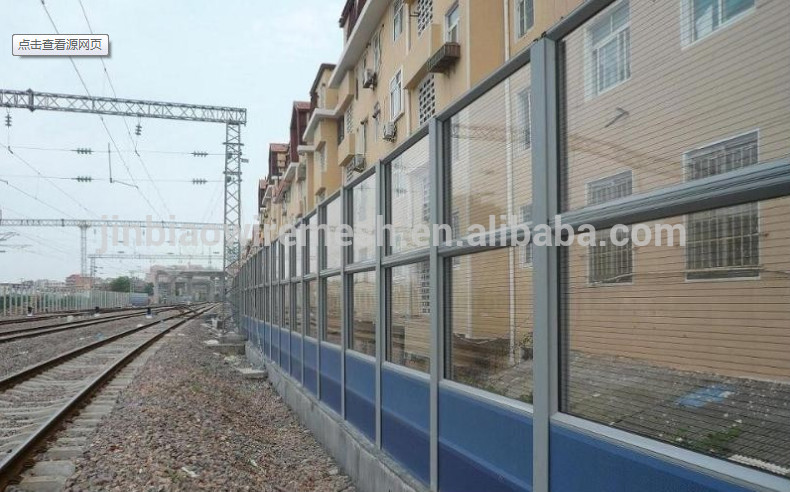

Also transparent panels are possible

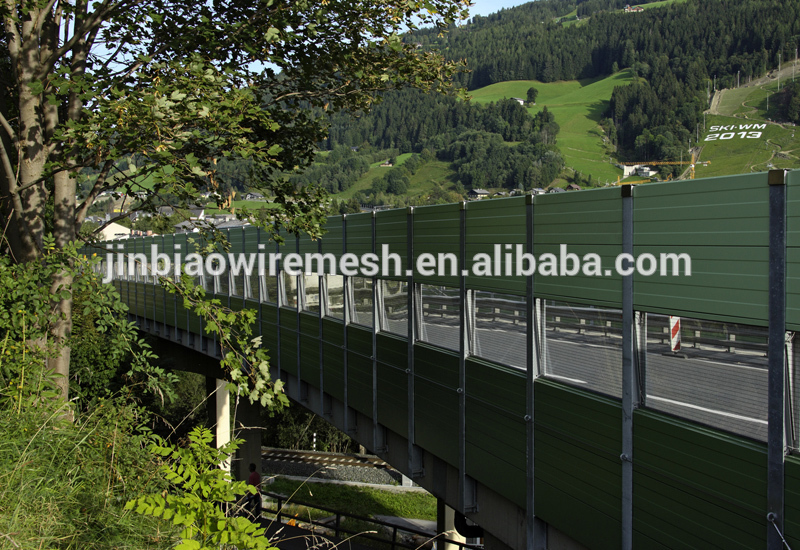

JINBIAO does not only guarantee high noise absorption, but it also provides excellent views due to its transparency. Embedded polyamide threads offer a maximum safety standard and are mainly applied for noise barrier on bridges in case of need.

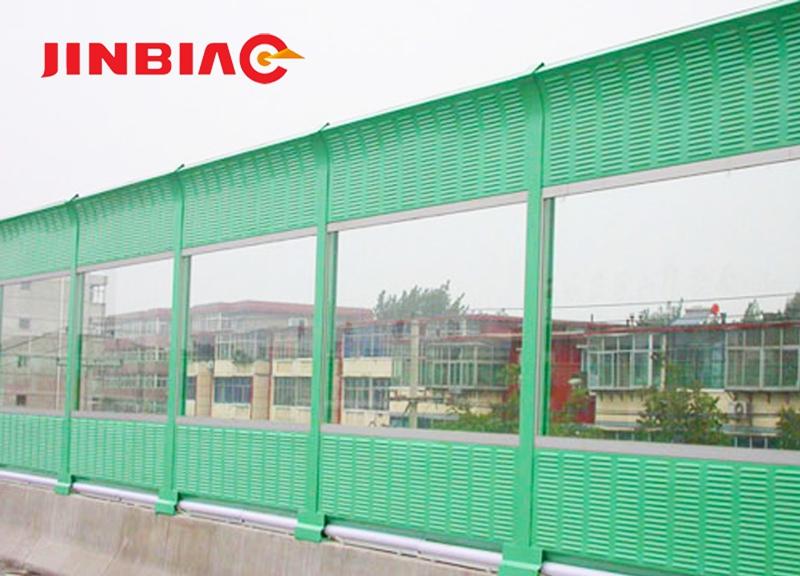

Glass panels can be integrated either as a complete wall or as an individual section between the aluminum panels.

Your design concepts for noise barrier for traffic and residential are unlimited!

Specification

Noise Barrier Specification

Material:

1. Metal type: Galvanized metal sheet, aluminum sheet.

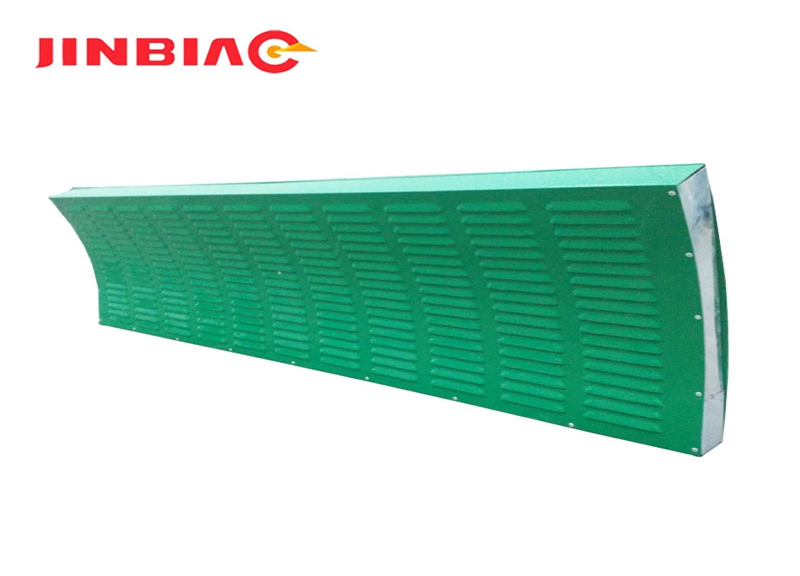

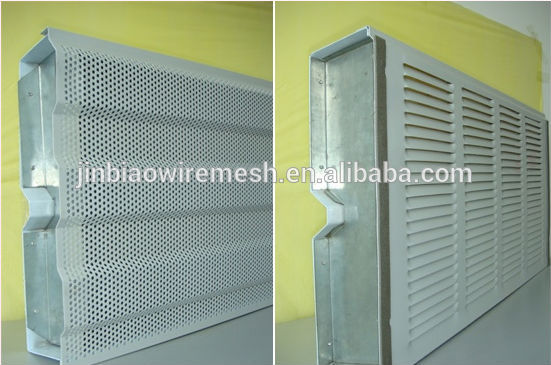

Appearance: shutter type, punching type.

Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request
2. Transparent sheet: PC, PMMA

Noise Barrier Size and Specification:

Noise Barrier panel thickness: 80mm, 100mm,120mm
Noise Barrier panel size: 2500x500x80mm, 2500x500x100mm, etc.
Noise Barrier metal plate thickness: 0.5-1.5mm
Noise Barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Noise Barrier H-post flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Technology

Noise Barrier Technical

Specifications and technical parameters
Size	Performance and testing project	Test Standards	Test Results
Length: can be customized Height: 500mm Thickness: 80mm-140mm	Noise Reduction Coefficient	GBJ47-83	NRC=0.84
	Fire rating	GB/T13350-2000	A Level(Noncombustible)
	Insulation	GB/T13350-92	≤0.042VV(M.K)
	Soundproofing	GB/T13350-2008	≥50db
	Sound absorption coefficient	GB/T13350-2008	>0.863
