Soundproof Barriers

Transparent Noise Barrier Material and Specifications:

Transparent Noise Barrier Technical features:
Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times that of glass, 20-30 times of PMMA sheet;
Light transmission: 80%-90% for different thickness of clear color;
UV resistance: with 50μm thickness UV layer ,the sheet can filter 99% of sunlight's ultraviolet radiation;
Specific gravity: 1.2 g/cm;
Coefficient of thermal expansion: 0.065 mm/moC;
Temperature: -40oC to 120oC;
Heat conductivity: 2.3-3.9 W/m2  oC
Tensile strength: >60N/mm2
Flexural strength: 100N/mm2
Modulus of elasticity: 2,400mPa
ensile street at break: >65mPa
Elongation at break: >100%
Specific heat: 1.16J/kgk
Heat deflection temperature: 140oC
Soundproof index:6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB

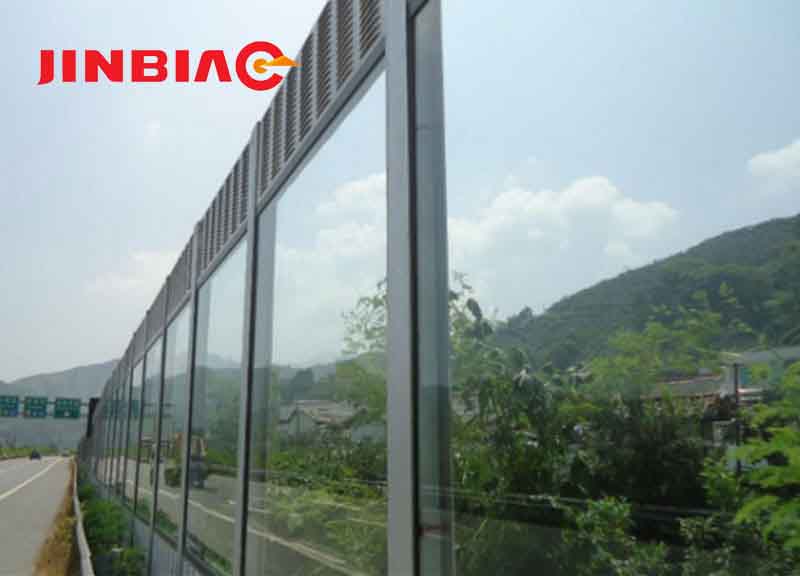

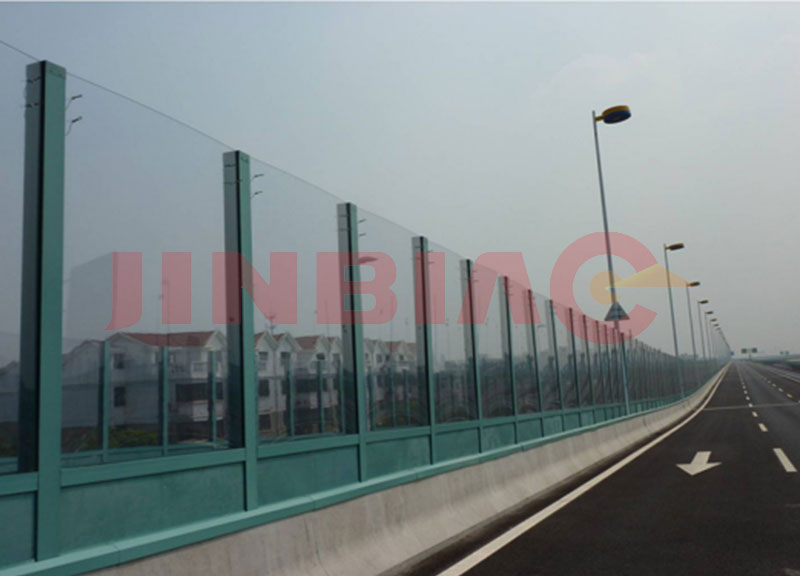

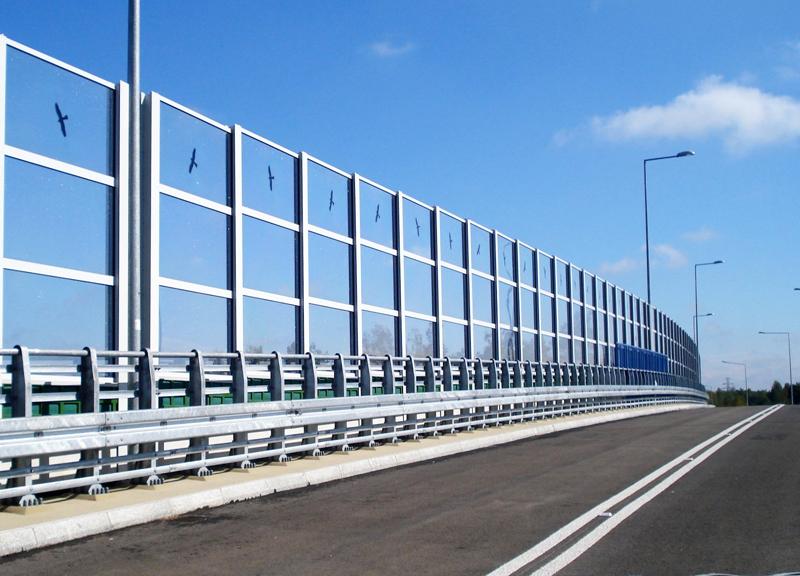

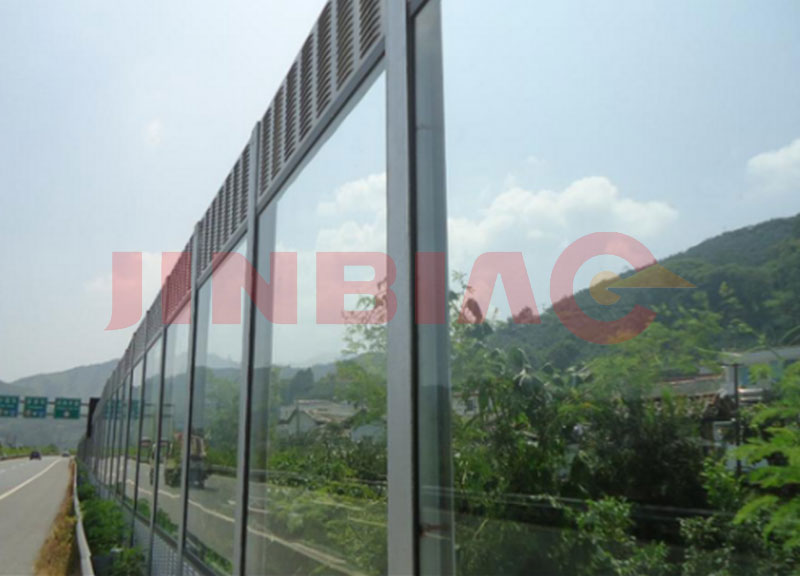

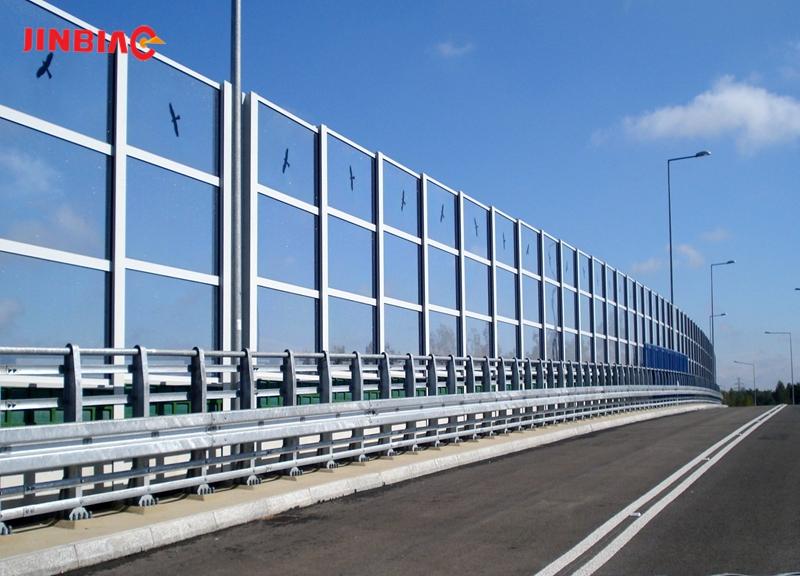

JINBIAO does not only guarantee high noise absorption, but it also provides excellent
views due to its transparency. Embedded polyamide threads offer a maximum safety
standard and are mainly applied for noise barrier on bridges in case of need.

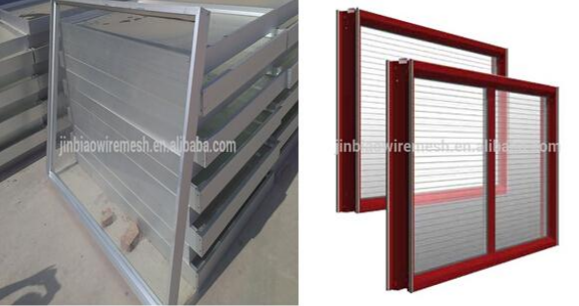

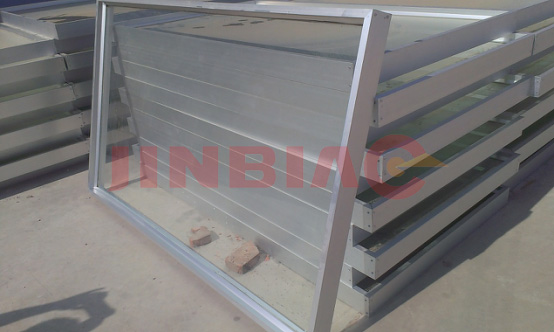

Glass panels can be integrated either as a complete wall or as an individual section
between the aluminum panels.

Advantages of our Noise Barrier System:
Highly absorptive noise barrier system
Easy installation or maintenance replacement
Can be incorporated with other materials
Can be easily relocated
Minimum repair required only damaged panels to be replaced
Fits standard support post systems
 Standard/custom modular sizes
Manufacturing is consistent
Custom panel sizes and shapes
Choice of colours
Framed clear or coloured acrylic
Pre-printed graphics
Using security cables on bridges and slopes are at lower risk
Fire resistant
Maintenance free
Low life cycle costs
 Factory applied Anti-graffiti coating

Noise Barrier Technical:

Welcome to inquiry us, we can also customized according your requirement.

Let's JINBIAO noise barriers bring you a quiet and peaceful world.
