Wire Mesh Fence
Wire Mesh Fence

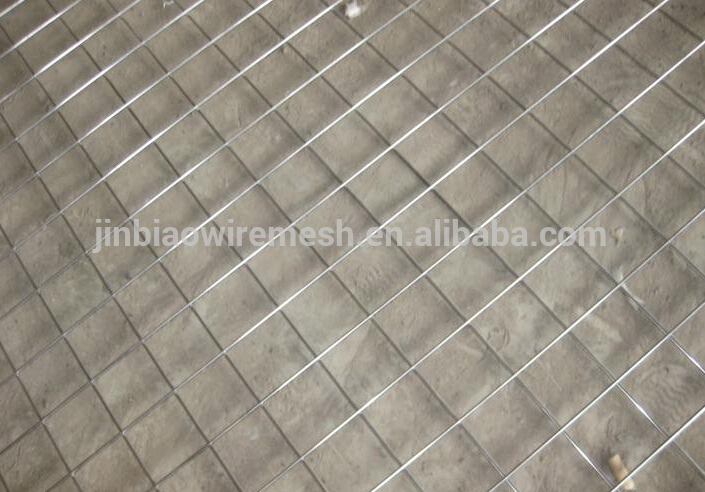

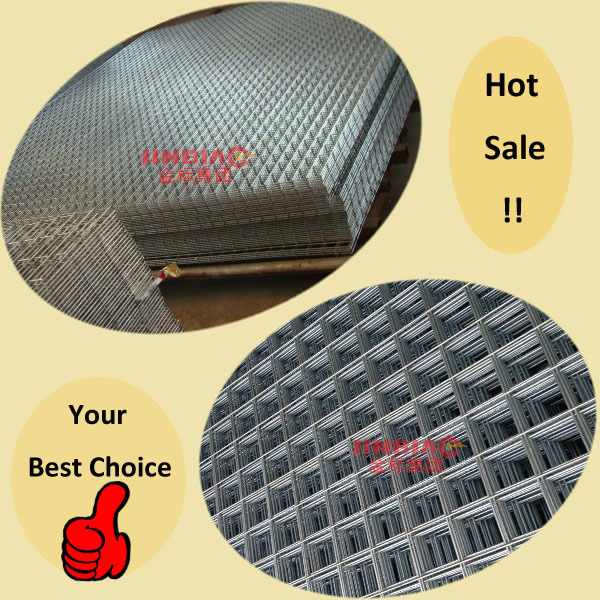

We supply all sizes of welded wire mesh,fine welded wire mesh or welded mesh is made from choice plain steel wire and stainless steel wire,which shows good corrosion-resistance and oxidation-resistance,widely used for poultry houses,egg baskets,runway enclosures,draining racks,porch guards,rat-proofing,safety guards on machines,animal and plant pens and shelves,etc.
1.Material: Low carbon steel wire, Stainless steel wire material.

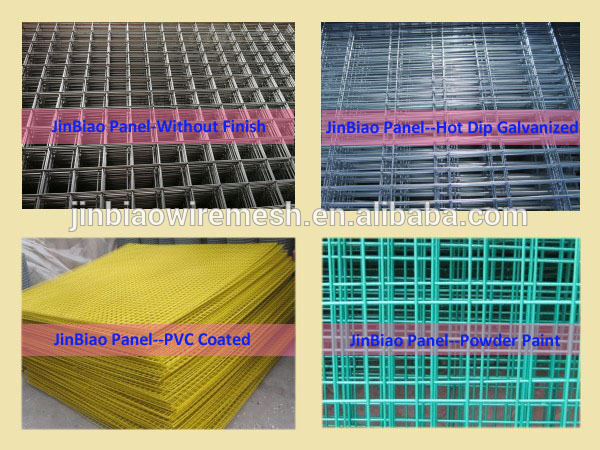

2.Type:
· PVC coated after welding (Welding with pvc coated iron wire)
· Hot dip galvanizing after welding (Welding with electric galvanized iron wire)
· Electro galvanized then PVC coated after welding.

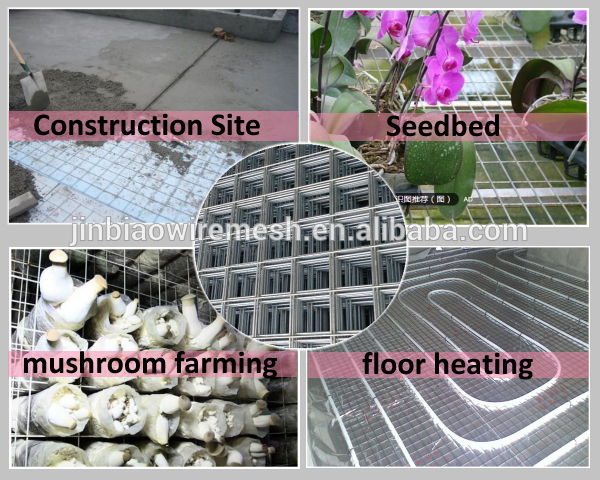

3.Usefulness: Used
in industry, agriculture, building, transportation, mine, field,
cultivation, enclosure fence, decoration, machine protection, etc.
4.Packing:

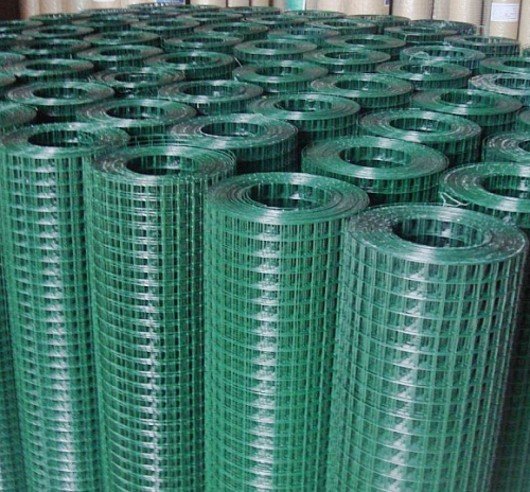

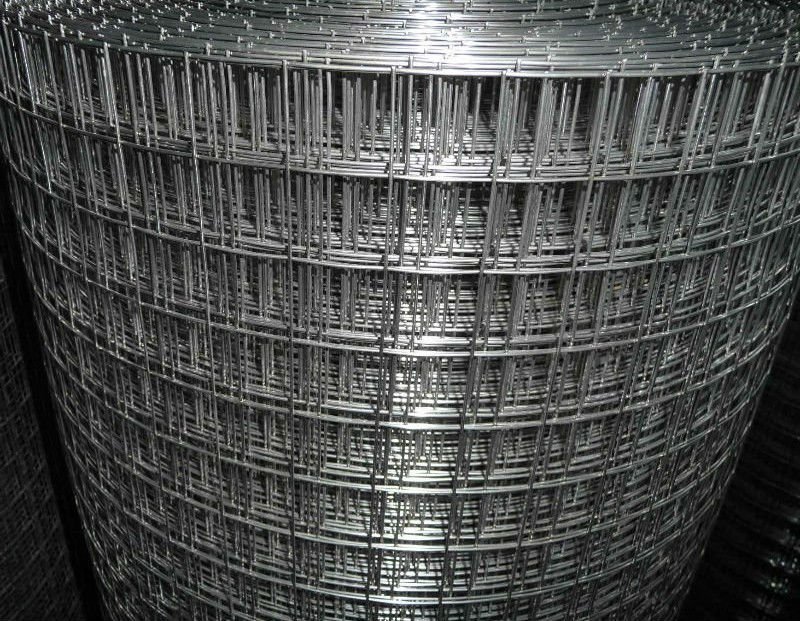

1) For welded wire mesh rolls, normally packed by water proof paper.

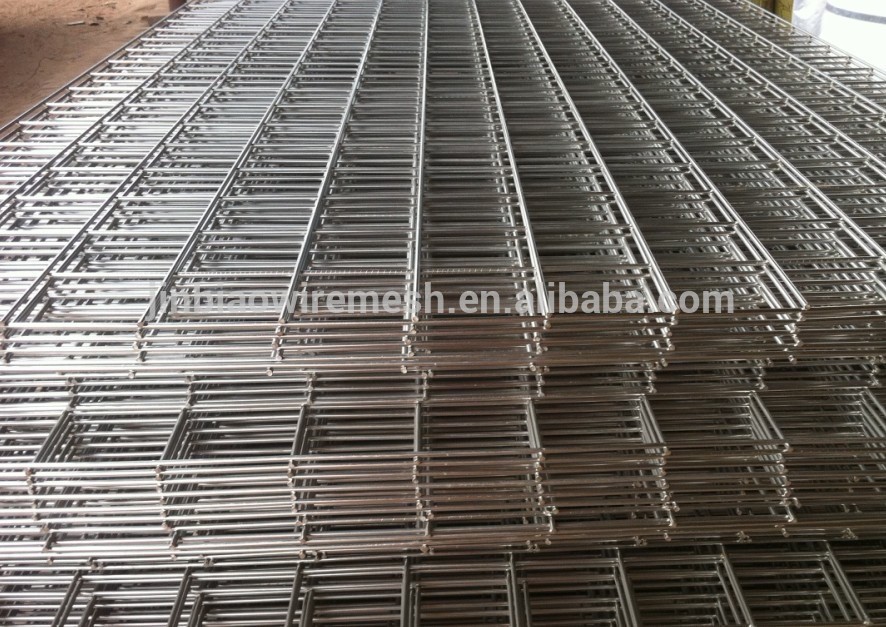

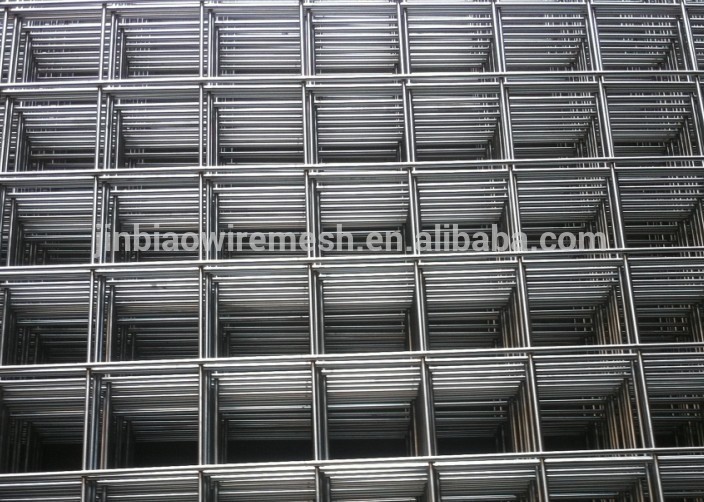

2) For welded wire mesh panels, normally packed by wooden or iron pallet.
3) We can also make the package according to customers' requests.
5.Standard specifications:
Specification List of Welded Wire Mesh | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |

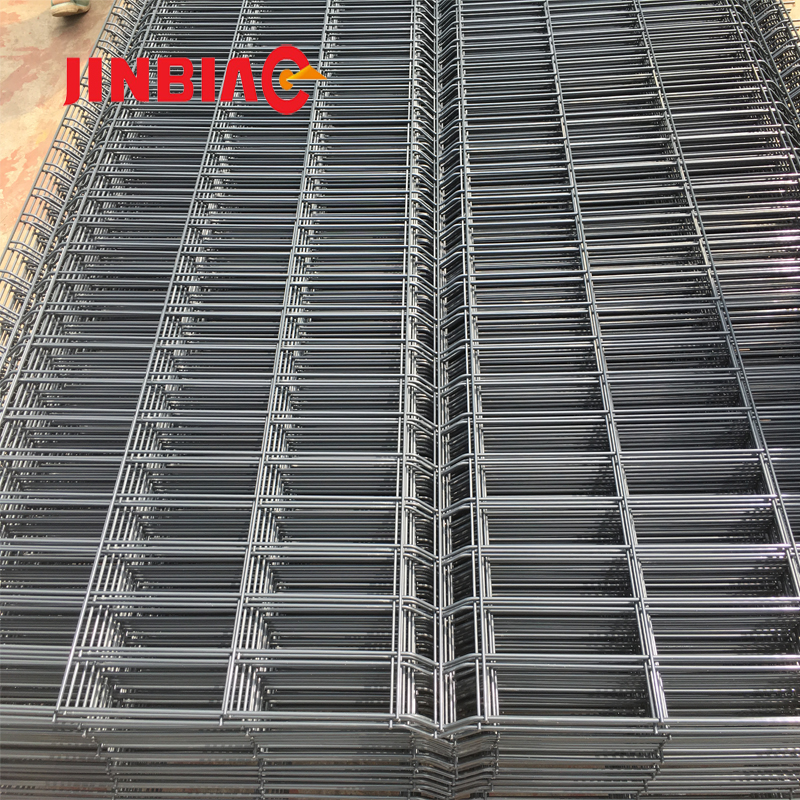

Galvanized Welded Wire Mesh Fence | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit(mm) | |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |

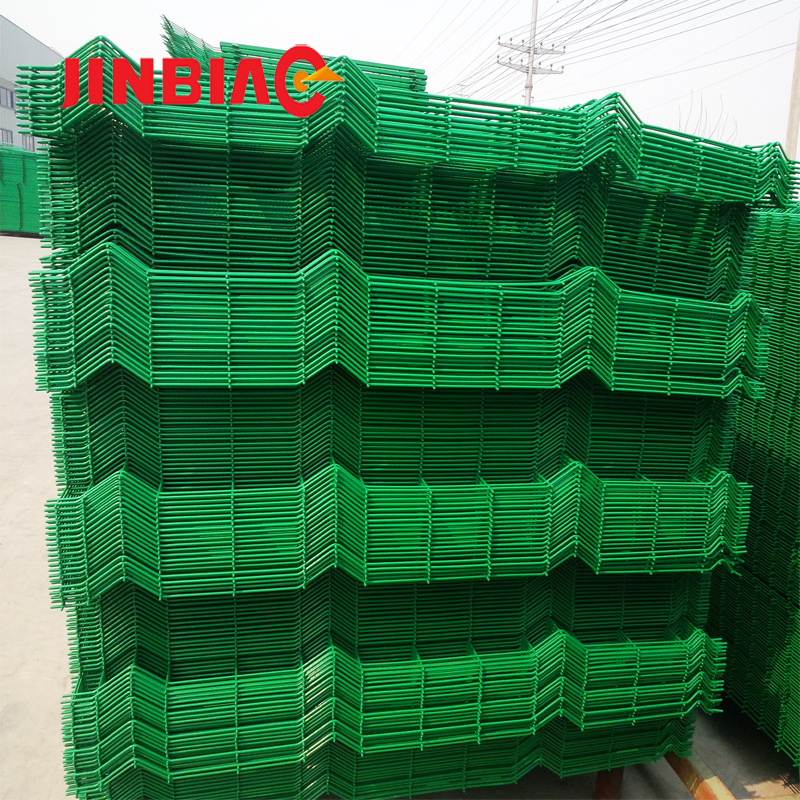

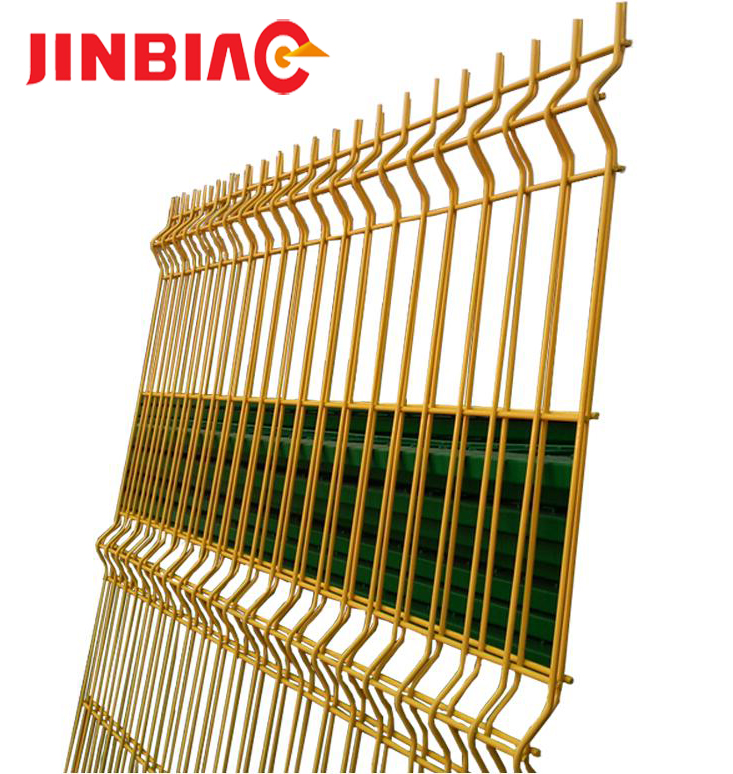

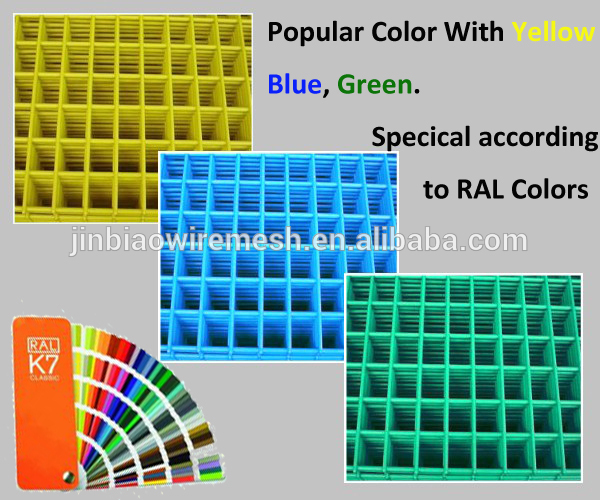

PVC Coated Welded Wire Mesh is made of high quality of welded galvanized iron wire mesh,to be coated with PVC powder by advanced automatic equipments,the coated layer is even strong adhesiveness and bright luster with good anti-corrosive prosperity.Suitable for houses and properties,companies,gardens recreation areas,parks.All kinds of colors can be coated according to customers' special requirements.
PVC Coated Welded Wire Mesh | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Hebei Jinbiao Construction Materials Tech Corp., Ltd. is the biggest wire mesh fence factory in Anping which is the wire mesh base of China.
We have exported to USA, Columbia,Japan, Russia, Holand,Singapore,Dammam,Dubai,Iraq around 20 countries.
With
more than 10 production lines, Hebei Jinbiao Construction Materials
Tech Corp., Ltd. gained very good reputation all over the world.
Production
lines includes: wire drawing machine-cutting machine-electro welding
machine-fold making machine-sand painting machine-galvanized(hot dipped
galvanized)pool-PVC dip coated machine-PVC powder painting machines
Any matter contact us without hesitation. Very welcome to inquire and visit us.
Welcome your inquiry-- Hebei Jinbiao Construction Materials Tech Corp., Ltd. !
