3D Curved Wire Mesh Fencing Panel For Sale jinbiao

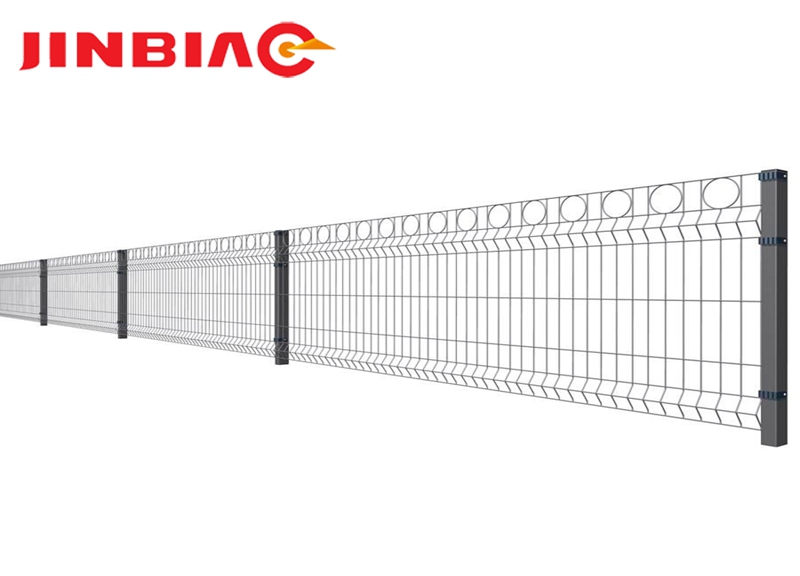

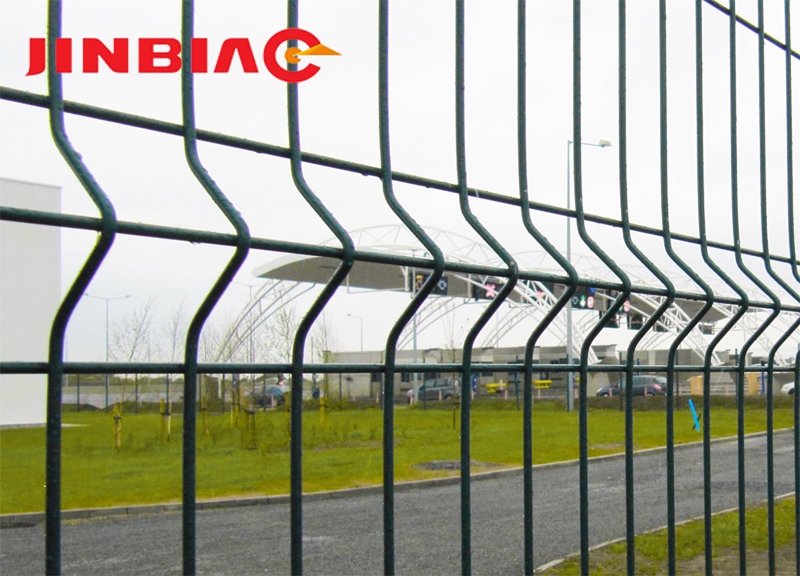

3D Curved Wire Mesh Fencing Panel For Sale

Wire Mesh Fencing Panel Process:

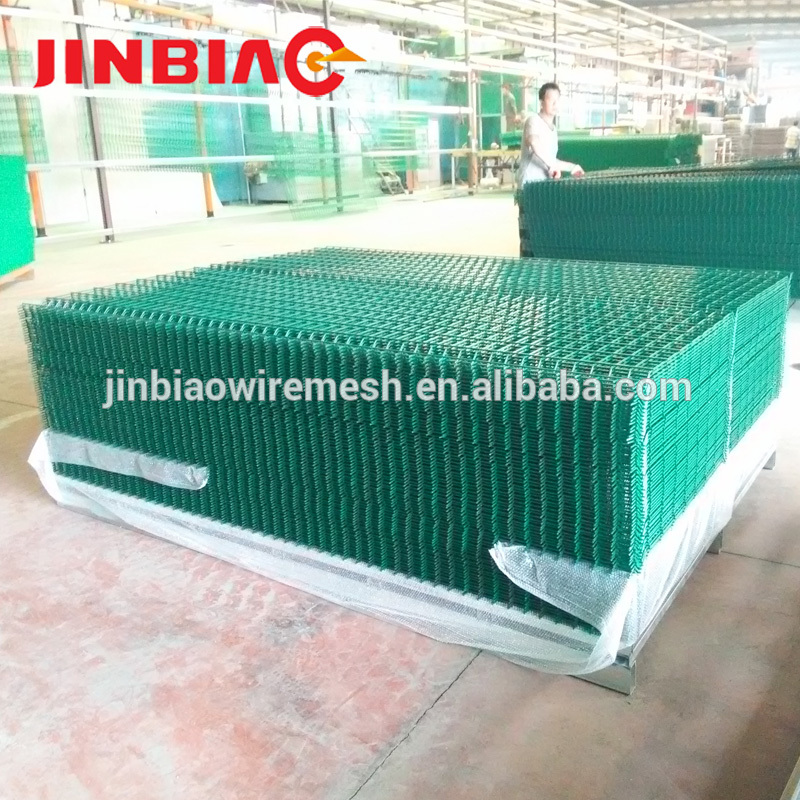

drawing wire---straightening and cutting--Welding--galvanized--Parkerising/Ball blasting--PVC/powder spraying /dipped coating--packaging

Wire Mesh Fencing Panel Characteristics:

high strenght, good steel property, nice and bright appearance, easy to install and maintenance

Wire Mesh Fencing Panel Application:

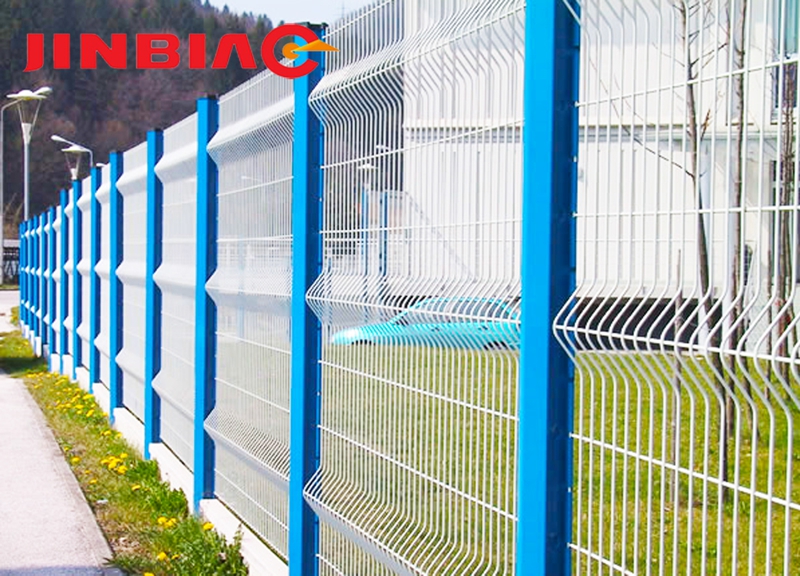

extensively used for partion and protection for garden, municipal, residential area, airport, highway, rialway,etc

Wire Mesh Fencing Panel General specification

1>Wire diameter: 3.0-6.0mm

2>PVC coating thickness: (pvc spraying)0.15-0.2mm; (pvc dipped coat)0.5-1mm

3>Aperture size: 50x100mm, 50 x 150mm, 50 x 200mm, 75 x 150mm

4>Forms of corrosion resistance: electric galvanizied+pvc spraying /pvc dipped coated, hot-dip galvanizied

5>Color: RAL 6005 green or as your custom design

Specifications of Wire Mesh Fencing Panel

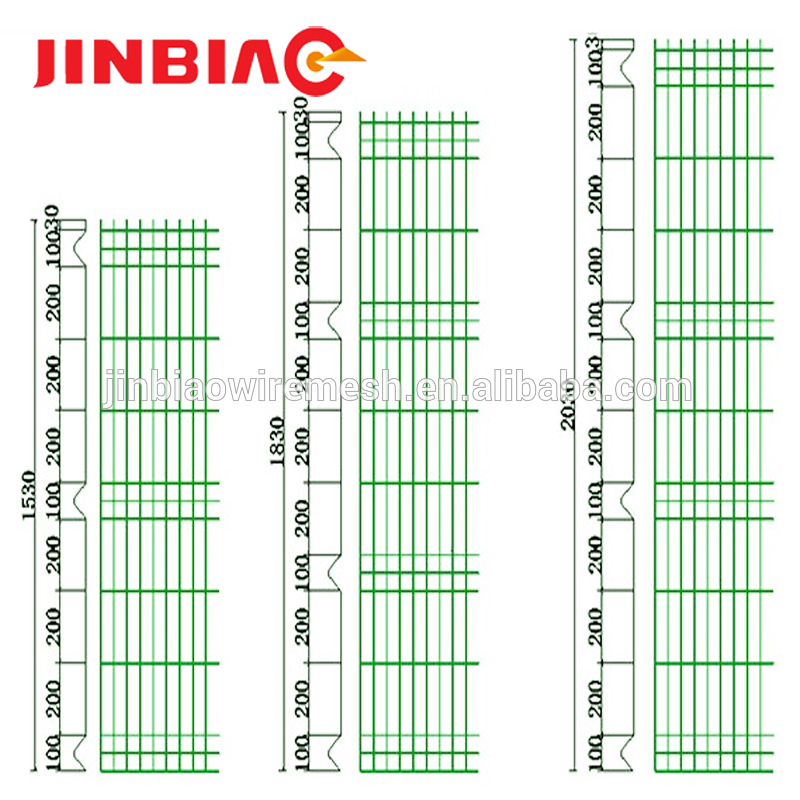

Fence panel specification
Panel size (height x length)	Wire dia	Mesh size	Surface treatment	Folds ( or no folds as your request)
1.03m	3mm-6mm	50x50mm, 50x75mm 50x100mm 50x150mm 50x200mm 55x100mm 75x200mm 60x150mm Or as your request	Electro GI+PVC coated Electro GI+ painting(Spraying) hot-dipped GI only Hot-dipped GI +PVC coated or painting	2
1.23m				2
1.5m				2 or 3
1.53m				2 or 3
1.7m				3
1.73m				3
1.8m				3 or 4
1.93m				3 or 4
2.0m				4
2.03m				4
2.4m				4
